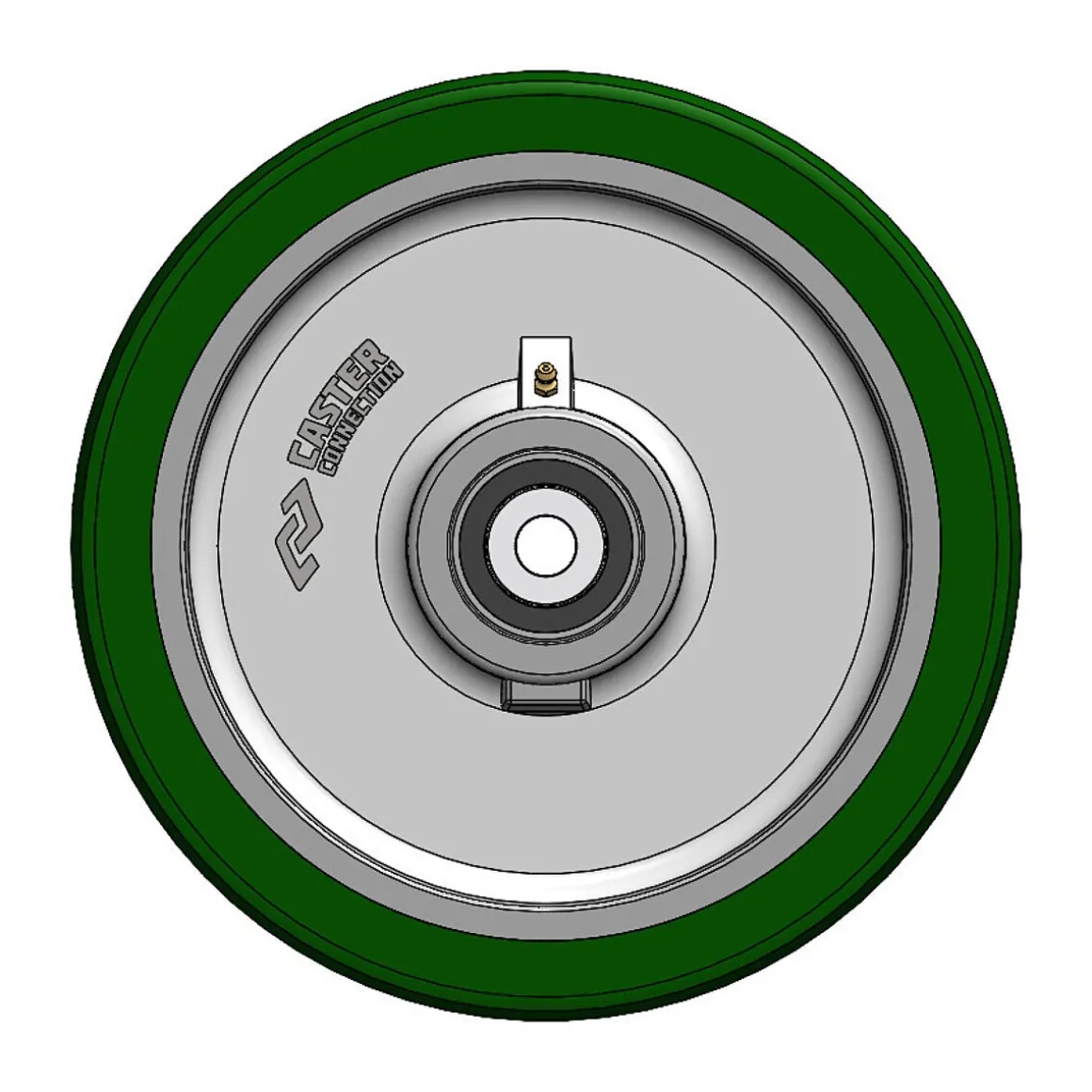

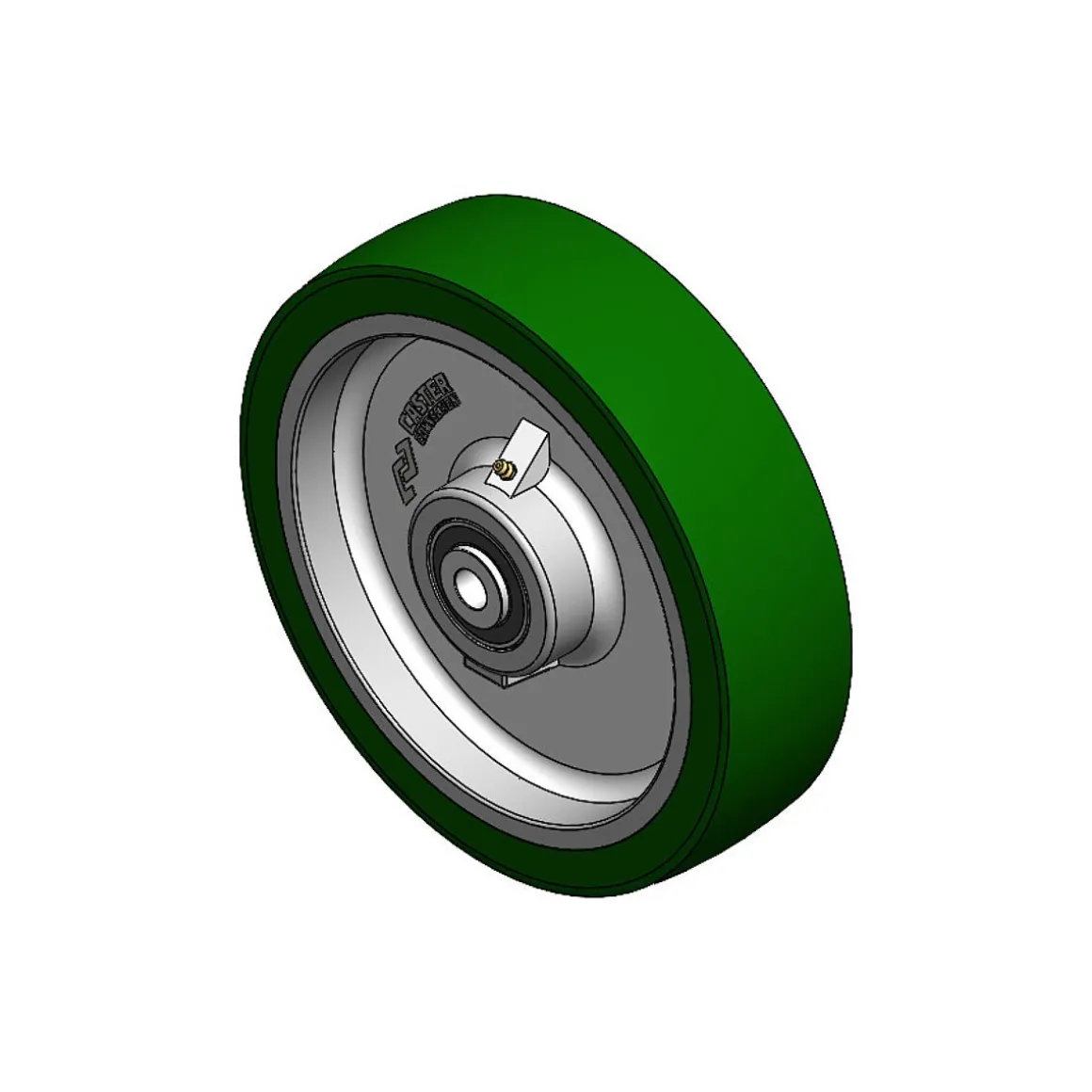

12″ CC Dynamo (70D) Heavy Duty Wheel with Top Hats

• Wheel Diameter

  12″

• Wheel Width

  3″

• Weight Capacity

  7,000 lbs.

• Brand

  CC Dynamo 70D – Caster Connection

• Color

  Green

• Wheel Material

  Polyurethane

• Core Material

  Cast Iron

• Bore Size

  3/4″

• Bearing Type

  6206-RS Ball Bearing

• Hub Length

  3-5/8″

• Lead time to Ship

  3-5 Business Days

• Durometer

  70 Shore D (+/- 3)

• Application

  Manual Push/Pull, Towlines, Ergonomic Concerns

• Environment

  Indoor, Outdoor

• Industry

  Automotive, Automation, Construction

• Ship Weight

  29.8 lbs

WC-70D-012300-40-ID06 is a 12″ CC Dynamo (70D) Heavy Duty Wheel with Top Hats a featuring a weight capacity of 7,000 lbs.

Maximum Hardness and Unyielding Strength

The dense Shore 70 D tread resists deformation under heavy weight, while offering slight compression to handle impact and floor transitions better than rigid materials. While not designed for high-speed or ultra-quiet operation, it excels in power-intensive, slow-speed environments.

CC Dynamo 70D uses a hard 70 Shore D polyurethane tread bonded to a solid cast iron core, creating a wheel built for maximum strength under extreme weight. Its hard tread minimizes compression, giving powered towing and slow-speed AGV systems the stability and load capacity needed for the heaviest industrial applications. While less forgiving than the slightly softer 95 Shore A version, CC Dynamo 70D prioritizes toughness and load support over vibration dampening, making it the choice when maximum carrying power is required.

Built for Heavy Industrial Demands

CC Dynamo 70D is available in 6â€, 8â€, 10â€, and 12†diameters with a 3†width, giving operations the flexibility to match wheel size and strength to their equipment.

Load capacities for each size are:

• 6″— 3″: 2,500 lbs
• 8″— 3″: 3,600 lbs
• 10″— 3″: 5,000 lbs
• 12″— 3″: 7,000 lbs

This ultra-hard 70 Shore D polyurethane tread is permanently bonded to a solid cast iron core for maximum strength under slow-speed towing and AGV operation. CC Dynamo 70D can be paired with Caster Connection’s premium rig options, including the CC Brawn kingpinless rig and the CC Forge forged kingpin rig, while the 6″size is designed for use with the CC Armor rig to maintain proper clearance and support. Directional locks, floor locks, and face contact brakes are fully compatible for added control in powered and tugger-driven systems.
