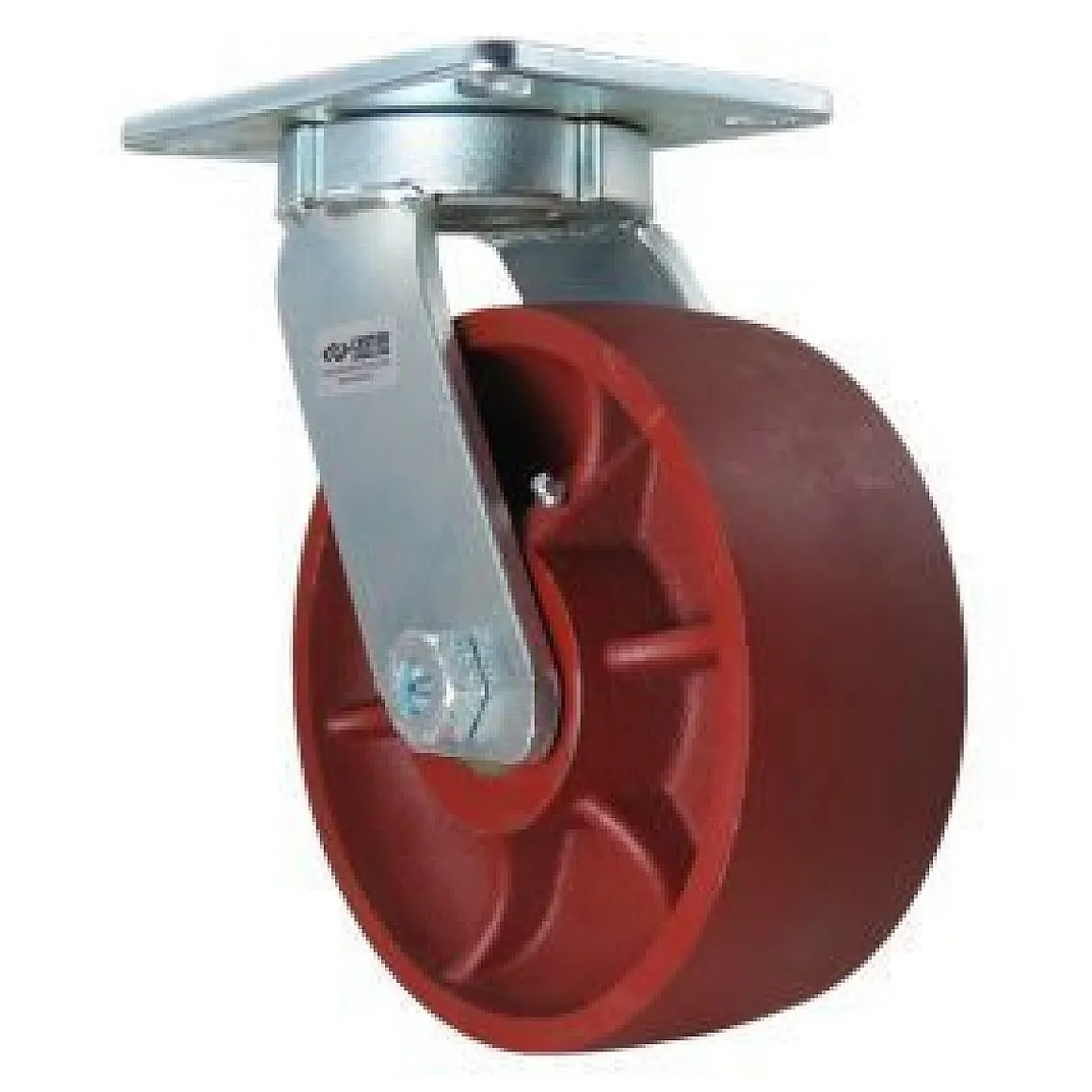

8″ Ductile Steel Kingpinless Swivel Caster

• Wheel Diameter

  8″

• Wheel Width

  3″

• Overall Height

  10-1/2″

• Weight Capacity

  6,000 lbs.

• Color

  Red

• Wheel Configuration

  Single Wheel

• Tread Style

  Crown Tread

• Wheel Material

  Ductile Steel

• Bearing Type

  Roller Bearing

• Caster Type

  Kingpinless Swivel

• Mounting Type

  Top Plate

• Top Plate

  5-1/4″ x 7-1/4″

• Top Plate Bolt Hole Pattern

  3-3/8″ x 5-1/4″ slotted to 4-1/8″ x 6-1/8″

• Mounting Bolt Size

  1/2″

• Lead Time to Ship

  1-2 Weeks

• Swivel Radius

  6-1/2″

• Axle Type

  Zirc Axle

• Fork Finish

  Zinc Plated

• Temperature Range

  -45 to +800 F

• Application

  Manual Push/Pull

• Noise Reduction

  No

• Anti Static

  No

• Dust Cap

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  30.9 lbs

You’re viewing caster SKU 830-S-KP-CD-TP2-OH2

This 8 x 3 Kinpinless Ductile Steel Swivel Caster is an ideal choice for those who need a durable product capable of carrying incredibly heavy weight loads, with little concern for floor preservation. Ductile steel caster wheels are made from a combination of special alloys that give it higher weight capacities than cast iron caster wheels. Additionally, ductile steel caster wheels are more economically friendly than drop-forged wheels. They also feature an extra thick walled, heavy duty core, hub, and tread faces . These wheels will never flat spot which makes them ideal for heavy, stationary loads .

For more info, check out Caster Wheel Types.

Kingpinless caster rigs are different from standard kingpin caster rigs in that the swivel section is held together without a rivet or nut and bolt kingpin. Kingpinless caster rigs are held together by a single row of ball bearings that are contained by a full contact interlocking swivel raceway design. Kingpinless casters are ideal for towing, conveyor, maintenance/utility carts, Towlines, drag lines and more robust applications seen in industrial environments.

For more info, check out Caster Rig Types.
