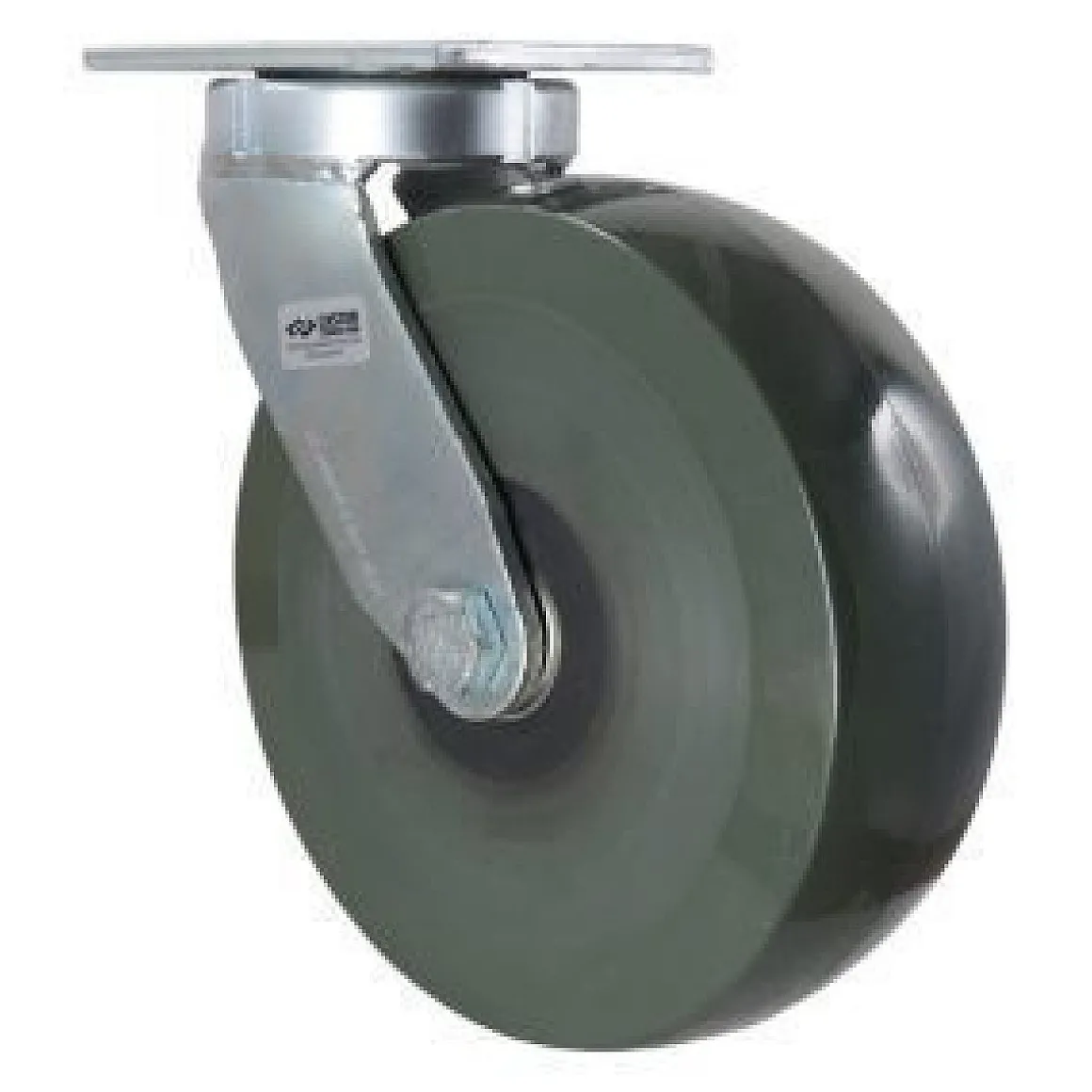

10″ Elastomer Kingpinless Swivel Caster

• Wheel Diameter

  10″

• Wheel Width

  3″

• Overall Height

  11-1/2″

• Weight Capacity

  3,200 lbs.

• Color

  Gray

• Wheel Configuration

  Single Wheel

• Tread Style

  Crown Tread

• Wheel Material

  Elastomer

• Bearing Type

  Sealed Precision Ball Bearing

• Caster Type

  Kingpinless Swivel

• Mounting Type

  Top Plate

• Top Plate

  4-1/2″ x 6-1/4″

• Top Plate Bolt Hole Pattern

  2-7/16″ x 4-15/16″ slotted to 3-3/8″ x 5-1/4″

• Mounting Bolt Size

  1/2″

• Lead Time to Ship

  1-2 Weeks

• Swivel Radius

  8-1/2″

• Axle Type

  Solid Axle

• Durometer

  65 Shore D

• Fork Finish

  Zinc Plated

• Temperature Range

  -50 to +180 F

• Application

  Manual Push/Pull

• Noise Reduction

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  20.25 lbs

You’re viewing caster SKU 1030-S-KP-HU This product is a 10″ Elastomer Kingpinless Swivel Caster with a weight capacity of 3,200 lbs. per caster. This product has an overall height of 11-1/2″.
