S-WW-4V

• Wheel Diameter

  4″

• Wheel Width

  1-1/2″

• Overall Height

  5-5/8″

• Weight Capacity

  550 lbs.

• Wheel Brand

  Hamilton

• Color

  Red

• Wheel Configuration

  Single Wheel

• Tread Style

  V-Groove

• Wheel Material

  Cast Iron

• Bearing Type

  Roller Bearing

• Caster Type

  Kingpin Swivel

• Mounting Type

  Top Plate

• Top Plate

  4″ x 4-1/2″

• Top Plate Bolt Hole Pattern

  2-5/8″ x 3-5/8″ slotted to 3″ x 3″

• Mounting Bolt Size

  3/8″

• Lead Time to Ship

  Varies based on supplier availability

• Fork Finish

  Zinc Plated

• Temperature Range

  -40 to +320 F

• Application

  Tracks

• Noise Reduction

  No

• Groove Width

  7/8″

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  2 lbs

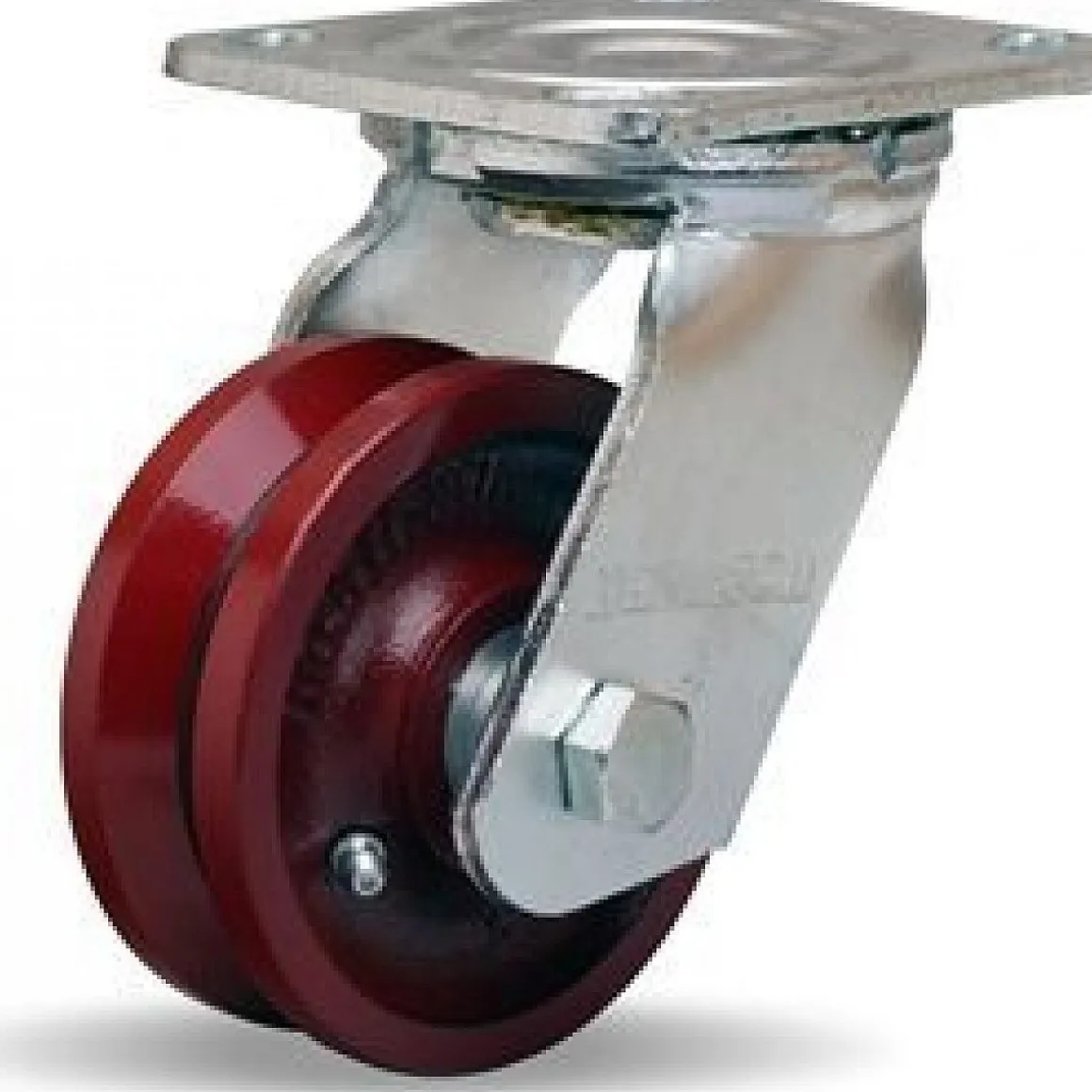

You’re viewing caster SKU S-WW-4V This 4″ x 1-1/2″ Red Hamilton Kingpin Swivel Caster has a weight capacity of 550 lbs. per caster. This product has an overall height of 5-5/8″. Product specs (such as Top Plate Bolt Hole Pattern or Stem Size) can be found on the Specifications tab of this page.
