S-GS-8WNB

• Wheel Diameter

  8″

• Wheel Width

  2″

• Overall Height

  9-1/2″

• Weight Capacity

  1,100 lbs.

• Wheel Brand

  Hamilton

• Color

  White

• Wheel Configuration

  Single Wheel

• Tread Style

  Crown Tread

• Wheel Material

  Nylon

• Bearing Type

  Sealed Precision Ball Bearing

• Caster Type

  Kingpin Swivel

• Mounting Type

  Top Plate

• Top Plate

  4-1/2″ x 6-1/4″

• Top Plate Bolt Hole Pattern

  2-7/16″ x 4-15/16″ slotted to 3-3/8″ x 5-1/4″

• Mounting Bolt Size

  1/2″

• Lead Time to Ship

  Varies based on supplier availability

• Axle Type

  Solid Axle

• Durometer

  75 Shore D

• Fork Finish

  Zinc Plated

• Temperature Range

  -40 to +210 F

• Noise Reduction

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  10 lbs

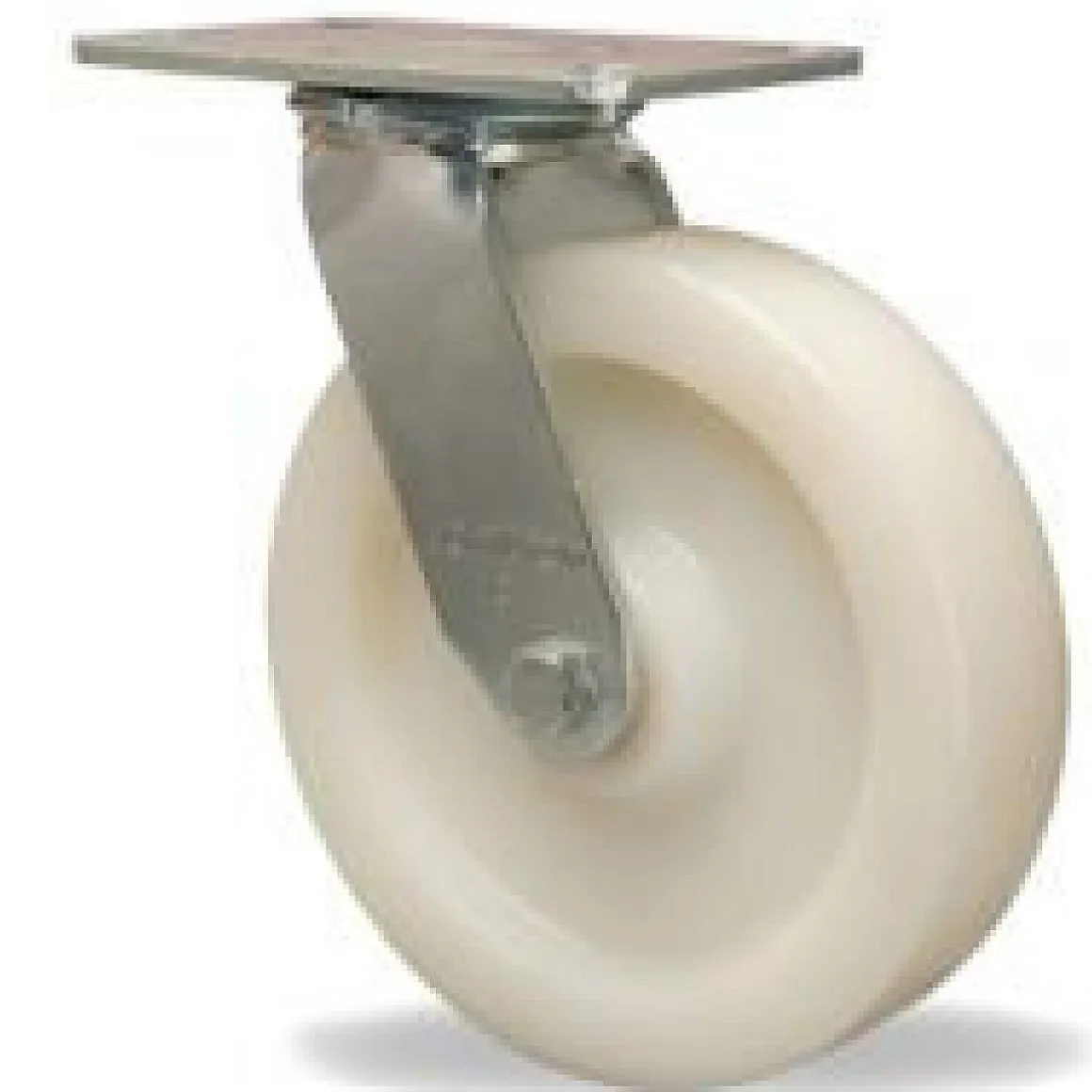

You’re viewing caster SKU S-GS-8WNB This 8″ x 2″ White Hamilton Kingpin Swivel Caster has a weight capacity of 1,100 lbs. per caster. This product has an overall height of 9-1/2″. Product specs (such as Top Plate Bolt Hole Pattern or Stem Size) can be found on the Specifications tab of this page.
