S-FM-10MH

• Wheel Diameter

  10″

• Wheel Width

  2-1/2″

• Overall Height

  11-1/2″

• Weight Capacity

  2,200 lbs.

• Wheel Brand

  Hamilton

• Color

  Red

• Wheel Configuration

  Single Wheel

• Tread Style

  Flat Tread

• Wheel Material

  Cast Iron

• Bearing Type

  Roller Bearing

• Caster Type

  Kingpin Swivel

• Mounting Type

  Top Plate

• Top Plate

  4-1/2″ x 6-1/2″

• Top Plate Bolt Hole Pattern

  2-7/16″ x 4-15/16″ slotted to 3-3/8″ x 5-1/4″

• Mounting Bolt Size

  1/2″

• Lead Time to Ship

  Varies based on supplier availability

• Axle Type

  Solid Axle

• Fork Finish

  Crimson Red

• Temperature Range

  -40 to +320 F

• Noise Reduction

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  31 lbs

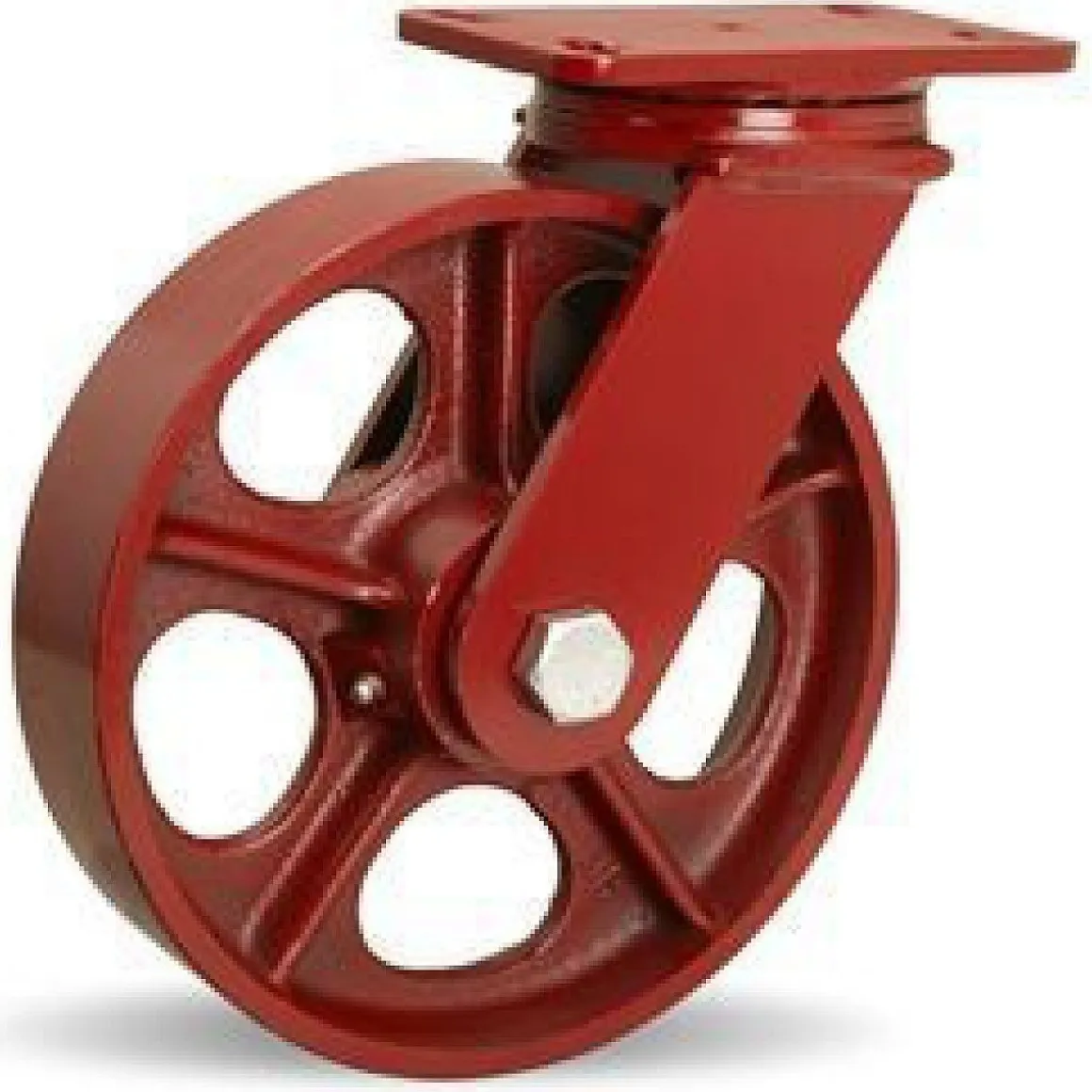

You’re viewing caster SKU S-FM-10MH This 10″ x 2-1/2″ Red Hamilton Kingpin Swivel Caster has a weight capacity of 2,200 lbs. per caster. This product has an overall height of 11-1/2″. Product specs (such as Top Plate Bolt Hole Pattern or Stem Size) can be found on the Specifications tab of this page.
