S-ES-8MH

• Wheel Diameter

  8″

• Wheel Width

  2-1/2″

• Overall Height

  10-1/4″

• Weight Capacity

  2,400 lbs.

• Wheel Brand

  Hamilton

• Color

  Red

• Wheel Configuration

  Single Wheel

• Tread Style

  Crown Tread

• Wheel Material

  Cast Iron

• Bearing Type

  Roller Bearing

• Caster Type

  Kingpin Swivel

• Mounting Type

  Top Plate

• Top Plate

  4-1/2″ x 6-1/2″

• Top Plate Bolt Hole Pattern

  2-7/16″ x 4-15/16″ slotted to 3-3/8″ x 5-1/4″

• Mounting Bolt Size

  1/2″

• Lead Time to Ship

  Varies based on supplier availability

• Axle Type

  Solid Axle

• Fork Finish

  Gray Powder Coated

• Temperature Range

  -40 to +320 F

• Noise Reduction

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  28 lbs

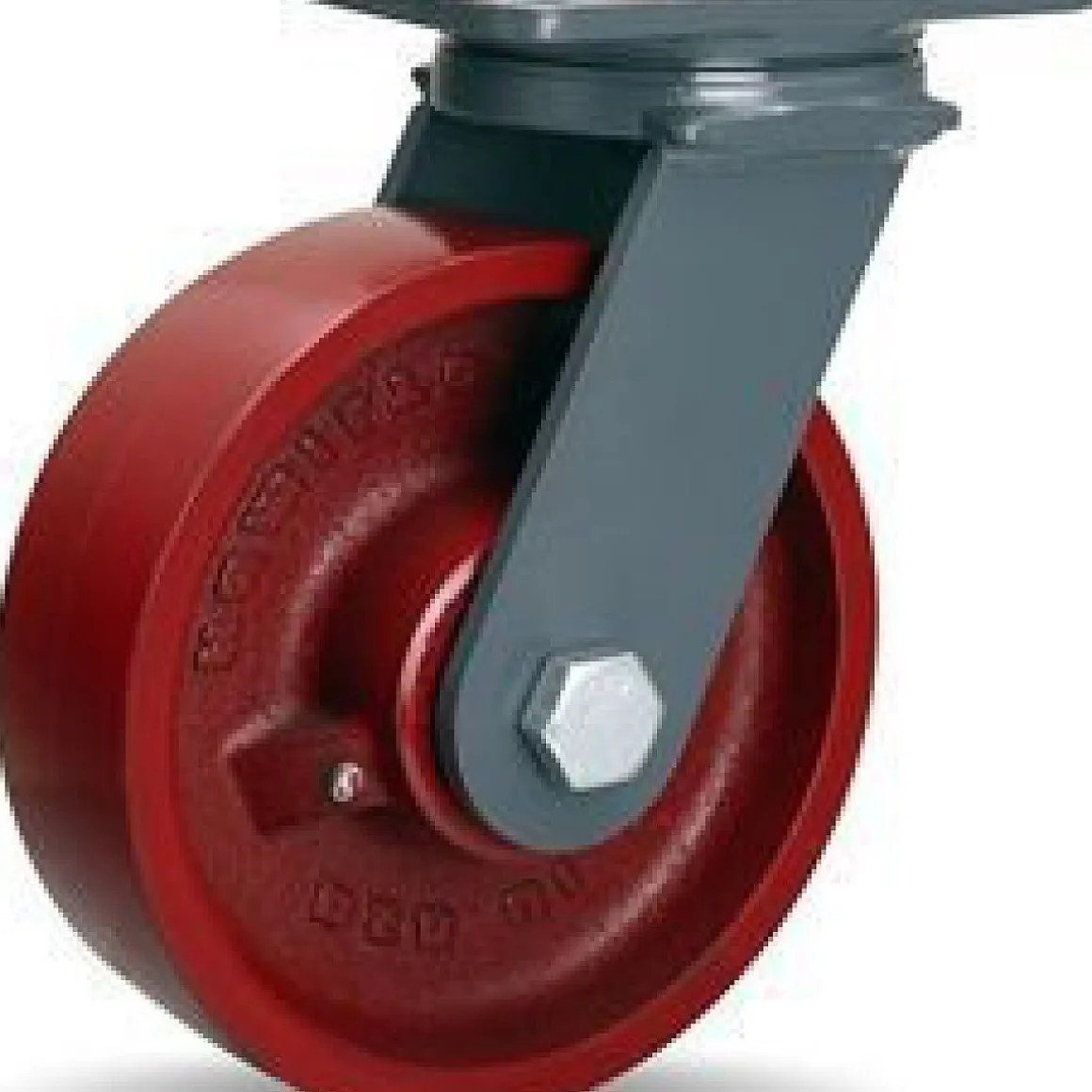

You’re viewing caster SKU S-ES-8MH This 8″ x 2-1/2″ Red Hamilton Kingpin Swivel Caster has a weight capacity of 2,400 lbs. per caster. This product has an overall height of 10-1/4″. Product specs (including lead time) can be found on the Specifications tab of this page.
