S-CH-6FST

• Wheel Diameter

  6″

• Wheel Width

  2-1/2″

• Overall Height

  8″

• Weight Capacity

  3,500 lbs.

• Wheel Brand

  Hamilton

• Color

  Silver

• Wheel Configuration

  Single Wheel

• Tread Style

  Crown Tread

• Wheel Material

  Forged Steel

• Bearing Type

  Tapered Roller Bearing

• Caster Type

  Kingpin Swivel

• Mounting Type

  Top Plate

• Top Plate

  5-1/4″ x 7-1/4″

• Top Plate Bolt Hole Pattern

  3-3/8″ x 5-1/4″ slotted to 4-1/8″ x 6-1/8″

• Mounting Bolt Size

  1/2″

• Lead Time to Ship

  Varies based on supplier availability

• Axle Type

  Solid Axle

• Durometer

  1045 Steel

• Fork Finish

  Crimson Red

• Temperature Range

  -40 to +320 F

• Noise Reduction

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  27 lbs

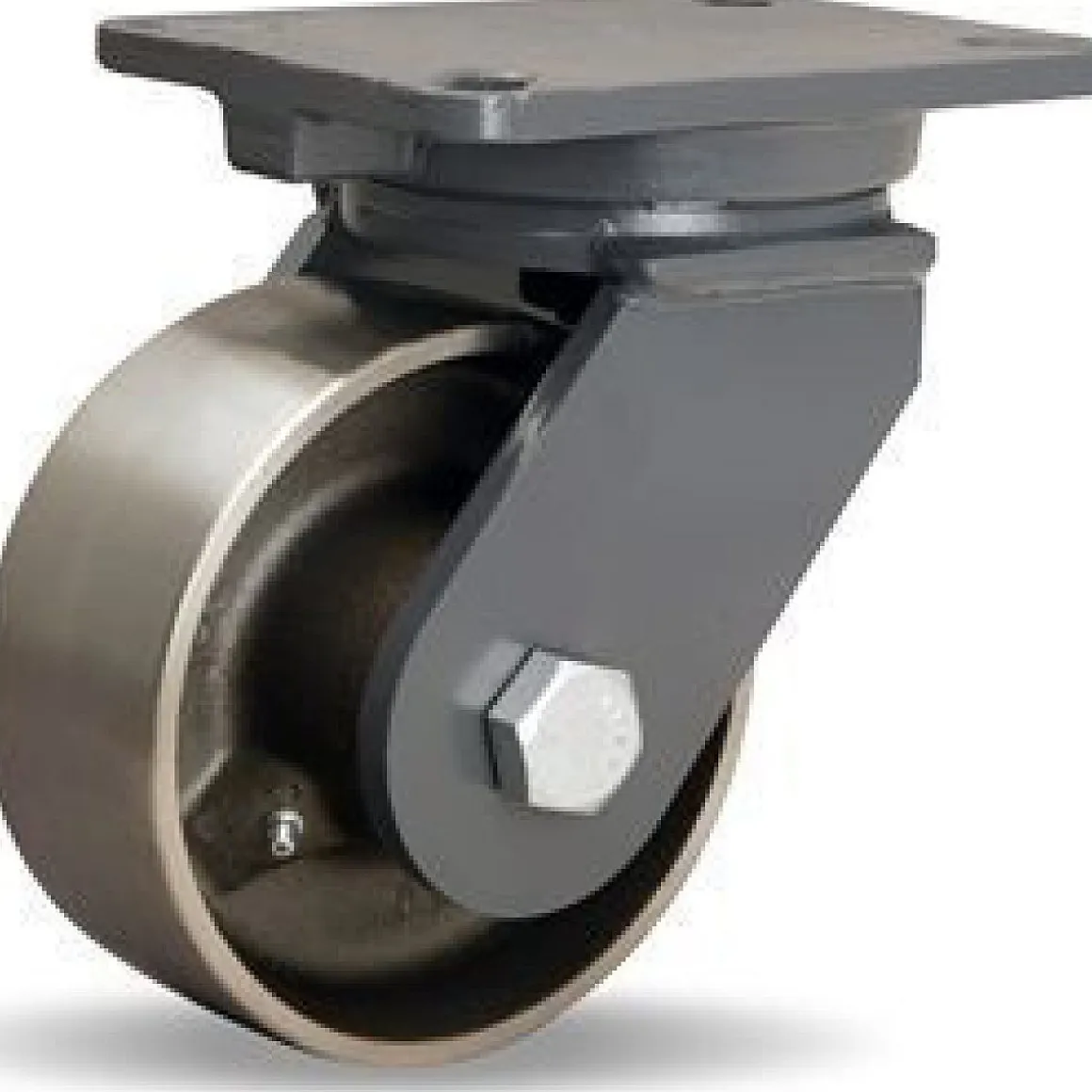

You’re viewing caster SKU S-CH-6FST This 6″ x 2-1/2″ Silver Hamilton Kingpin Swivel Caster has a weight capacity of 3,500 lbs. per caster. This product has an overall height of 8″. Product specs (such as Top Plate Bolt Hole Pattern or Stem Size) can be found on the Specifications tab of this page.
