S-AEZFWH-8NYB-2

• Wheel Diameter

  8″

• Wheel Width

  2″

• Overall Height

  10-1/2″

• Weight Capacity

  1,645 lbs.

• Wheel Brand

  Hamilton

• Color

  Gray

• Wheel Configuration

  Single Wheel

• Tread Style

  Flat Tread

• Wheel Material

  Nylon

• Bearing Type

  Sealed Precision Ball Bearing

• Caster Type

  Spring-Loaded Swivel

• Mounting Type

  Top Plate

• Top Plate

  4″ x 5″

• Top Plate Bolt Hole Pattern

  2-5/8″ x 3-5/8″ slotted to 3″ x 3″

• Mounting Bolt Size

  3/8″

• Lead Time to Ship

  Varies based on supplier availability

• Axle Type

  Solid Axle

• Durometer

  85 Shore D

• Fork Finish

  Gray Powder Coated

• Temperature Range

  -30 to +220 F Continuous, Melting Point +420 F

• Noise Reduction

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  17 lbs

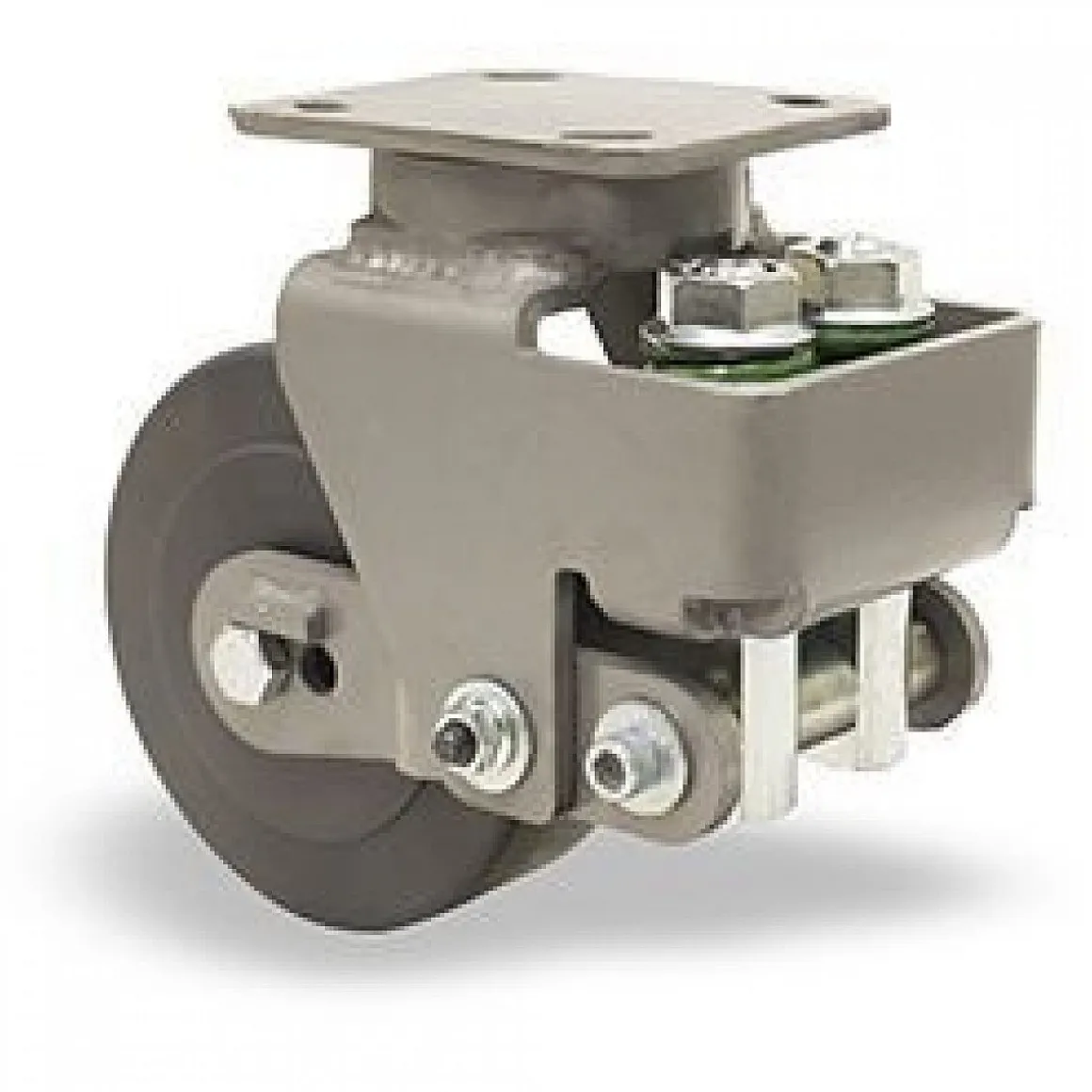

You’re viewing caster SKU S-AEZFWH-8NYB-2 This 8″ x 2″ Gray Hamilton Spring-Loaded Swivel Caster has a weight capacity of 1,645 lbs. per caster. This product has an overall height of 10-1/2″. Product specs (such as Top Plate Bolt Hole Pattern or Stem Size) can be found on the Specifications tab of this page.
