R-WH-FT51T

• Wheel Diameter

  4-15/16″

• Wheel Width

  2-1/8″

• Overall Height

  6-1/8″

• Weight Capacity

  1,500 lbs.

• Wheel Brand

  Hamilton

• Color

  Red

• Wheel Configuration

  Single Wheel

• Tread Style

  Single Flanged

• Wheel Material

  Cast Iron

• Bearing Type

  Tapered Roller Bearing

• Caster Type

  Rigid

• Mounting Type

  Top Plate

• Top Plate

  4″ x 4-1/2″

• Top Plate Bolt Hole Pattern

  2-5/8″ x 3-5/8″ slotted to 3″ x 3″

• Mounting Bolt Size

  3/8″

• Lead Time to Ship

  Varies based on supplier availability

• Temperature Range

  -30 to +320 F

• Application

  Tracks

• Floor Type

  Varied-Indoor

• Noise Reduction

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  15 lbs

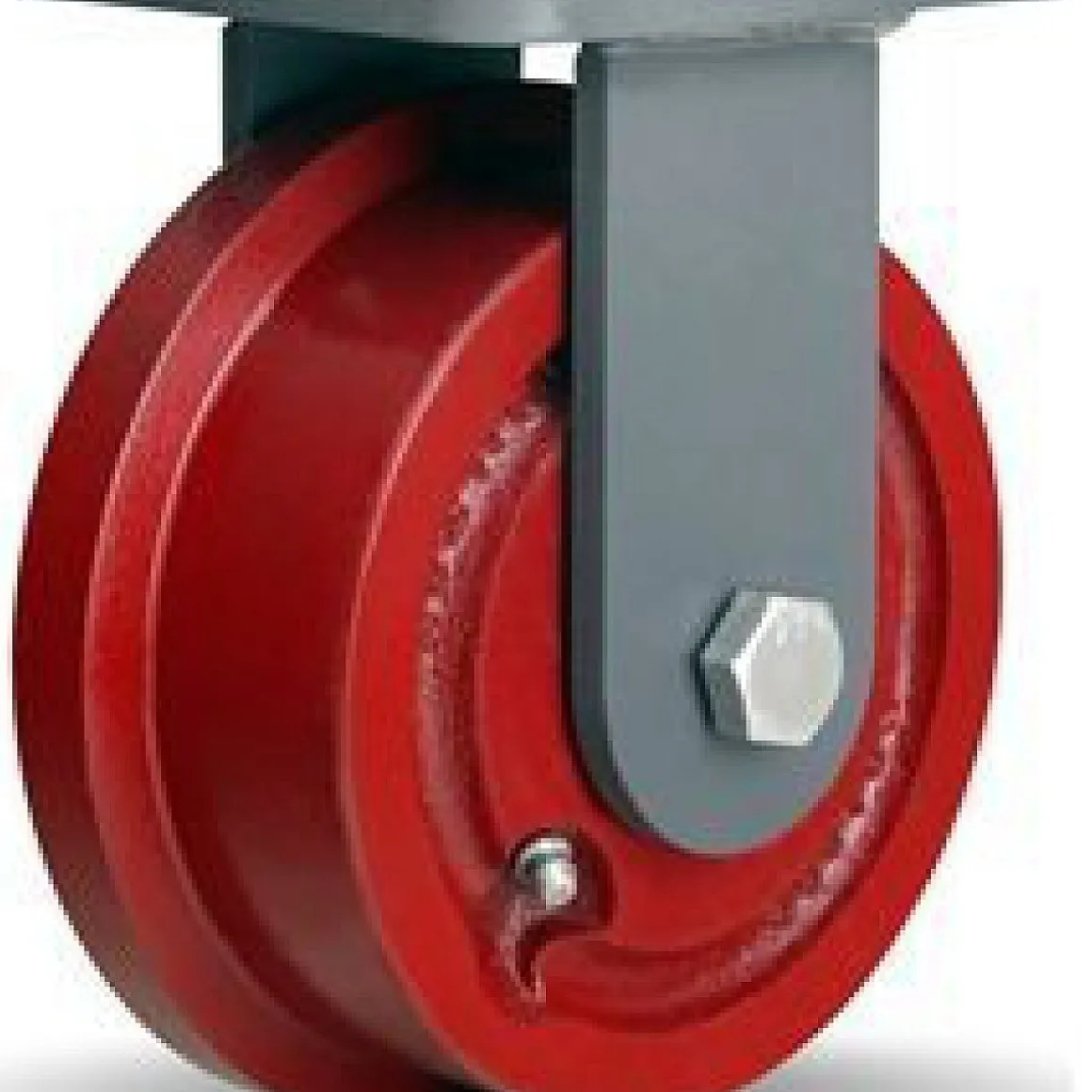

You’re viewing caster SKU R-WH-FT51T This 4-15/16″ x 2-1/8″ Red Hamilton Rigid Caster has a weight capacity of 1,500 lbs. per caster. This product has an overall height of 6-1/8″. Additional product specs can be found on the Specifications tab of this product page.Have questions or want a quote? Our solutions experts are available to help!
