R-MS-6DB

• Wheel Diameter

  6″

• Wheel Width

  2″

• Overall Height

  7-1/2″

• Weight Capacity

  1,200 lbs.

• Wheel Brand

  Hamilton

• Color

  Green

• Wheel Configuration

  Single Wheel

• Tread Style

  Flat Tread

• Wheel Material

  Polyurethane

• Bearing Type

  Sealed Precision Ball Bearing

• Core Material

  Cast Iron

• Caster Type

  Rigid

• Mounting Type

  Top Plate

• Top Plate

  5″ x 5-1/2″

• Top Plate Bolt Hole Pattern

  4″ x 4″ slotted to 4-1/8″ x 4-1/2″

• Mounting Bolt Size

  3/8″

• Lead Time to Ship

  Varies based on supplier availability

• Axle Type

  Solid Axle

• Durometer

  95 Shore A

• Fork Finish

  Zinc Plated

• Temperature Range

  -50 to +200 F Intermittent, 0 to +180 F Continuous

• Application

  Manual Push/Pull

• Noise Reduction

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  13 lbs

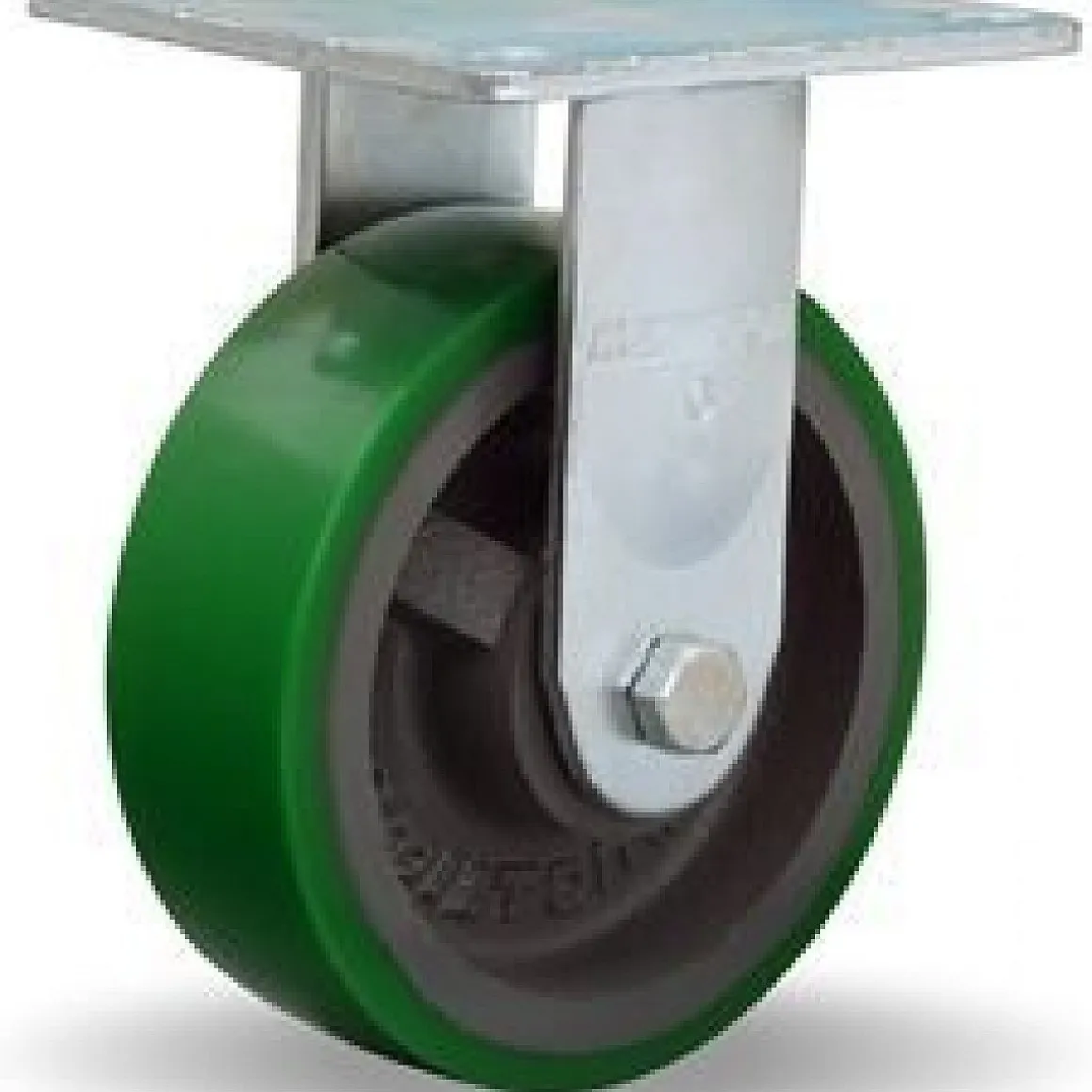

You’re viewing caster SKU R-MS-6DB This 6″ x 2″ Green Hamilton Rigid Caster has a weight capacity of 1,200 lbs. per caster. This product has an overall height of 7-1/2″. Additional product specs can be found on the Specifications tab of this product page. Consult our Caster Education section or contact us for more info!
