R-CH-13MT

• Wheel Diameter

  10″

• Wheel Width

  3″

• Overall Height

  12-1/2″

• Weight Capacity

  2,600 lbs.

• Wheel Brand

  Hamilton

• Color

  Red

• Wheel Configuration

  Single Wheel

• Tread Style

  Crown Tread

• Wheel Material

  Cast Iron

• Bearing Type

  Tapered Roller Bearing

• Caster Type

  Rigid

• Mounting Type

  Top Plate

• Top Plate

  5-1/4″ x 7-1/4″

• Top Plate Bolt Hole Pattern

  3-3/8″ x 5-1/4″ slotted to 4-1/8″ x 6-1/8″

• Mounting Bolt Size

  1/2″

• Lead Time to Ship

  Varies based on supplier availability

• Axle Type

  Solid Axle

• Fork Finish

  Crimson Red

• Temperature Range

  -40 to +320 F

• Application

  Manual Push/Pull

• Noise Reduction

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  31 lbs

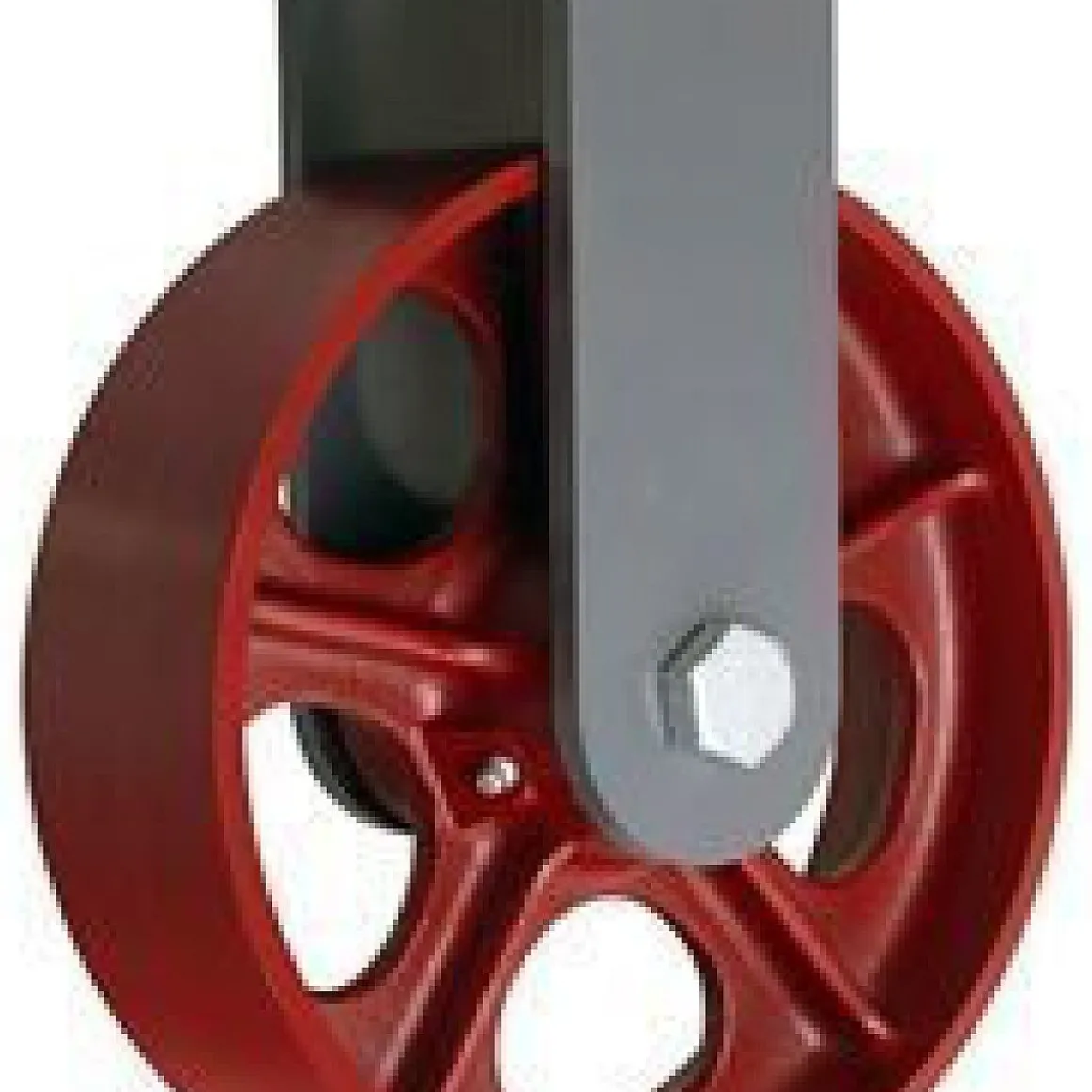

You’re viewing caster SKU R-CH-13MT This 10″ x 3″ Red Hamilton Rigid Caster has a weight capacity of 2,600 lbs. per caster. This product has an overall height of 12-1/2″. Product specs (including lead time) can be found on the Specifications tab of this page. Consult our Caster Education section or contact us for more info!
