CCARMOR-1030S-DS

• Wheel Diameter

  10″

• Wheel Width

  1/2″

• Overall Height

  11-1/2″

• Weight Capacity

  2,400 lbs.

• Wheel Brand

  Durable

• Color

  Maroon

• Wheel Configuration

  Single Wheel

• Tread Style

  Flat Tread

• Wheel Material

  Ductile Steel

• Caster Type

  Kingpinless Swivel

• Mounting Type

  Top Plate

• Top Plate

  4-1/2″ x 6-1/4″

• Top Plate Bolt Hole Pattern

  2-7/16″ x 4-15/16″ slotted to 3-3/8″ x 5-1/4″

• Mounting Bolt Size

  1/2″

• Lead Time to Ship

  3-5 Business Days

• Swivel Radius

  7.5

• Axle Type

  Zirc Axle

• Fork Finish

  Zinc Plated

• Temperature Range

  -45 to +800 F

• Application

  Manual Push/Pull

• Noise Reduction

  No

• Anti Static

  No

• Dust Cap

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  24.2 lbs

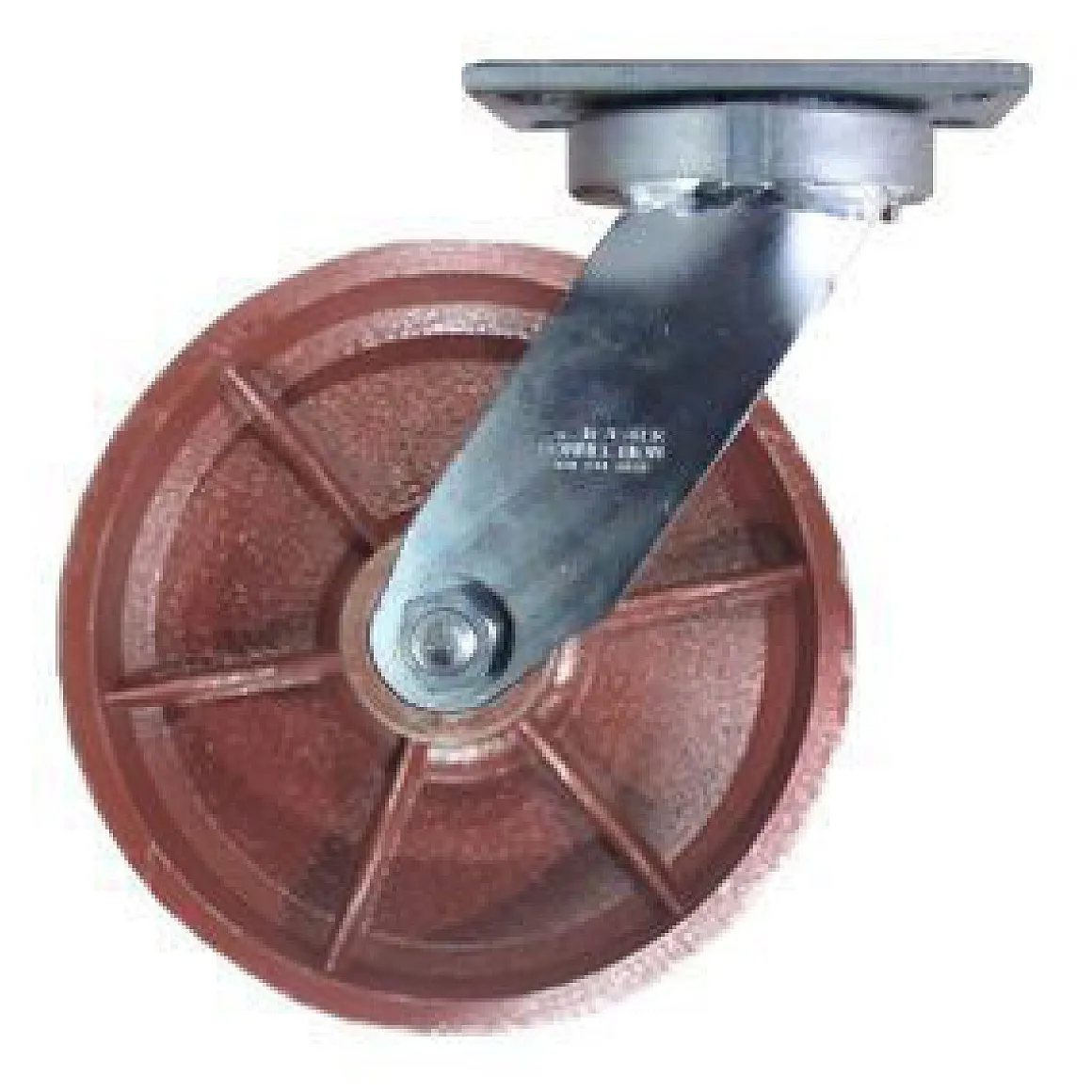

You’re viewing caster SKU CCARMOR-1030S-DS

This 10 x 3 Kingpinless Ductile Steel Swivel Caster is an ideal choice for those who need a durable product capable of carrying incredibly heavy weight loads, with little concern for floor preservation. Ductile steel caster wheels are made from a combination of special alloys that give it higher weight capacities than cast iron caster wheels. Additionally, ductile steel caster wheels are more economically friendly than drop-forged wheels. They also feature an extra thick walled, heavy duty core, hub, and tread faces . These wheels will never flat spot which makes them ideal for heavy, stationary loads .

Kingpinless caster rigs are different from standard kingpin caster rigs in that the swivel section is held together without a rivet or nut and bolt kingpin. Kingpinless caster rigs are held together by a single row of ball bearings that are contained by a full contact interlocking swivel raceway design. Kingpinless casters are ideal for towing, conveyor, maintenance/utility carts, Towlines, drag lines and more robust applications seen in industrial environments.
