CCARMOR-1030S-979-7

• Wheel Diameter

  10″

• Wheel Width

  1/2″

• Overall Height

  11-1/2″

• Weight Capacity

  2,400 lbs.

• Wheel Brand

  Durable

• Color

  Red

• Wheel Configuration

  Single Wheel

• Tread Style

  Flat Tread

• Wheel Material

  Polyurethane

• Core Material

  Steel

• Caster Type

  Kingpinless Swivel

• Mounting Type

  Top Plate

• Top Plate

  4-1/2″ x 6-1/4″

• Top Plate Bolt Hole Pattern

  2-7/16″ x 4-15/16″ slotted to 3-3/8″ x 5-1/4″

• Mounting Bolt Size

  1/2″

• Lead Time to Ship

  3-5 Business Days

• Swivel Radius

  7.5

• Axle Type

  Zirc Axle

• Durometer

  95 Shore A (+/- 5)

• Fork Finish

  Zinc Plated

• Temperature Range

  -40 to +180 F

• Application

  Manual Push/Pull

• Environment

  Varied

• Industry

  Aerospace, Automotive, Distribution, Engineering, Machine Shop, Manufacturing, Warehouse

• Noise Reduction

  No

• Anti Static

  No

• Dust Cap

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  27.57 lbs

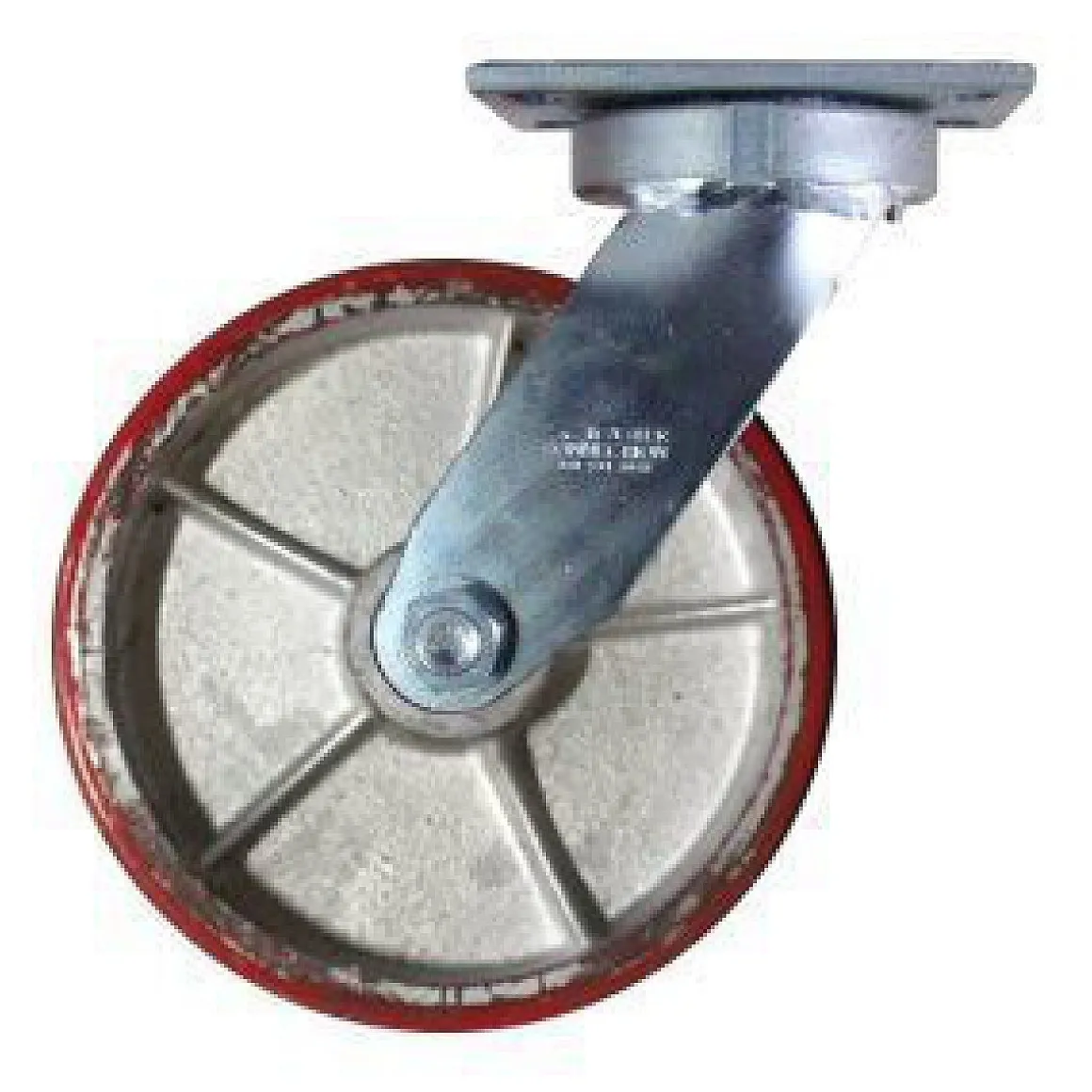

You’re viewing caster SKU CCARMOR-1030S-979-7

This 10″ x 3″ Kingpinless Polyurethane on Steel Swivel Caster features a weight capacity of 2,400 lbs. The 95 Shore A polyurethane elastomer is chemically bonded to a semi steel wheel core and has an operating temperature range of -40 to +180° Fahrenheit. Polyurethane on steel wheels offer high weight capacities while providing good floor protection, and works well in both indoor and outdoor environments. The wheel core can rust when wet, so this wheel is not recommended for applications which operate where water is present.

For more info, check out Caster Wheel Types.

Kingpinless caster rigs are different from standard kingpin caster rigs in that the swivel section is held together without a rivet or nut and bolt kingpin. Kingpinless caster rigs are held together by a single row of ball bearings that are contained by a full contact interlocking swivel raceway design. Kingpinless casters are ideal for towing, conveyor, maintenance/utility carts, Towlines, drag lines and more robust applications seen in industrial environments.

For more info, check out Caster Rig Types.
