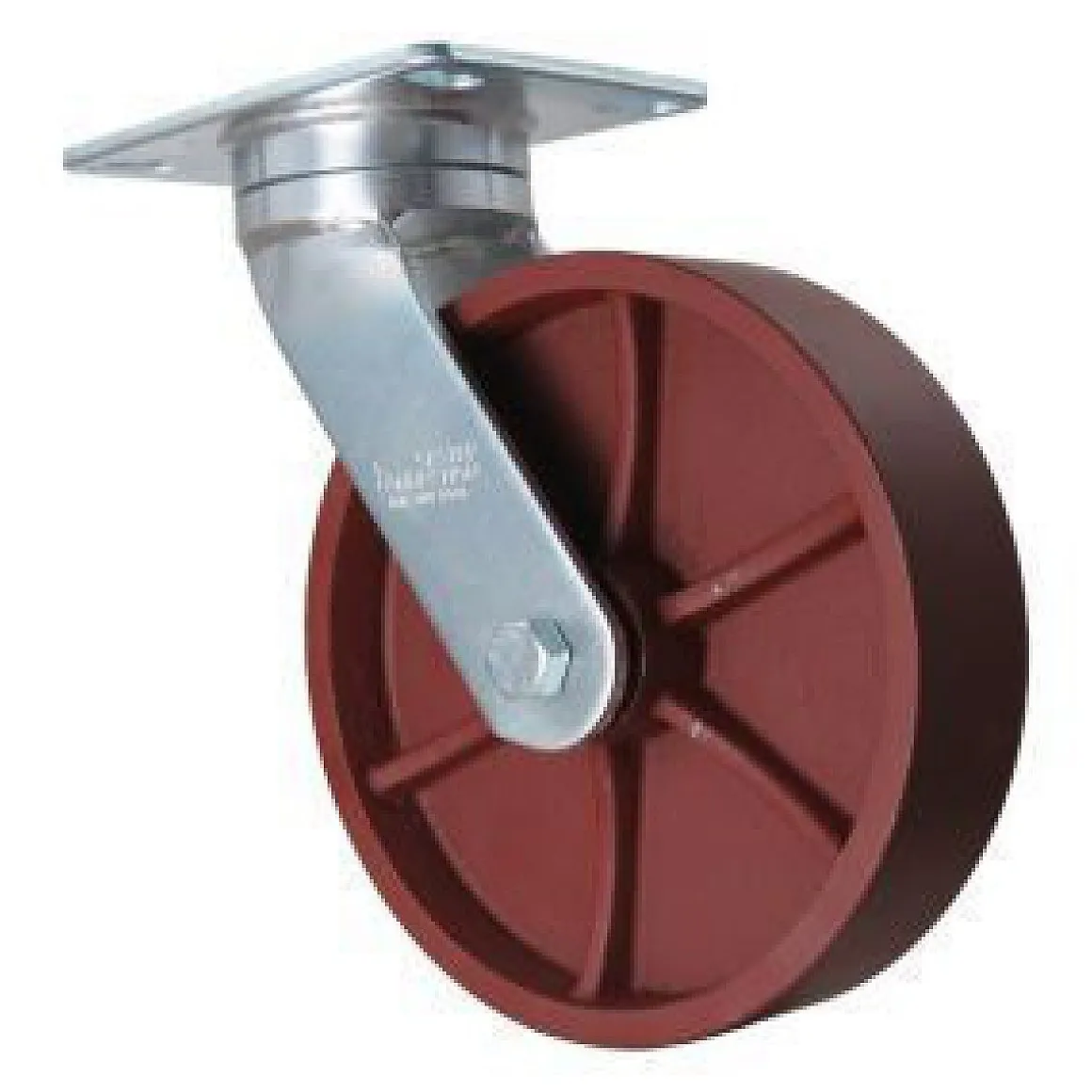

8″ Ductile Steel Maintenance-Free Swivel Caster

• Wheel Diameter

  8″

• Wheel Width

  2″

• Overall Height

  10-1/8″

• Weight Capacity

  2,000 lbs.

• Color

  Red

• Wheel Configuration

  Single Wheel

• Tread Style

  Flat Tread

• Wheel Material

  Ductile Steel

• Caster Type

  Maintenance-Free Swivel

• Mounting Type

  Top Plate

• Top Plate

  4-1/2″ x 6-1/4″

• Top Plate Bolt Hole Pattern

  2-7/16″ x 4-15/16″ slotted to 3-3/8″ x 5-1/4″

• Mounting Bolt Size

  1/2″

• Lead Time to Ship

  3-5 Business Days

• Swivel Radius

  6.25″

• Fork Finish

  Zinc Plated

• Temperature Range

  -45 to +800 F

• Application

  Manual Push/Pull

• Noise Reduction

  No

• Anti Static

  No

• Dust Cap

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  15.7 lbs

You’re viewing caster SKU CCPEAK-EMF-8S-DS-TP2-OH2-EXT

This is a 8″ x 2″ ductile steel caster wheel paired with Caster Connections CC Peak EMF maintenance-free extended swivel lead caster rig.

The CC Peak EMF offers you all of the features of the CC Peak but will not stand up to the same amount of weight or stress that the CC Peak will handle. You will also experience a 10% to 15% reduction in push/pull forces with the CC Peak over the EMF version because of the larger bearing found in the CC Peak. The CC Peak EMF can still be used in towline applications, but the CC Peak is always a better choice when you want higher weights at higher speeds or an even better push/pull experience.

Not only does the CC Peak function incredibly well, it is completely maintenance-free. When the CC Peak is made, there is an initial greasing of the bearings, but after that, you do not ever have to think about it. You buy the rig, put it on your application, and simply enjoy the benefits it provides, without adding any grease over the life of the product. So, essentially, youre dealing with no downtime for maintenance. Add to this the strength and performance the CC Peak offers, and you have everything a caster rig should be: maintenance-free, absurdly smooth, and bulletproof.

• Tremendous durability
• Completely maintenance-free
• Great versatility for towlines and manual applications
• High value
• Incredible push/pull qualities
