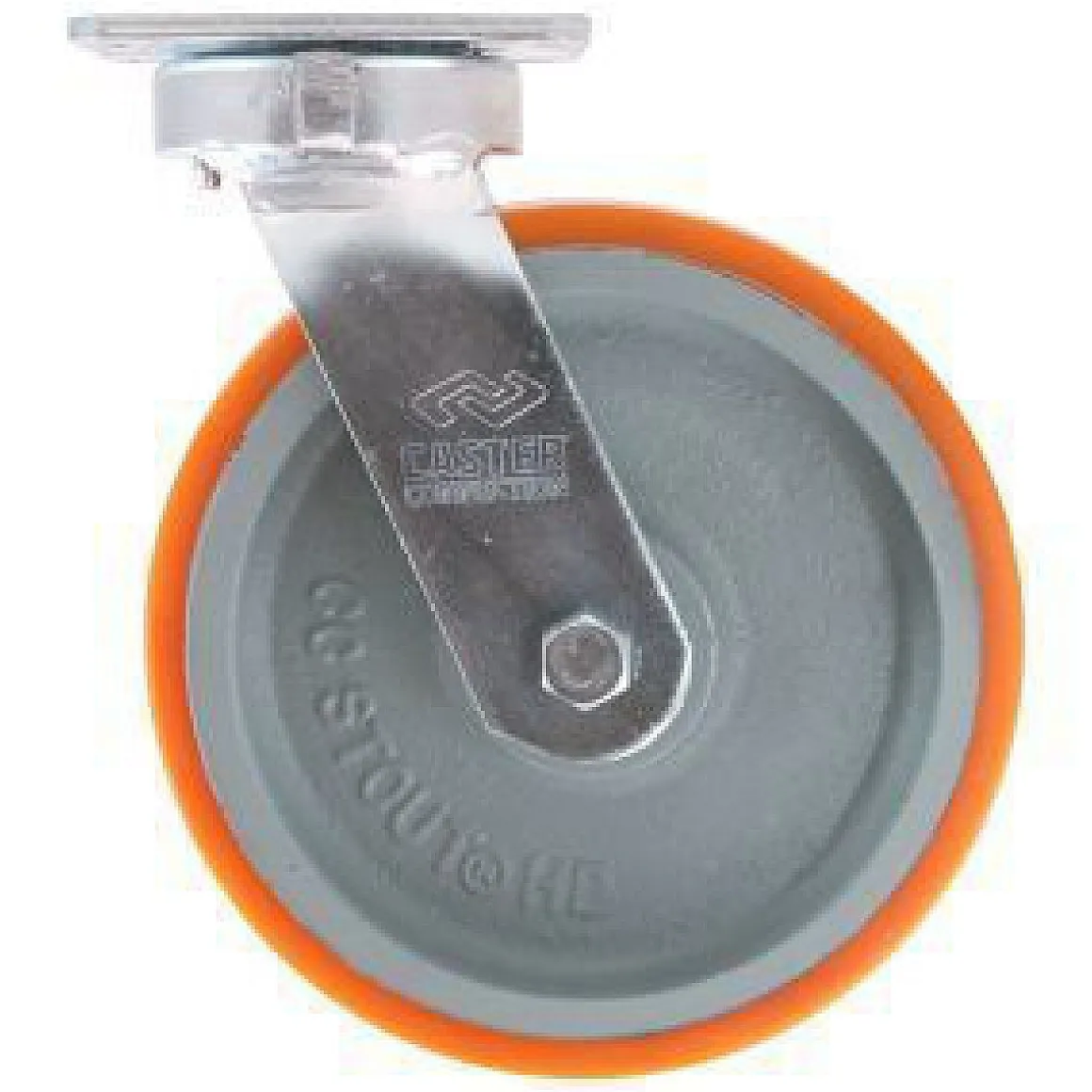

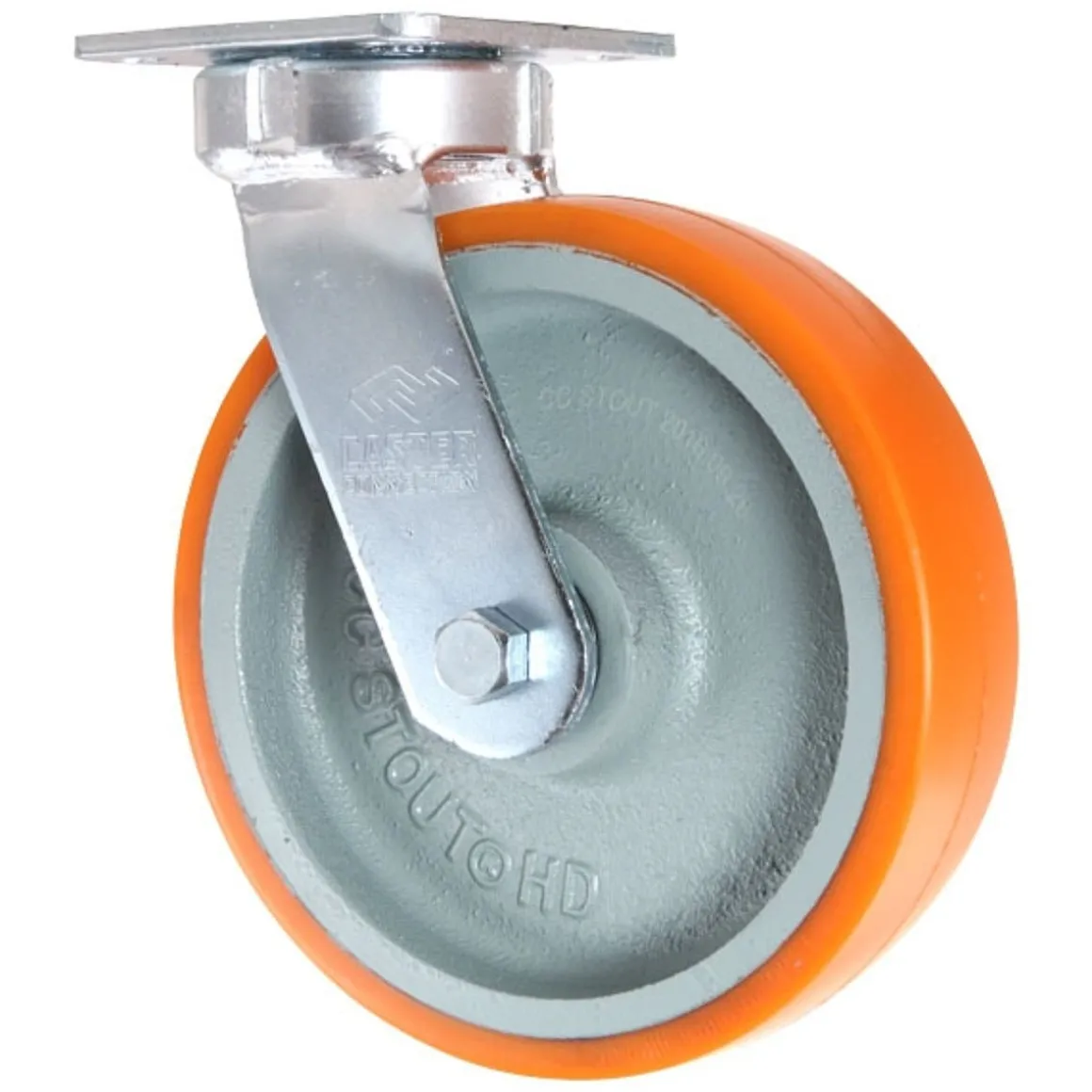

8″ CC Stout HD Kingpinless Swivel Caster

• Wheel Diameter

  8″

• Wheel Width

  2″

• Overall Height

  10-1/8″

• Weight Capacity

  1,750 lbs.

• Wheel Brand

  CC Stout HD – Caster Connection

• Color

  Orange

• Wheel Configuration

  Single Wheel

• Tread Style

  Crown Tread

• Wheel Material

  Polyurethane

• Bearing Type

  6203-RS Ball Bearing

• Core Material

  Cast Iron

• Caster Type

  Kingpinless Swivel

• Mounting Type

  Top Plate

• Top Plate

  4″ X 4-1/4″

• Mounting Bolt Size

  3/8″

• Lead Time to Ship

  3-5 Business Days

• Swivel Radius

  6

• Axle Type

  Solid Axle

• Durometer

  87 Shore A (+/- 5)

• Fork Finish

  Zinc Plated

• Temperature Range

  -25 to +180 F

• Application

  Manual Push/Pull

• Environment

  Clean, Debris, Delicate Flooring, Indoor, Limited Space for Maneuverability, Low Noise Necessary, Medical, Outdoor, Safety Necessary, Thresholds, Towlines, Weld Slag and/or Metal Chips, Metal Chips, Push/Pull Reduction, Safety

• Floor Type

  Varied-Indoor

• Industry

  Aerospace, Agriculture, Automotive, Engineering, Manufacturing, Material Handling, Metal Fabrication, Industrial/Mechanical, Machinery

• Noise Reduction

  No

• Dust Cap

  No

• Ship Weight

  11.05 lbs

You’re viewing caster SKU CC-2351-800200-40-T1

This kingpinless caster featuring an 8″ x 2″ orange CC Stout HD wheel is an elite caster choice for those who need a strong, durable, quiet and incredibly ergonomic caster. Using a slightly-crowned flat-tread design, the CC Stout line offers the same excellent mobility and ergonomics as the industry-changing CC Apex wheel. The CC Stout HD series features a thicker polyurethane tread and a thicker iron core than the original CC Stout wheel.

The benefits of the CC Stout include:

¢ High weight capacity
¢ Ergonomic and easily maneuverable
¢ Debris dispelling capability
¢ Holds up under rigorous conditions
¢ Reduces downtime and maintenance costs
¢ Painted iron core to protect structural integrity

The CC Stout is a great option for applications involving manual pushing and pulling, as well as towing by various vehicles. Because the CC Stout features the same polyurethane as the CC Apex, it offers an added boost to pushing and pulling and maintains a great grip on flooring during towing.

Kingpinless caster rigs are different from standard kingpin caster rigs in that the swivel section is held together without a rivet or nut and bolt kingpin. Kingpinless caster rigs are held together by a single row of ball bearings that are contained by a full contact interlocking swivel raceway design. Kingpinless casters are ideal for towing, conveyor, maintenance/utility carts, Towlines, drag lines and more robust applications seen in industrial environments.

For more info, check out Caster Rig Types.
