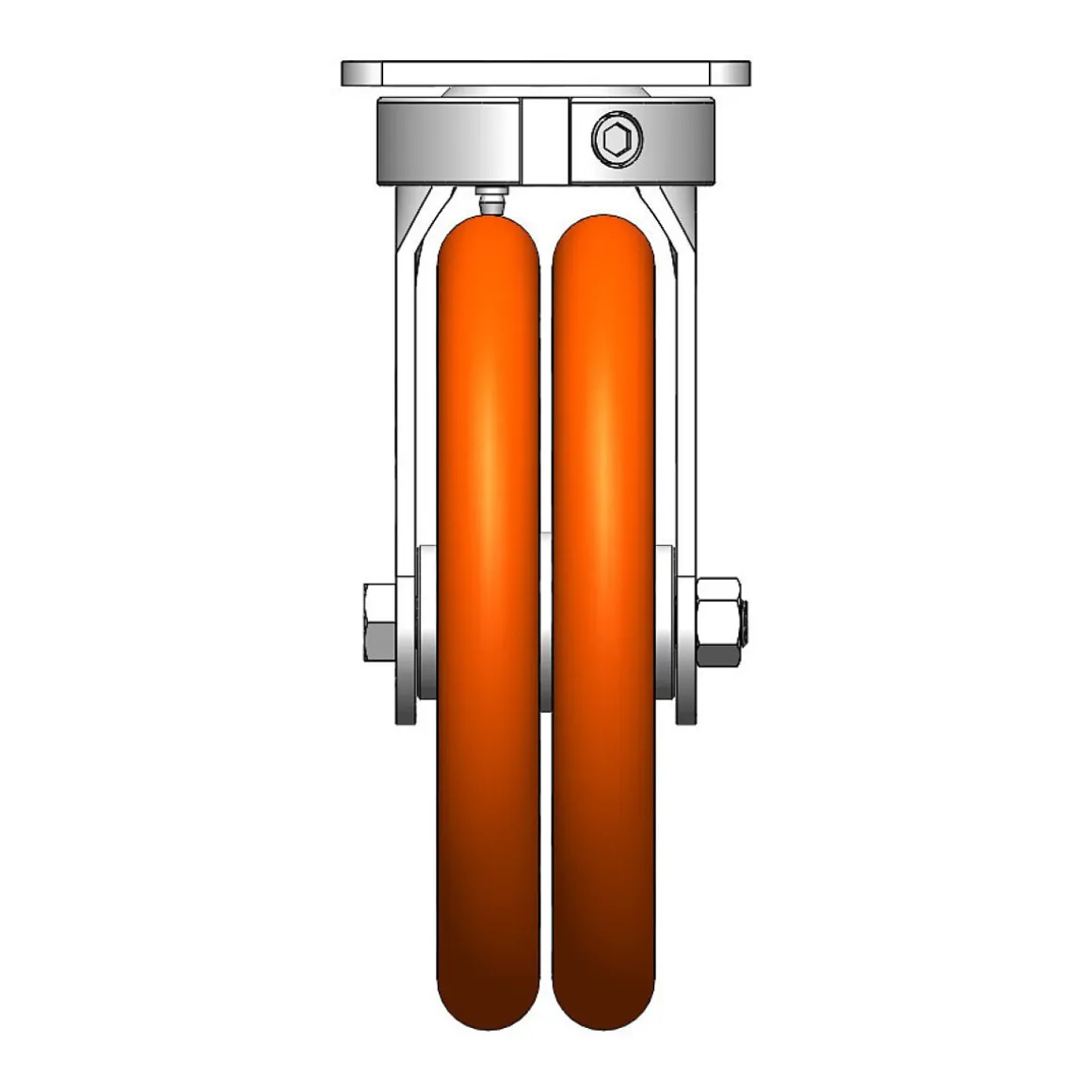

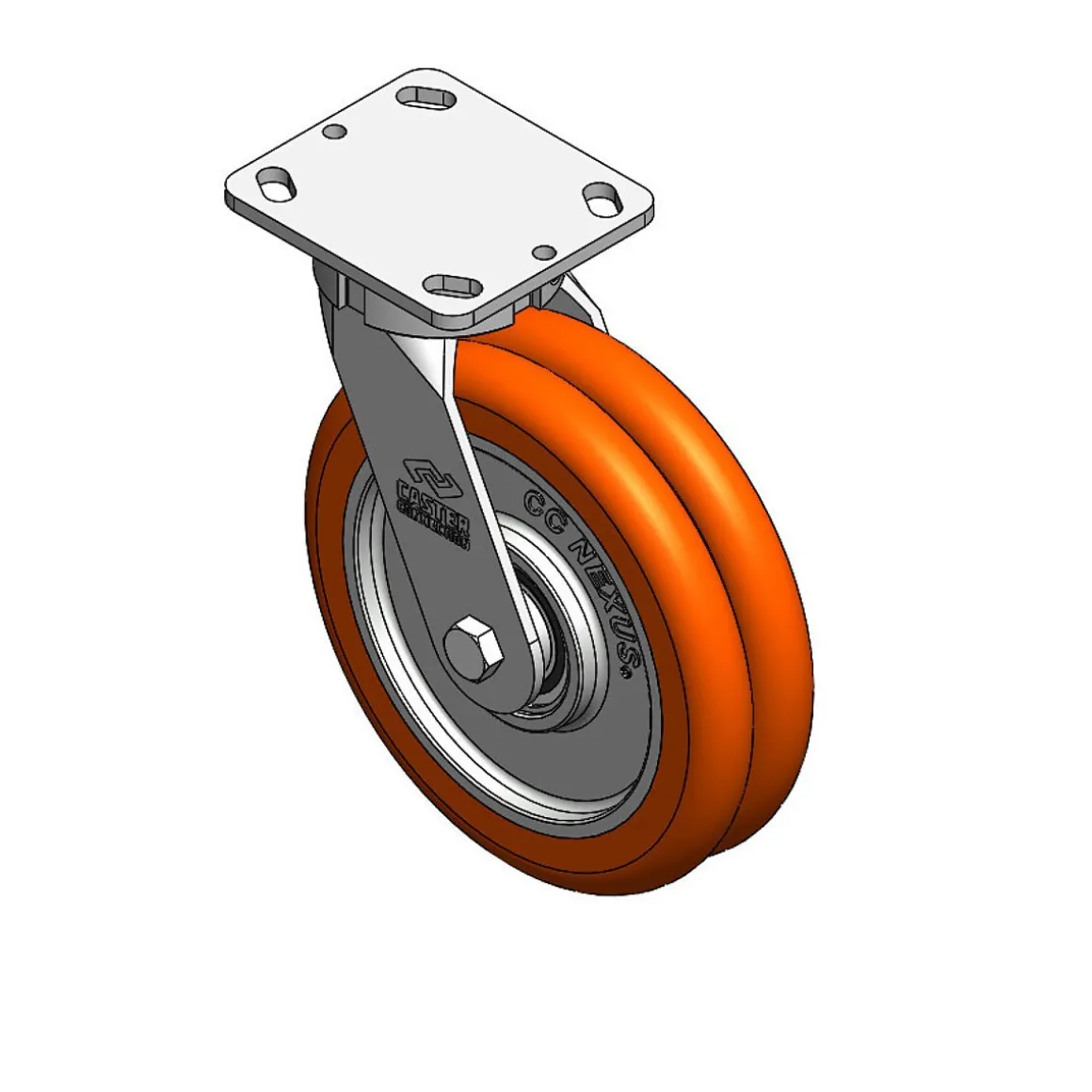

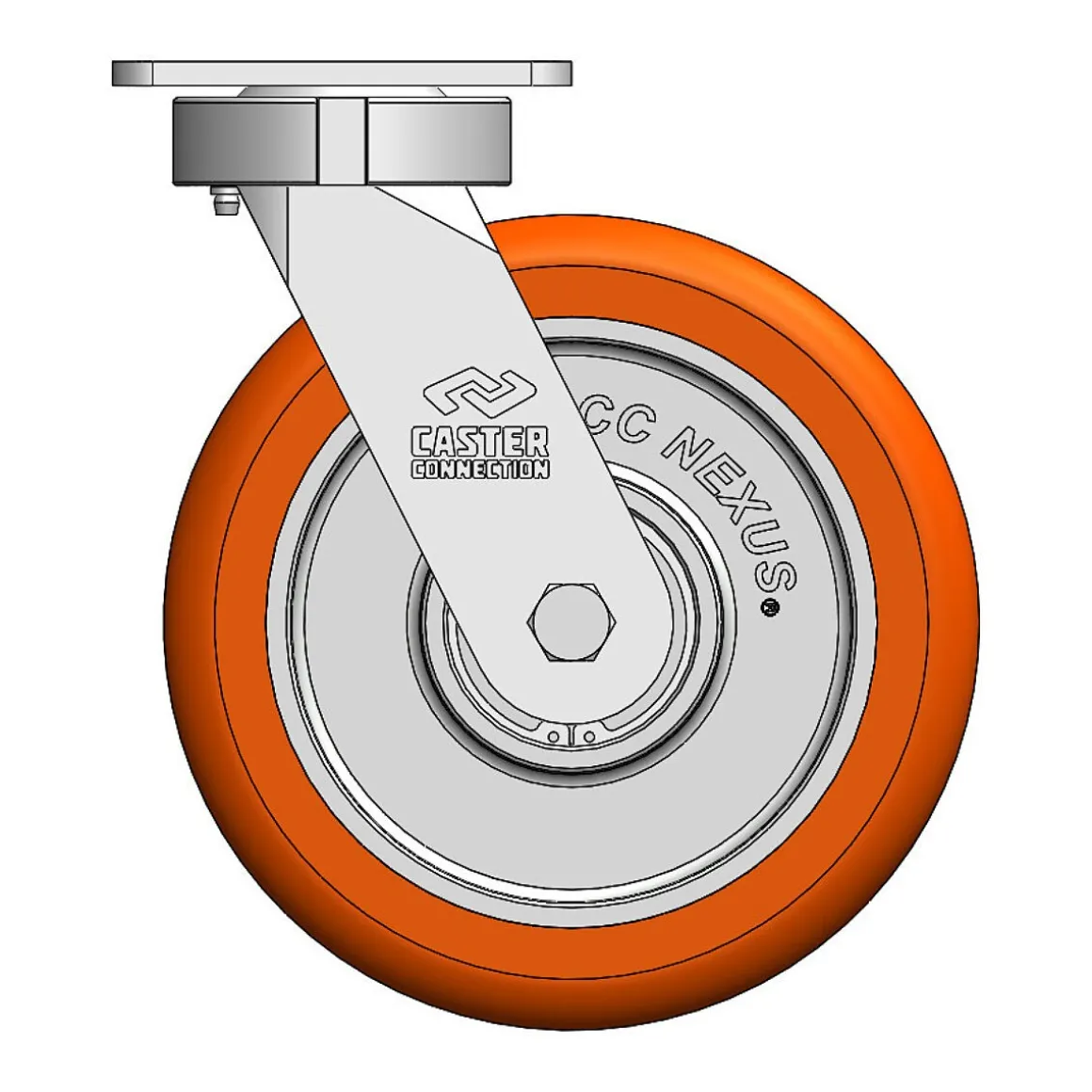

8″ CC Nexus Kingpinless Swivel Caster – 4″ X 4-1/2″ top plate

• Wheel Diameter

  8″

• Wheel Width

  2″

• Overall Height

  9-1/2″

• Weight Capacity

  1,750 lbs.

• Wheel Brand

  CC Nexus – Caster Connection

• Color

  Orange

• Tread Style

  Donut Tread

• Wheel Material

  Polyurethane

• Bearing Type

  6206-RS Ball Bearing

• Core Material

  Aluminum

• Caster Type

  Kingpinless Swivel

• Mounting Type

  Top Plate

• Top Plate

  4″ x 4-1/2″

• Top Plate Bolt Hole Pattern

  2-5/8″ x 3-5/8″ slotted to 3″ x 3″

• Mounting Bolt Size

  3/8″

• Lead Time to Ship

  3-5 Business Days

• Swivel Radius

  6-1/4″

• Axle Type

  Solid Axle

• Durometer

  87 Shore A (+/- 3)

• Fork Finish

  Zinc Plated

• Temperature Range

  -25 to +180 F

• Application

  Manual Push/Pull, Debris, Floor Protection, Safety, Ergonomic Concerns

• Environment

  Clean, Debris, Delicate Flooring, Indoor, Limited Space for Maneuverability, Low Noise Necessary, Medical, Outdoor, Safety Necessary, Steam, Thresholds, Towlines, Water, Weld Slag and/or Metal Chips, Metal Chips, Push/Pull Reduction, Safety

• Floor Type

  Varied-Indoor

• Industry

  Aerospace, Agriculture, Automotive, Engineering, Manufacturing, Material Handling, Metal Fabrication, Industrial/Mechanical, Machinery

• Noise Reduction

  No

• Related Products

  CC-1015-800200-40-T1
  CC-2215-800200-40-T1
  CC-2115-800200-40-T1-BIB

• Anti Static

  No

• Dust Cap

  No

• Ship Weight

  10.1 lbs

This 8″ CC Nexus Kingpinless Swivel Caster supports weightloads of 1,750 lbs. per caster, has an overall height of 9-1/2″ and uses a 4″ X 4-1/2″ top plate.

Ideal for both manual push/pull and towline applications, our CC Nexus features a low-exertion multi-wheel design that reduces scrubbing and rolling resistance to allow for easier turning as each wheel pivots individually.

Learn more about CC Nexus here.
