8″ CC Axis Dual-Swivel Maintenance-Free CC Apex ESD Caster

• Wheel Diameter

  8″

• Wheel Width

  2″

• Overall Height

  11-1/2″

• Weight Capacity

  1,200 lbs.

• Wheel Brand

  CC Apex ESD – Caster Connection

• Color

  Blue

• Wheel Configuration

  Single Wheel

• Tread Style

  Donut Tread

• Wheel Material

  Polyurethane

• Bearing Type

  6203-RS Ball Bearing

• Core Material

  Aluminum

• Caster Type

  Maintenance-Free Swivel

• Mounting Type

  Top Plate

• Top Plate

  4″ x 4-1/2″

• Top Plate Bolt Hole Pattern

  2-7/16″ x 4-15/16″ slotted to 3-3/8″ x 5-1/4″

• Mounting Bolt Size

  1/2″

• Lead Time to Ship

  3-5 Business Days

• Swivel Radius

  11″

• Axle Type

  Solid Axle

• Alternate SKU

  CCAPEX-ESD-8S-AXIS, CC-7111-800200-40-T2

• Durometer

  87 Shore A (+/- 5)

• Fork Finish

  Zinc Plated

• Temperature Range

  -25 to +180 F

• Application

  Manual Push/Pull, Towlines, Debris, Floor Protection, Safety, Ergonomic Concerns

• Environment

  Debris, Delicate Flooring, Electrostatic Discharge Present, Indoor, Limited Space for Maneuverability, Low Noise Necessary, Push/Pull Reduction Necessary, Thresholds, Weld Slag and/or Metal Chips, Metal Chips, Safety

• Floor Type

  Varied-Indoor

• Industry

  Aerospace, Automotive, Biotechnology, Healthcare, Industrial/Mechanical Engineering, Manufacturing, Material Handling, Technology, Utilities, Electrical/Electronic manufacturing

• Noise Reduction

  No

• Anti Static

  Yes

• Dust Cap

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  24.97 lbs

You’re viewing caster SKU CC-7111-800200-40-T2

This caster provides supreme ergonomic performance with the benefit of being electrostatic-dissipative.

Electrostatic dissipative material conducts electricity, with a surface resistivity of equal to or greater than 10^5 ohms, but less than 10^12 ohms. This material is prescribed for discharge-safe areas because it allows static electricity to flow through the caster wheels and into conductive flooring. It is highly recommended that all casters on a cart (or other fixture) in an electrostatic discharge-safe area are electrostatic dissipative so that they can optimally contact conductive flooring.

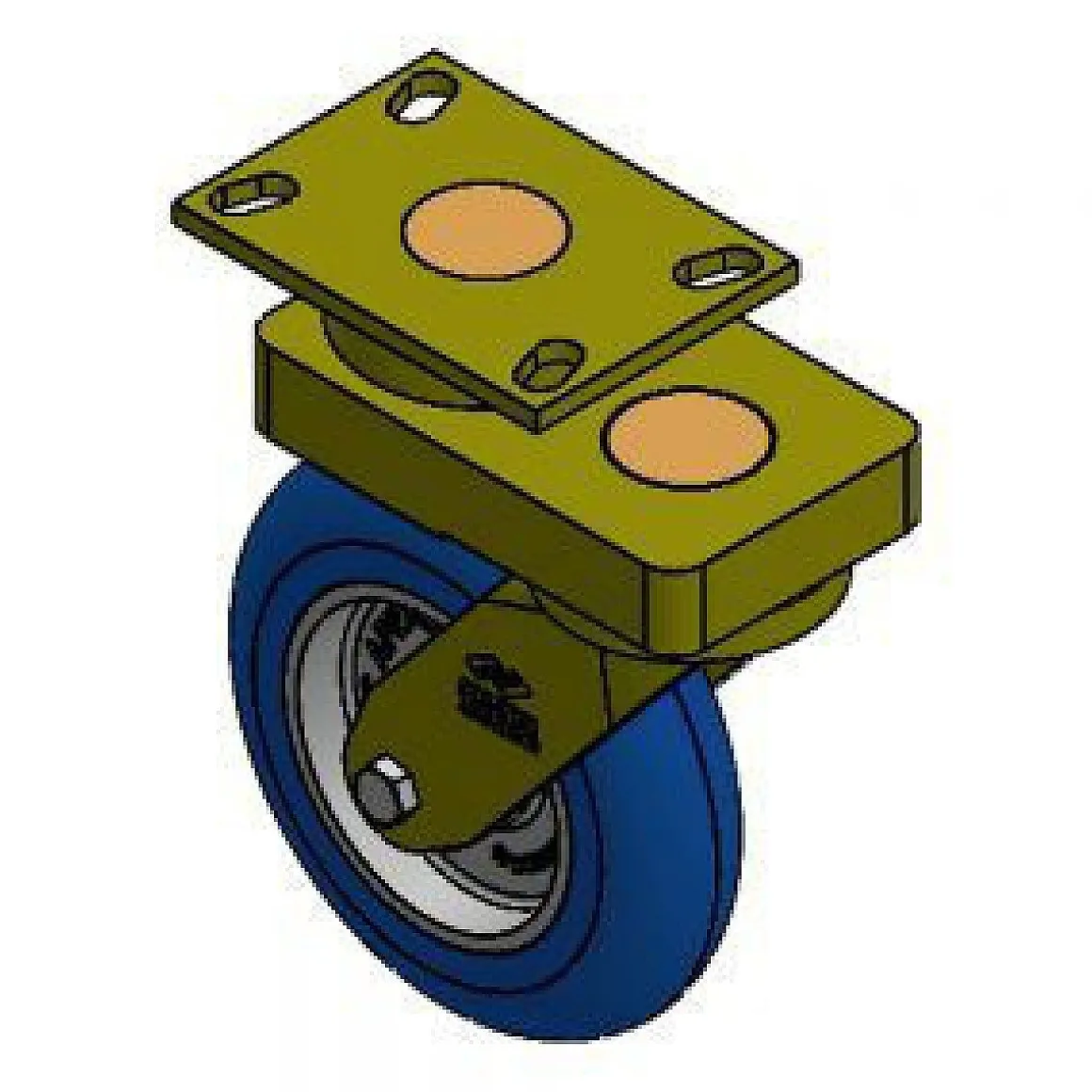

This caster features an 8″ CC Apex ESD wheel with a dual-swivel CC Axis Rig.

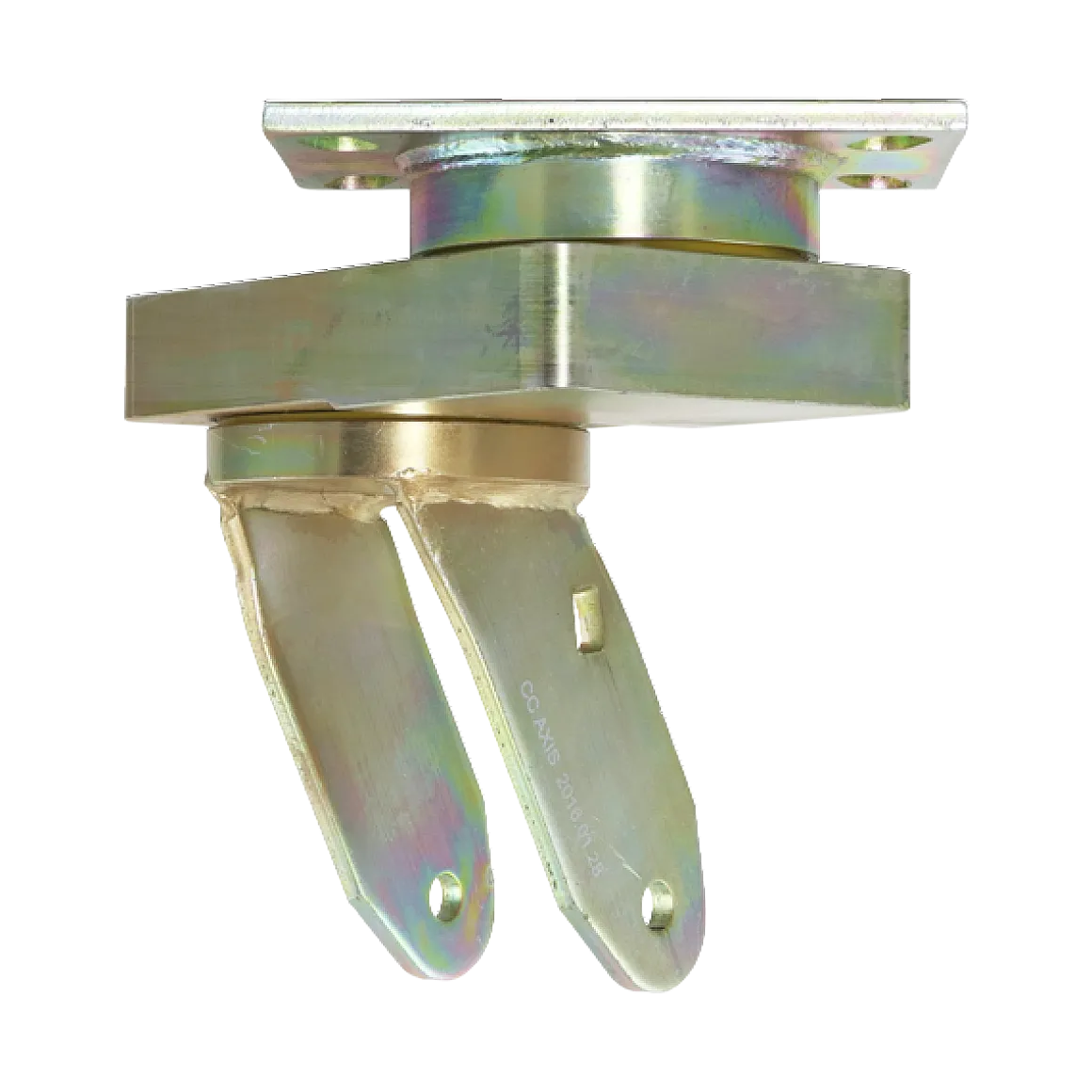

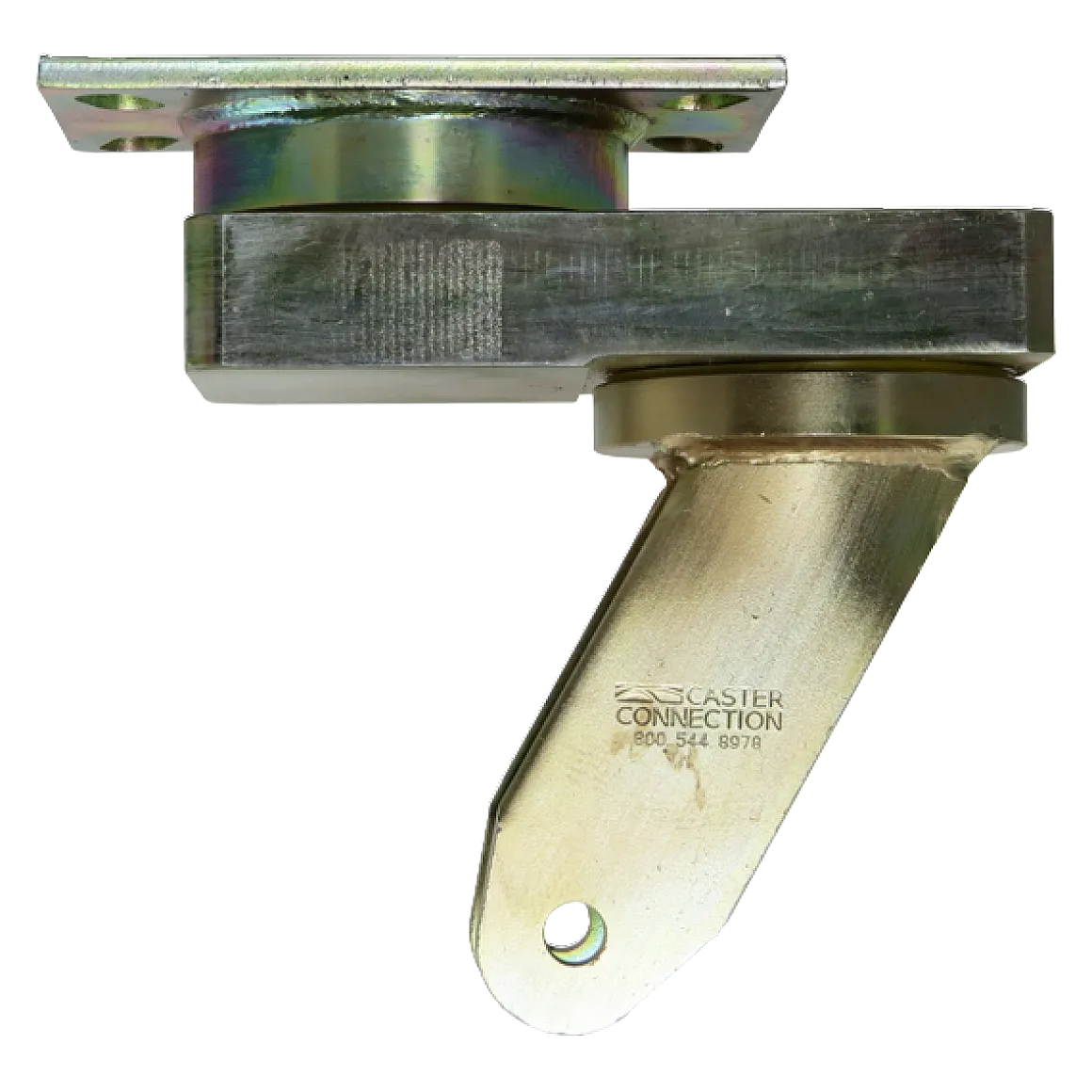

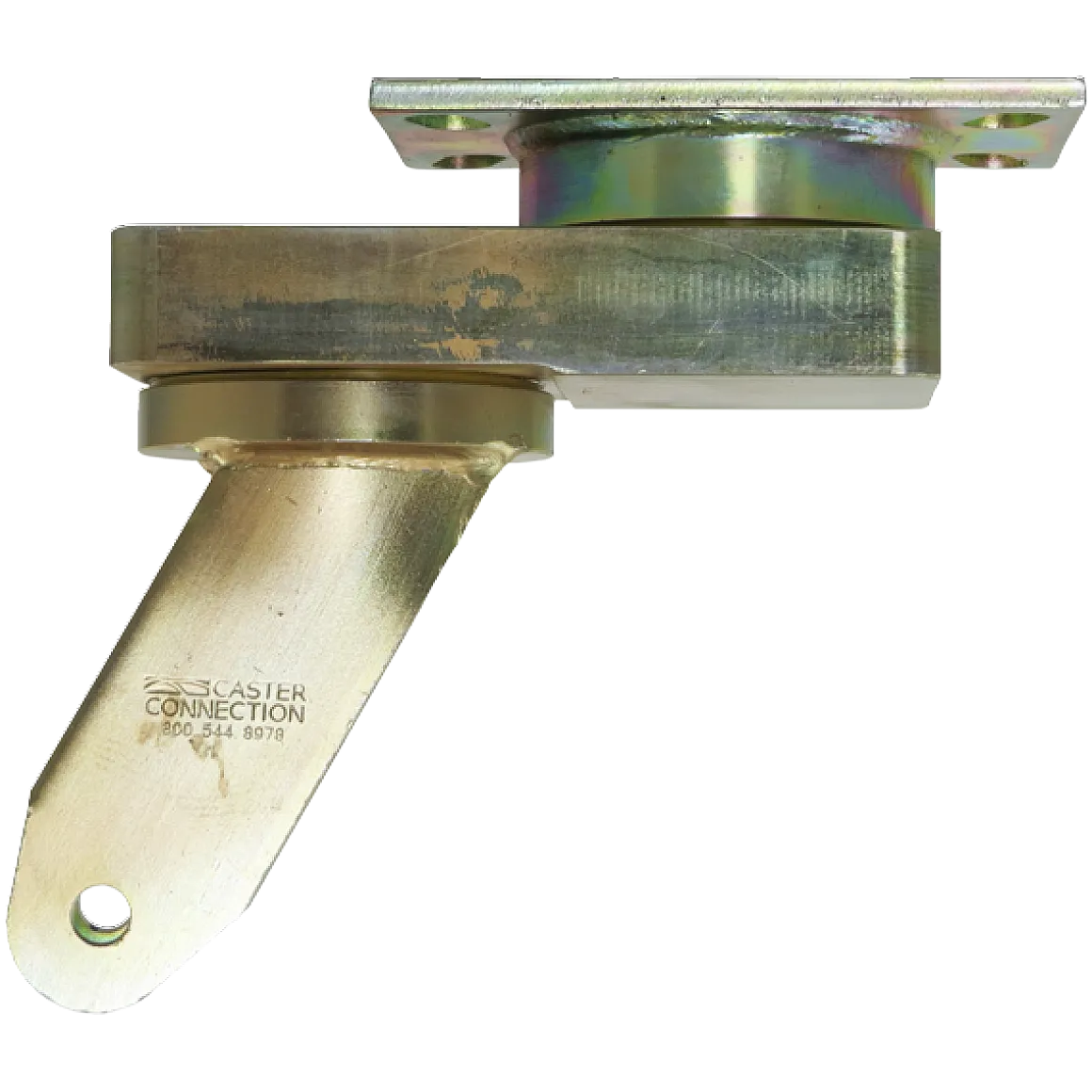

When it comes to the 90-degree turned position, your caster wheel and rig allow you to move forward without excessive strain on your back and shoulders. The CC Axis rig does this better than any caster rig on the market because of its dual caster raceways. In addition to this, it is maintenance-free and extremely durable with its forged kingpin raceways, plus robust bearings for higher ROI and less downtime. The CC Axis is truly an ergonomic game changer!

With the CC Apex ESD, you get a caster that is versatile enough to be used in most facilities from automotive production lines to data centers. The wheel comes in a variety of sizes, and has top notch electrostatic dissipating elements added into the polyurethane. This means that you have world-class ergonomics, noise reduction, debris resistance, towline performance, and protection in electronic/chemical applications.
