5″ Ductile Steel Swivel Caster

• Wheel Diameter

  5″

• Wheel Width

  2″

• Overall Height

  6-1/2″

• Weight Capacity

  1,500 lbs.

• Color

  Red

• Wheel Configuration

  Single Wheel

• Tread Style

  Crown Tread

• Wheel Material

  Ductile Steel

• Caster Type

  Kingpin Swivel

• Mounting Type

  Top Plate

• Top Plate

  4-1/2″ x 6-1/4″

• Mounting Bolt Size

  1/2″

• Lead Time to Ship

  3-5 Business Days

• Swivel Radius

  4″

• Fork Finish

  Zinc Plated

• Temperature Range

  -45 to +800 F

• Noise Reduction

  No

• Dust Cap

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  7.9 lbs

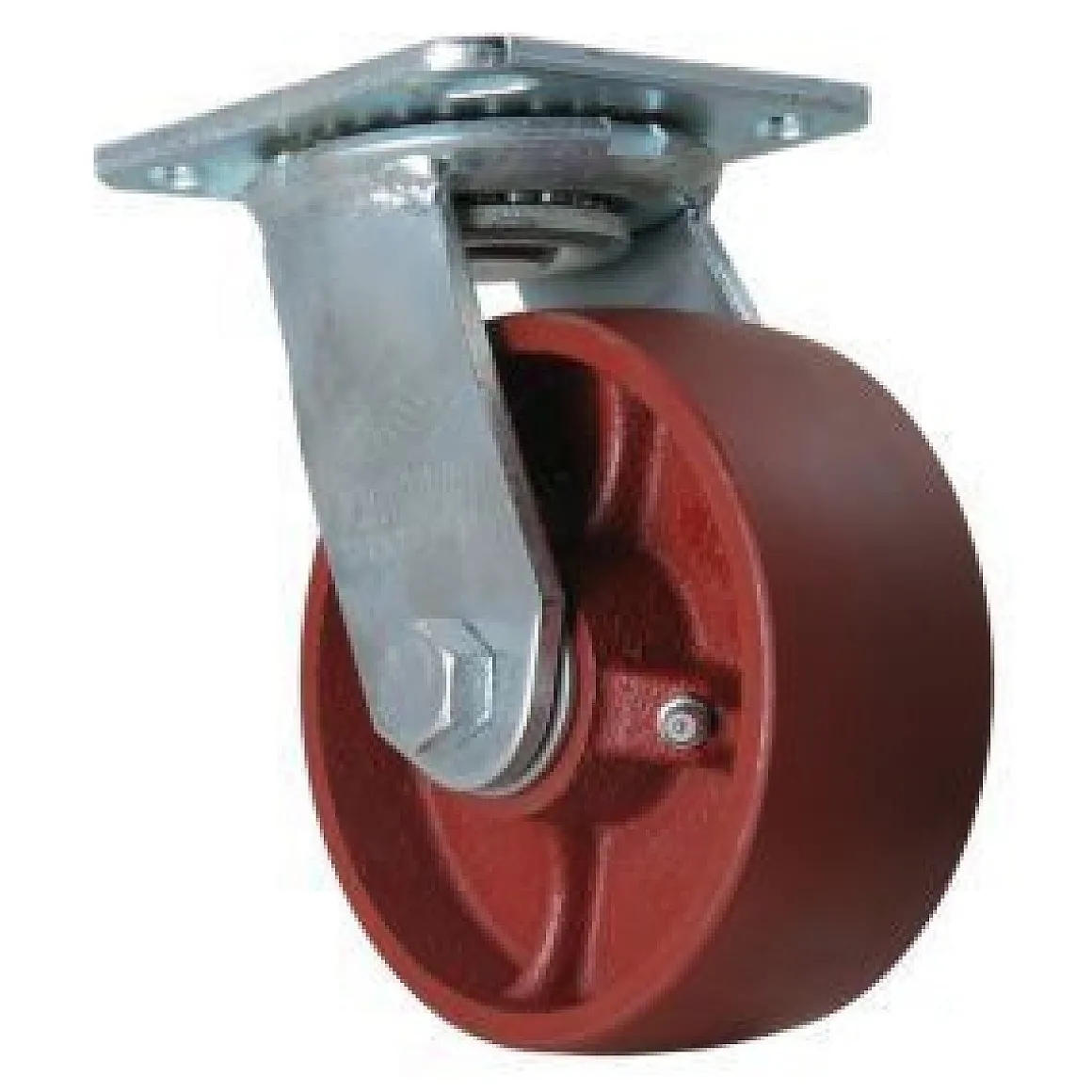

You’re viewing caster SKU 5-81-CD-TP2 This product is a 5″ Ductile Steel Swivel Caster with a weight capacity of 1,500 lbs. per caster. This product has an overall height of 6-1/2″. Additional product specs can be found on the Specifications tab of this product page.
