5″ CC Stout HD Swivel Caster

• Wheel Diameter

  5″

• Wheel Width

  2″

• Overall Height

  6-1/2″

• Weight Capacity

  1,050 lbs.

• Wheel Brand

  CC Stout HD – Caster Connection

• Color

  Orange

• Wheel Configuration

  Single Wheel

• Tread Style

  Crown Tread

• Wheel Material

  Polyurethane

• Bearing Type

  6203-RS Ball Bearing

• Core Material

  Cast Iron

• Caster Type

  Kingpin Swivel

• Mounting Type

  Top Plate

• Top Plate

  4-1/2″ x 6-1/4″

• Top Plate Bolt Hole Pattern

  2-7/16″ x 4-15/16″ slotted to 3-3/8″ x 5-1/4″

• Mounting Bolt Size

  1/2″

• Lead Time to Ship

  3-5 Business Days

• Swivel Radius

  3-3/4″

• Axle Type

  Solid Axle

• Alternate SKU

  CC-1250-500200-40-T2, CC-1250-500200-40-T2

• Durometer

  87 Shore A (+/- 5)

• Fork Finish

  Zinc Plated

• Temperature Range

  -25 to +180 F

• Application

  Manual Push/Pull

• Environment

  Clean, Debris, Delicate Flooring, Indoor, Limited Space for Maneuverability, Low Noise Necessary, Medical, Outdoor, Safety Necessary, Thresholds, Towlines, Weld Slag and/or Metal Chips, Metal Chips, Push/Pull Reduction, Safety

• Floor Type

  Varied-Indoor

• Industry

  Aerospace, Agriculture, Automotive, Engineering, Manufacturing, Material Handling, Metal Fabrication, Industrial/Mechanical, Machinery

• Noise Reduction

  No

• Anti Static

  No

• Dust Cap

  No

• Ship Weight

  9.02 lbs

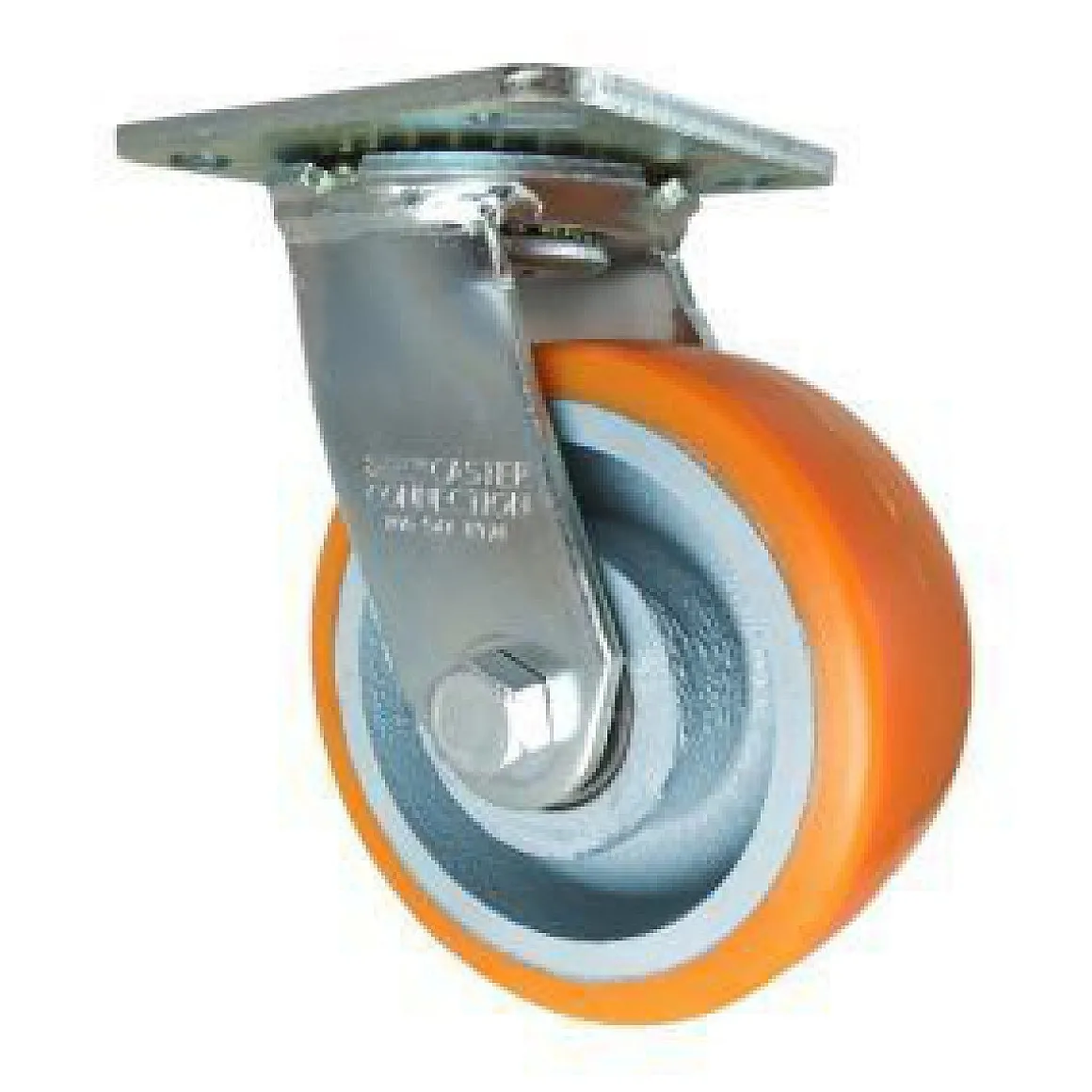

You’re viewing caster SKU CC-1250-500200-40-T2

This caster featuring a 5″ x 2″ orange CC Stout wheel and swivel caster rig is a wise caster choice for those who need a strong, durable, and quiet caster. Using a slightly-crowned flat-tread design, the CC Stout line offers the same excellent mobility and ergonomics as the industry-changing CC Apex wheel, while capably carrying much heavier weight loads due its iron core and tread shape.

The benefits of the CC Stout include:

¢ High weight capacity
¢ Ergonomic and easily maneuverable
¢ Debris dispelling capability
¢ Holds up under rigorous conditions
¢ Reduces downtime and maintenance costs
¢ Painted iron core to protect structural integrity

The CC Stout is a great option for applications involving manual pushing and pulling, as well as towing by various vehicles. Because the CC Stout features the same polyurethane as the CC Apex, it offers an added boost to pushing and pulling and maintains a great grip on flooring during towing.
