5″ CC Apex Kingpinless Swivel Caster w/ Extended Swivel Lead

• Wheel Diameter

  5″

• Wheel Width

  2″

• Overall Height

  6-1/2″

• Weight Capacity

  800 lbs.

• Wheel Brand

  CC Apex – Caster Connection

• Color

  Orange

• Wheel Configuration

  Single Wheel

• Tread Style

  Donut Tread

• Wheel Material

  Polyurethane

• Bearing Type

  6203-RS Ball Bearing

• Core Material

  Aluminum

• Caster Type

  Kingpinless Swivel

• Mounting Type

  Top Plate

• Top Plate

  4″ x 4-1/2″

• Mounting Bolt Size

  3/8″

• Lead Time to Ship

  3-5 Business Days

• Swivel Radius

  5″

• Axle Type

  Solid Axle

• Durometer

  87 Shore A (+/- 5)

• Fork Finish

  Zinc Plated

• Temperature Range

  -25 to +180 F

• Application

  Manual Push/Pull, Towlines, Debris, Floor Protection, Safety, Ergonomic Concerns

• Environment

  Clean, Debris, Delicate Flooring, Indoor, Limited Space for Maneuverability, Low Noise Necessary, Medical, Outdoor, Safety Necessary, Steam, Thresholds, Towlines, Water, Weld Slag and/or Metal Chips, Metal Chips, Push/Pull Reduction, Safety

• Floor Type

  Varied-Indoor

• Industry

  Aerospace, Agriculture, Automotive, Engineering, Manufacturing, Material Handling, Metal Fabrication, Industrial/Mechanical, Machinery

• Noise Reduction

  No

• Dust Cap

  No

• Ship Weight

  5.84 lbs

You’re viewing caster SKU CC-2210-500200-40-T1

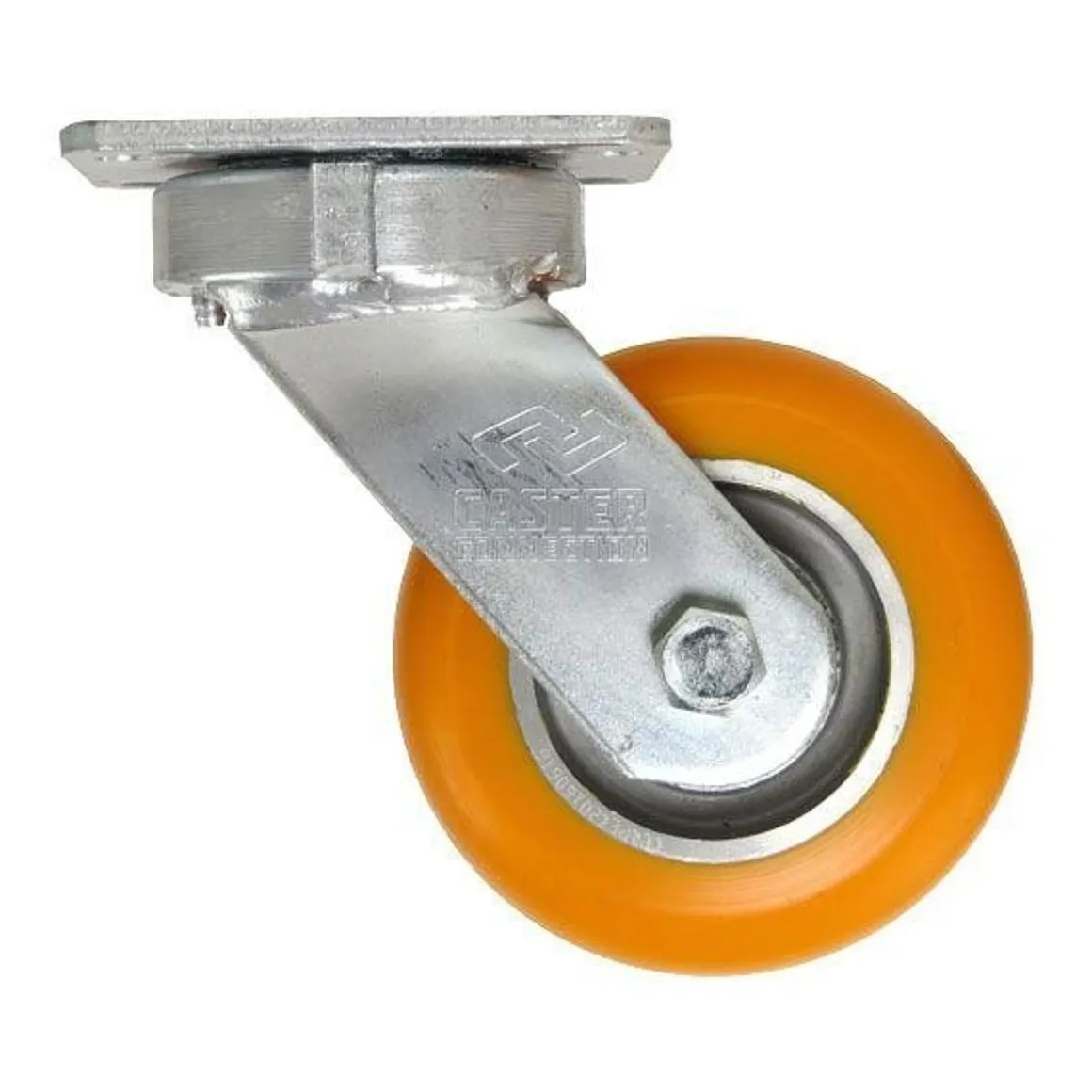

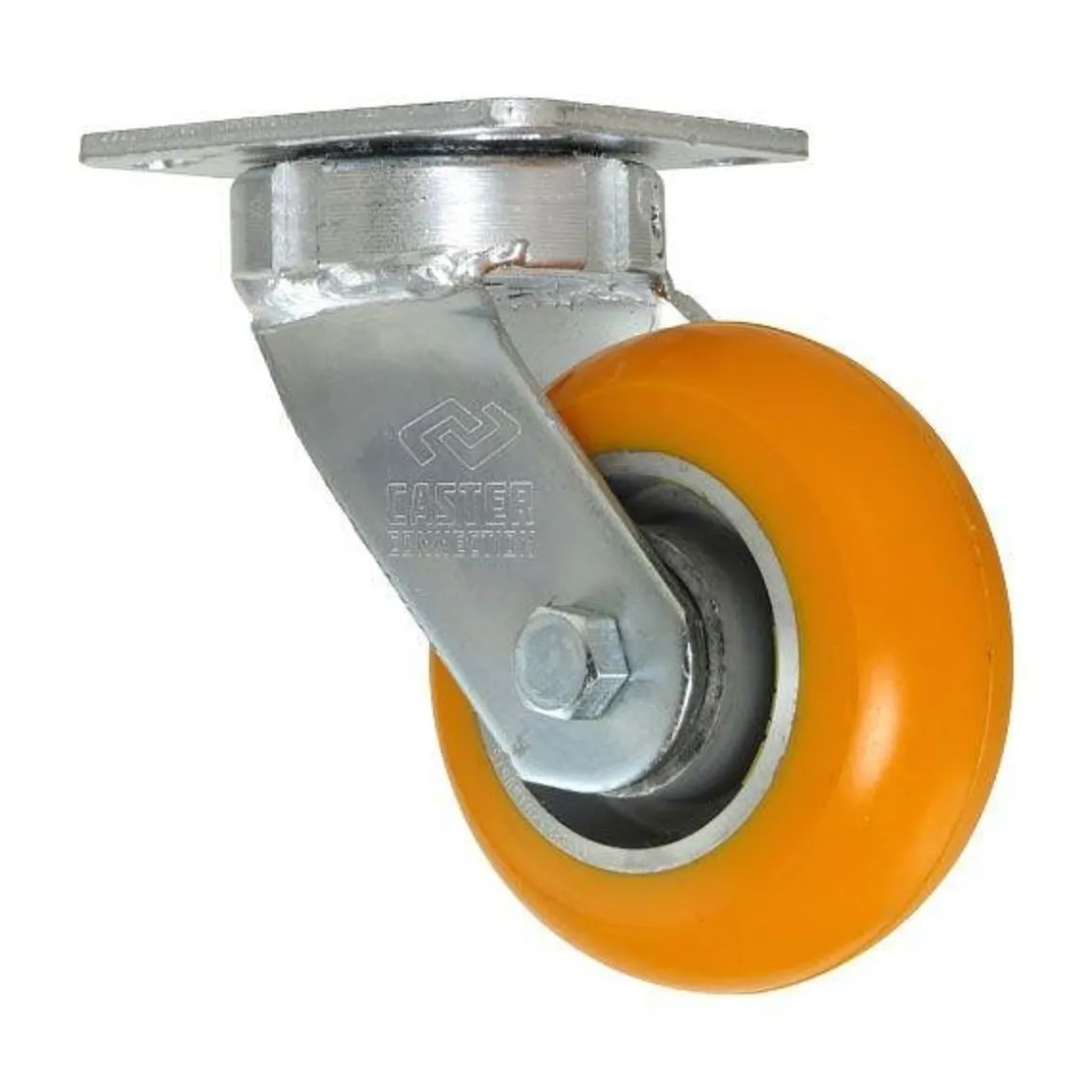

This 5″ x 2″ orange CC Apex Kingpinless Swivel Caster with Extended Swivel Lead is a great caster choice for those who need a durable, quiet and ergonomic caster that can meet the needs of nearly any environment. CC Apex orange caster wheels feature debris-rejecting high quality polyurethane tread that is chemically and mechanically bonded (for maximum security) to a lightweight-yet-sturdy aluminum core. Every CC Apex wheel comes with a maintenance-free, precision ball bearing for optimal performance in applications that require frequent stops, starts and turns. This caster pairs the CC Apex wheel with Caster Connection’s zinc-coated CC Alpha kingpinless-swivel rig. This rig handles heavy weight loads, performs excellently in Towlines and offers great durability because of its lack of a kingpin.

CC Apex kingpinless casters are designed to:

Kingpinless caster rigs are different from standard kingpin caster rigs in that the swivel section is held together without a rivet or nut and bolt kingpin. Kingpinless caster rigs are held together by a single row of ball bearings that are contained by a full contact interlocking swivel raceway design. Kingpinless casters are ideal for towing, conveyor, maintenance/utility carts, Towlines, drag lines and more robust applications seen in industrial environments.

For more info, check out Caster Rig Types.

¢ Prevent user injuries by reducing required push/pull force – and improving ergonomics
¢ Be strong and durable
¢ Lessen decibel output when rolling, maintaining a quiet environment
¢ Preserve flooring by dispelling debris such as weld slag/nails and by being non-marking
¢ Reduce maintenance downtime due to caster failure
¢ Carry substantial weight loads
¢ Offer optimal performance in Towline applications

CC Apex casters work well in environments that include:

¢ Debris
¢ Fragile Flooring
¢ Limited Space for Maneuverability
¢ Low Noise Necessary
¢ Push-Pull Reduction Necessary
¢ Safety Needs
¢ Thresholds
¢ Weld Slag and/or Metal Chips

CC Apex casters have had great success in industries such as:

¢ Automotive
¢ Manufacturing
¢ Metal Fabrication
¢ Distribution
¢ DIY
¢ Engineering
¢ Hospital/Medical
¢ Machine Shops

Click here to view the CC Apex Brochure
