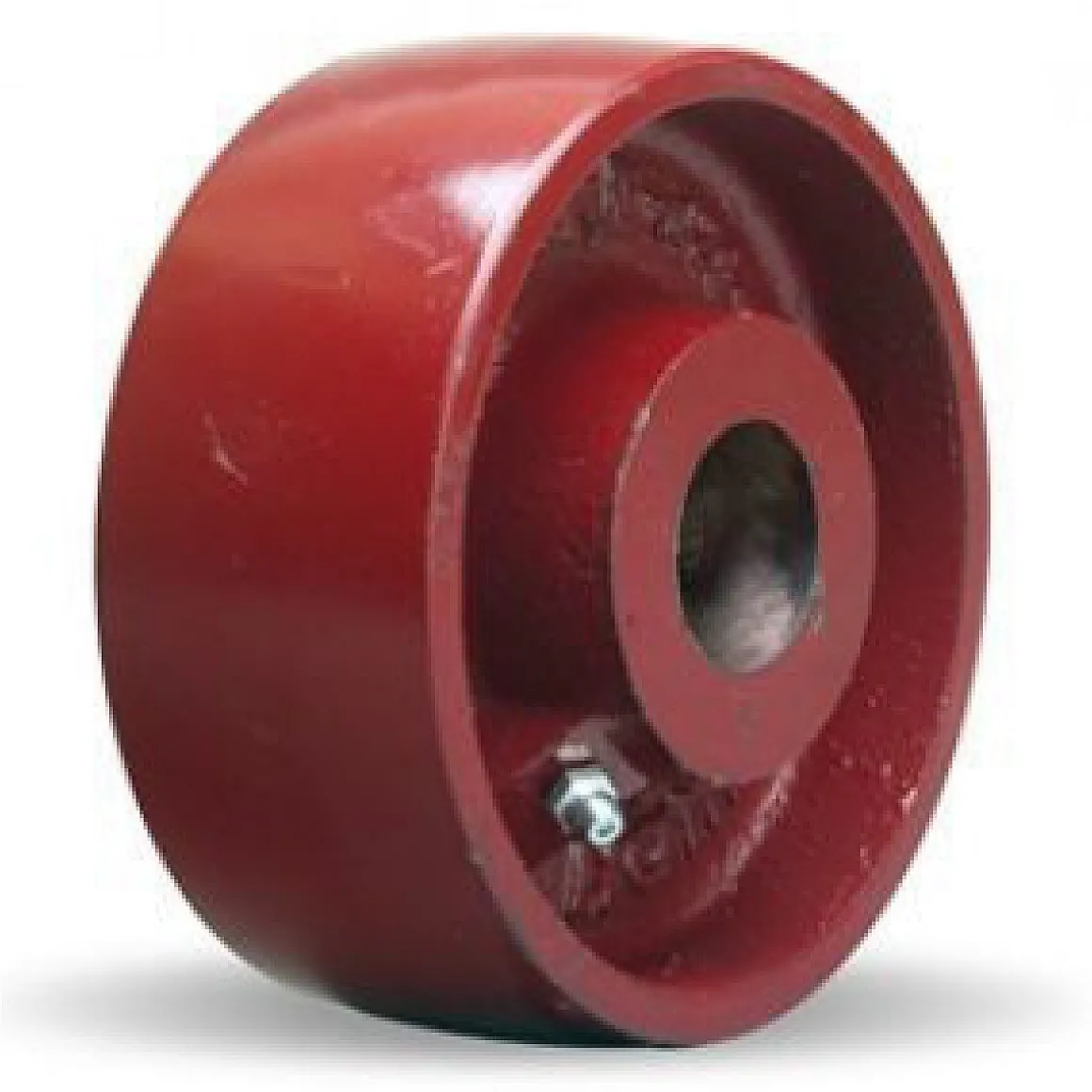

5″ Cast Iron Wheel

• Wheel Diameter

  5″

• Wheel Width

  2-1/2″

• Weight Capacity

  1,800 lbs.

• Brand

  Hamilton

• Color

  Red

• Tread Style

  Flat Tread

• Wheel Material

  Cast Iron

• Bore Size

  1-15/16″

• Bearing Type

  Plain Bore

• Hub Length

  3-1/4″

• Lead time to Ship

  Varies based on supplier availability

• Durometer

  Tensile Strength of 30,000 PSI

• Noise Reduction

  No

• Ship Weight

  10.25 lbs

You’re viewing caster wheel SKU W-525-ML-1-15/16

With one of the industrys largest lines of metal wheels (most are cast iron, a few of the smaller sizes sintered iron), Hamilton has come to be known as the first place to go for new or replacement metal wheels. In the last three years, the most popular metal wheel sizes have been upgraded with larger hubs and less scrap metal content to represent the most durable and highest quality metal wheels in the industry.

All metal wheels over 5″ diameter include lubrication fittings in the hubs (lube axles are recommended for the smaller sizes). Some non-standard bores within the minimum and maximum range shown may require an extra charge; close tolerances are always special and can be quoted upon receipt of details.

. This wheel includes a Tapered Roller Bearing with a caster hub length of 3-1/2″.
