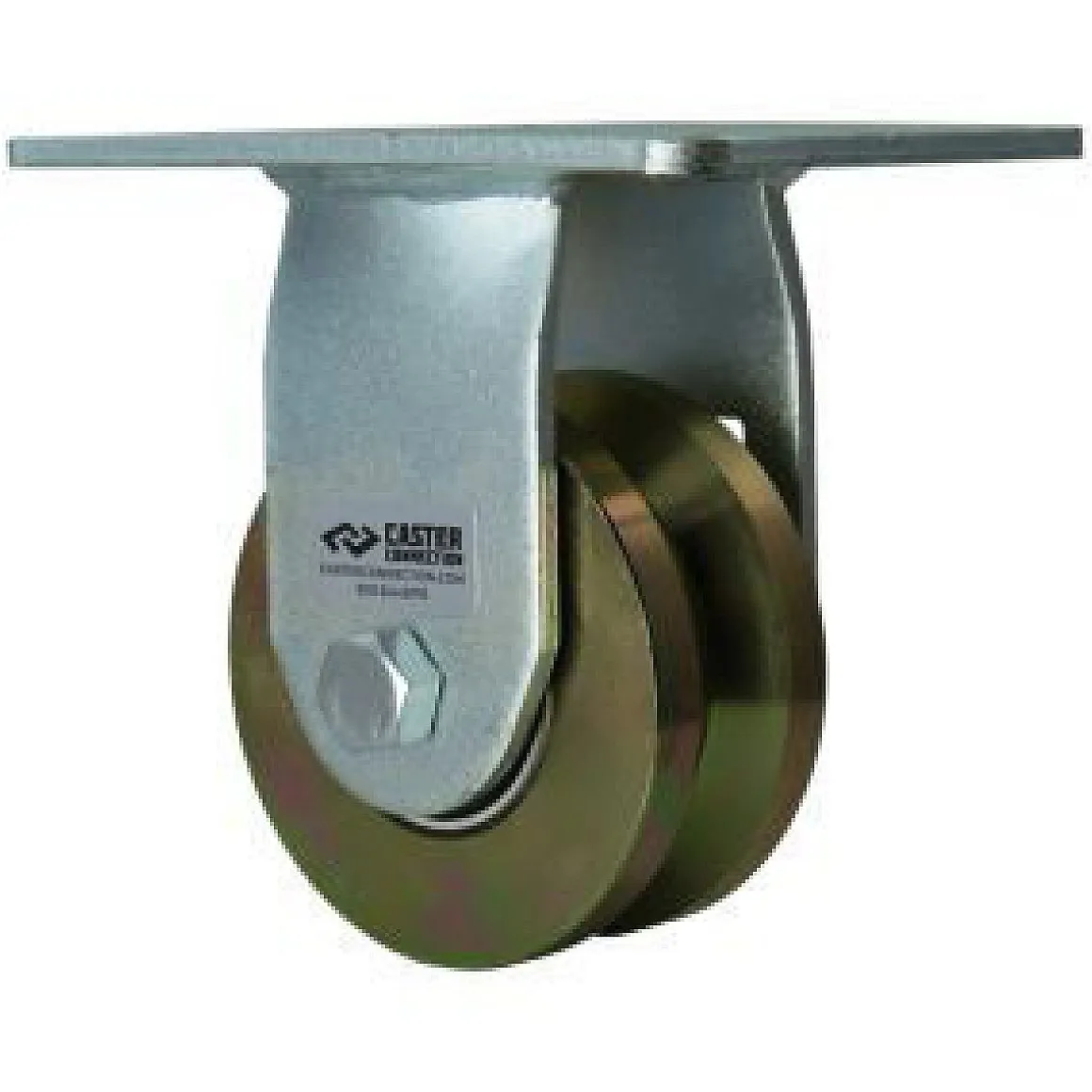

4″ Solid Steel V-Groove Rigid Caster

• Wheel Diameter

  4″

• Wheel Width

  1-13/16″

• Overall Height

  5-5/8″

• Weight Capacity

  1,250 lbs.

• Color

  Yellow

• Wheel Configuration

  Single Wheel

• Tread Style

  V-Groove

• Wheel Material

  Solid Steel

• Bearing Type

  6205-RS Sealed Precision Ball Bearing

• Caster Type

  Rigid

• Mounting Type

  Top Plate

• Top Plate

  5″ x 5-1/2″

• Top Plate Bolt Hole Pattern

  4-1/8″ x 4-1/2″

• Mounting Bolt Size

  3/8″

• Lead Time to Ship

  3-5 Business Days

• Durometer

  Rockwell 80B

• Fork Finish

  Zinc Plated

• Temperature Range

  -40 to +212 F

• Application

  Manual Push/Pull

• Noise Reduction

  No

• Groove Width

  7/8″

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  7.5 lbs

You’re viewing caster SKU 4-82-DIV-TP3 This product is a 4″ Solid Steel V-Groove Rigid Caster with a weight capacity of 1,250 lbs. per caster. This product has an overall height of 5-5/8″. Additional product specs can be found on the Specifications tab of this product page.
