4″ CC Apex ESD Swivel Caster

• Wheel Diameter

  4″

• Wheel Width

  1-1/4″

• Overall Height

  5-1/8″

• Weight Capacity

  400 lbs.

• Wheel Brand

  CC Apex ESD – Caster Connection

• Color

  Blue

• Wheel Configuration

  Single Wheel

• Tread Style

  Donut Tread

• Wheel Material

  Polyurethane

• Bearing Type

  6203-RS Ball Bearing

• Core Material

  Aluminum

• Caster Type

  Kingpin Swivel

• Mounting Type

  Top Plate

• Top Plate

  3-1/2″ x 3-1/2″

• Top Plate Bolt Hole Pattern

  2-5/8″ x 2-5/8″ slotted to 2-3/4″ x 2-3/4″

• Mounting Bolt Size

  5/16″

• Lead Time to Ship

  3-5 Business Days

• Swivel Radius

  3-3/8″

• Axle Type

  Solid Axle

• Alternate SKU

  CCAPEX-ESD-425-S-TP3, NC-0211-400125-40-T8

• Durometer

  85 Shore A (+/-5)

• Fork Finish

  Zinc Plated

• Temperature Range

  -25 to +180 F

• Application

  Manual Push/Pull, Towlines, Debris, Floor Protection, Safety, Ergonomic Concerns

• Environment

  Debris, Delicate Flooring, Electrostatic Discharge Present, Indoor, Limited Space for Maneuverability, Low Noise Necessary, Push/Pull Reduction Necessary, Thresholds, Weld Slag and/or Metal Chips, Metal Chips, Safety

• Floor Type

  Varied-Indoor

• Industry

  Aerospace, Automotive, Biotechnology, Healthcare, Industrial/Mechanical Engineering, Manufacturing, Material Handling, Technology, Utilities, Electrical/Electronic manufacturing

• Noise Reduction

  No

• Anti Static

  Yes

• Dust Cap

  Yes

• Ship Weight

  2.44 lbs

You’re viewing caster SKU GC-0211-400125-40-T8

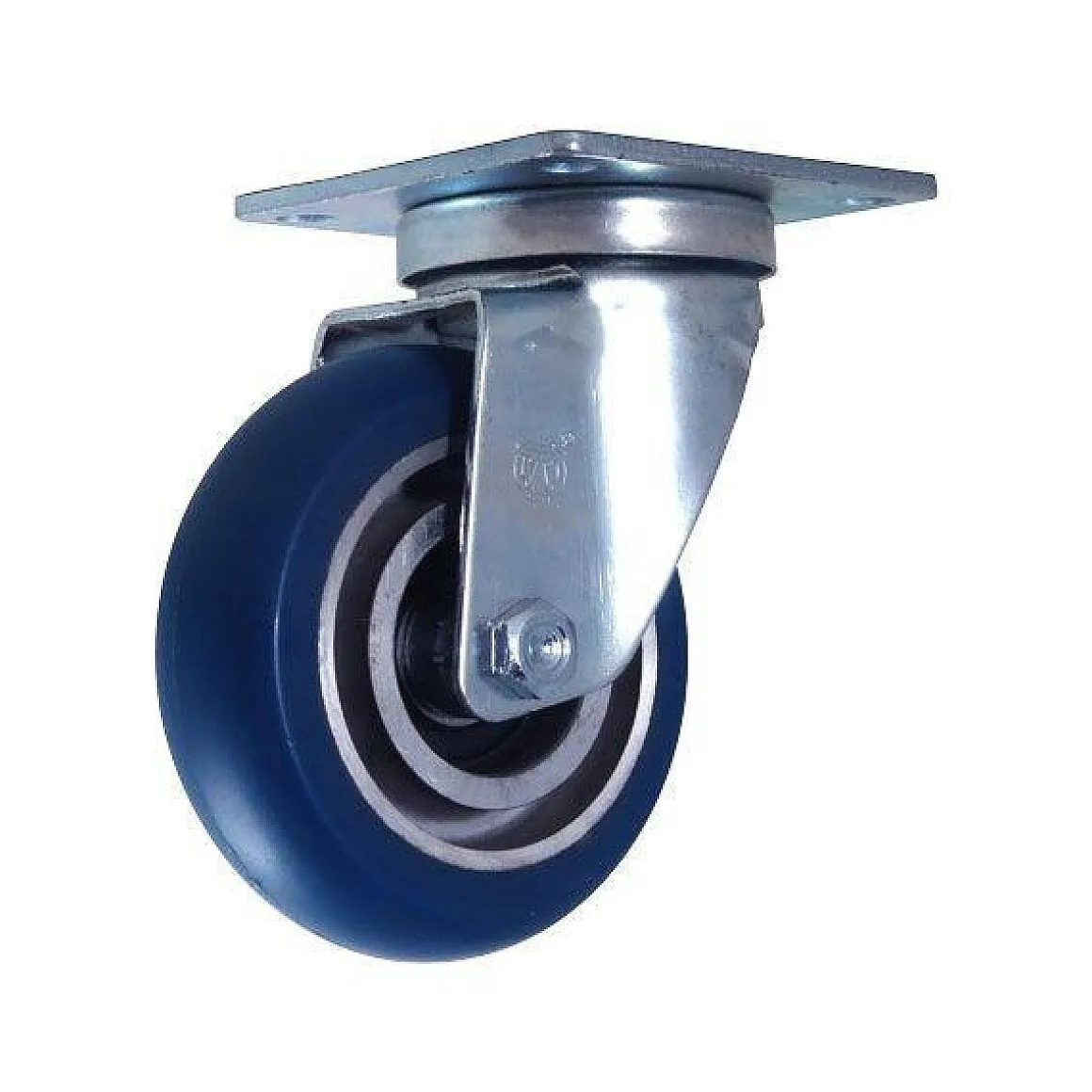

This 4″ x 1-1/4″ CC Apex ESD Swivel Caster (electrostatic dissipating) is made of the same ergonomic, noise reducing, and durability qualities as the original CC Apex, but with the added benefit of containing electrostatic dissipating properties throughout the wheel’s polyurethane tread. These wheels are ideal for clean room environments and other areas where electrostatic build up is an issue. CC Apex ESD is available in 2″ and 1-1/4″ wide.

Electrostatic dissipative material conducts electricity, with a surface resistivity of equal to or greater than 10^5 ohms, but less than 10^12 ohms.

This material is prescribed for discharge-safe areas because it allows static electricity to flow through the caster wheels and into conductive flooring.

It is highly recommended that all casters on a cart (or other fixture) in an electrostatic discharge-safe area are electrostatic dissipative, in order to strive for maximum contact with conductive flooring.

For more info, check out Caster Wheel Types.
