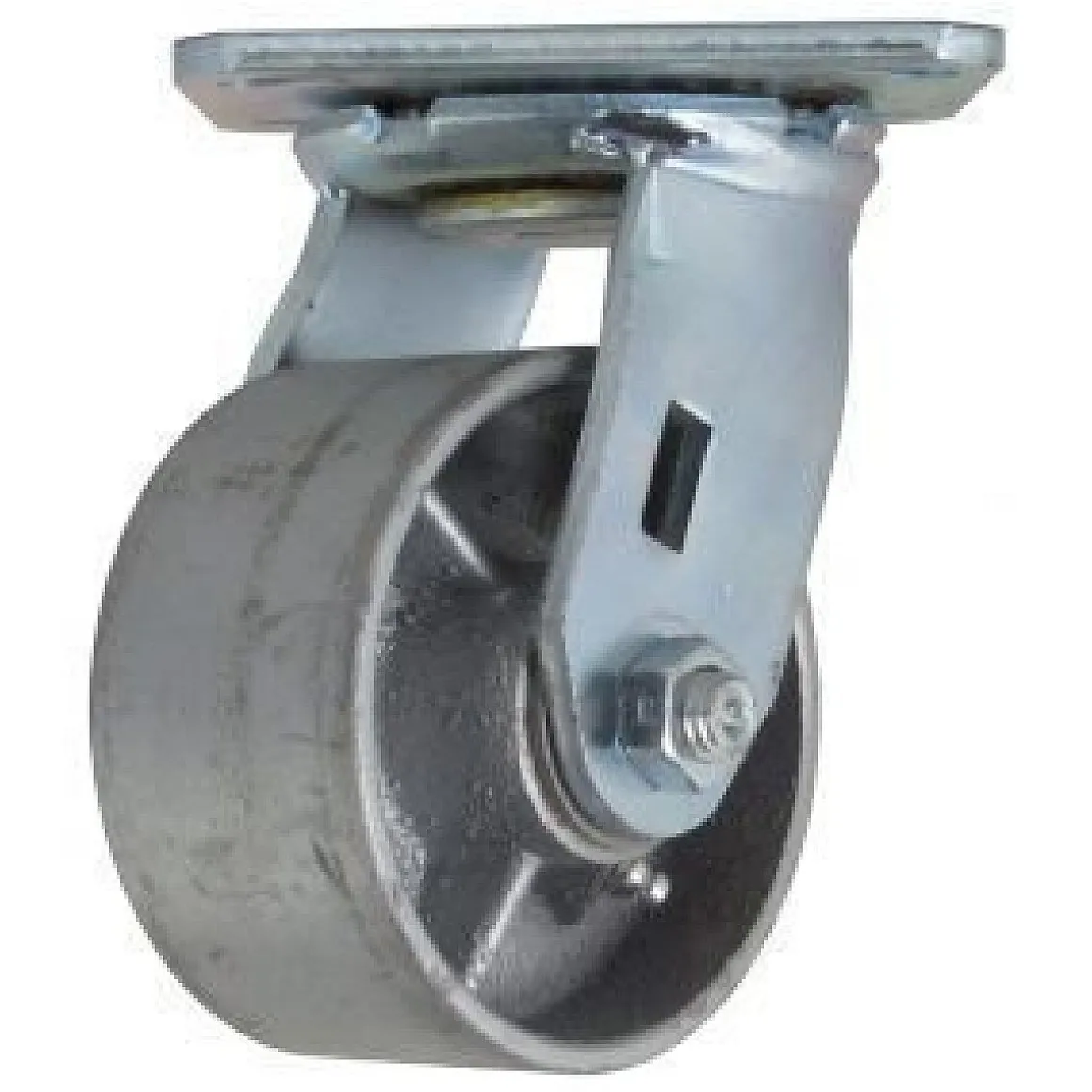

4″ Cast Iron Swivel Caster

• Wheel Diameter

  4″

• Wheel Width

  2″

• Overall Height

  5-5/8″

• Weight Capacity

  600 lbs.

• Color

  Silver

• Wheel Configuration

  Single Wheel

• Tread Style

  Flat Tread

• Wheel Material

  Cast Iron

• Bearing Type

  Roller Bearing

• Caster Type

  Kingpin Swivel

• Mounting Type

  Top Plate

• Top Plate

  4″ x 4-1/2″

• Top Plate Bolt Hole Pattern

  2-5/8″ x 3-5/8″ slotted to 3″ x 3″

• Mounting Bolt Size

  3/8″

• Lead Time to Ship

  3-5 Business Days

• Swivel Radius

  3.25

• Axle Type

  Zirc Axle

• Durometer

  Brinell 145

• Fork Finish

  Zinc Plated

• Temperature Range

  -45 to 600 F

• Application

  Manual Push/Pull

• Environment

  Animal Fats, High Heat, Mild Chemicals, Oil & Grease, Metal Chips

• Floor Type

  Durable/Non-Wood

• Industry

  Machine Shop, Manufacturing, Warehouse

• Noise Reduction

  No

• Anti Static

  No

• Dust Cap

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  5.64 lbs

You’re viewing caster SKU 4-81-139-7

This 4″ x 2″ Cast Iron Swivel Caster or œsemi-steel is a strong, durable and cost effective solution that can carry heavy loads. Featuring a weight capacity of 600 lbs. and an operating temperature range of -45° to +600° Fahrenheit, they roll easily on clean, debris free floors. This wheel is not recommended for wet environments as it can rust.

For more info, check out Caster Wheel Types.
