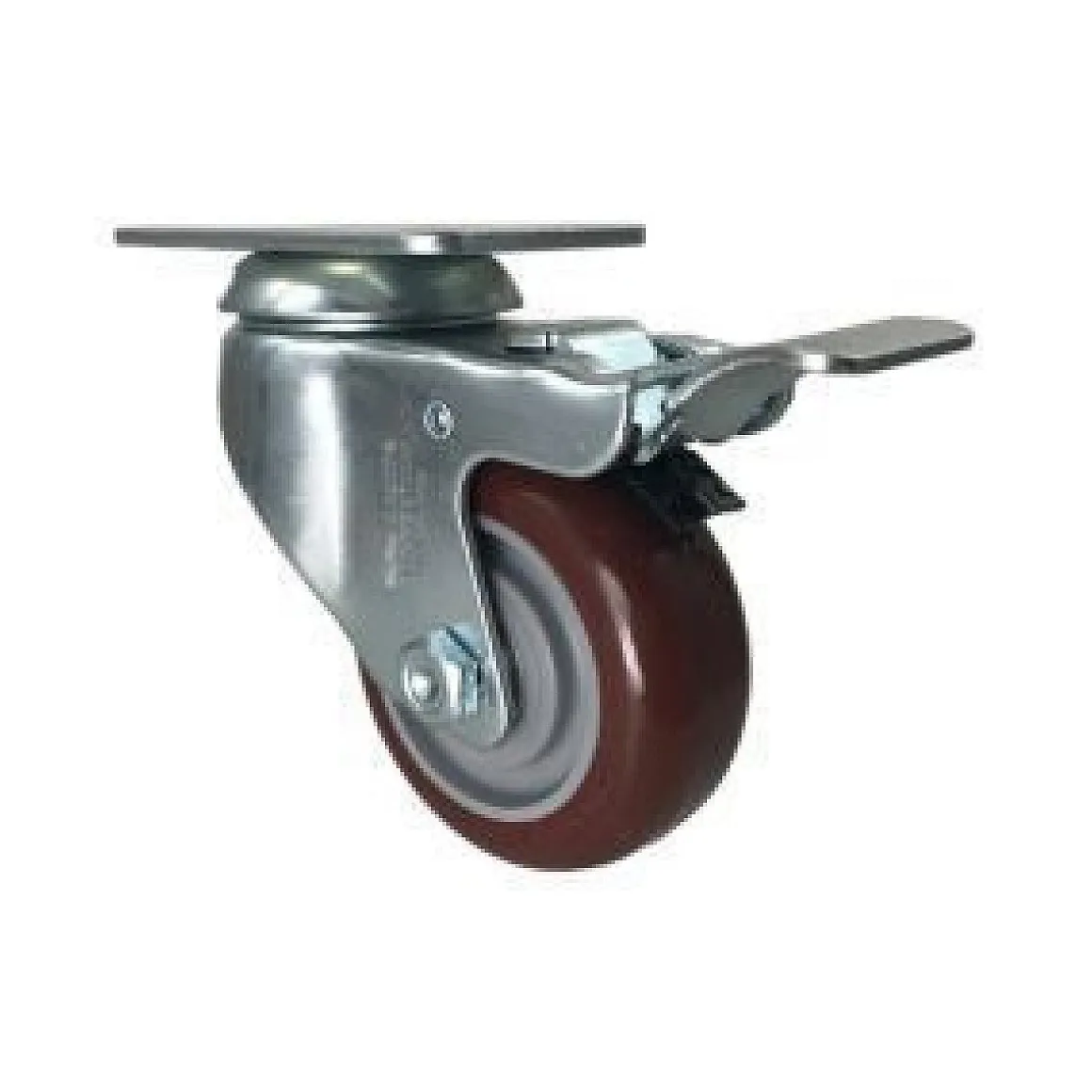

3″ Polyurethane Swivel Caster w/ Total Lock Brake

• Wheel Diameter

  3″

• Wheel Width

  1-1/4″

• Overall Height

  4-1/8″

• Weight Capacity

  300 lbs.

• Color

  Maroon

• Wheel Configuration

  Single Wheel

• Tread Style

  Crown Tread

• Wheel Material

  Polyurethane

• Bearing Type

  Ball Bearing

• Core Material

  Polyolefin

• Caster Type

  Kingpin Swivel

• Mounting Type

  Top Plate

• Top Plate

  2-3/8″ x 3-5/8″

• Top Plate Bolt Hole Pattern

  1-3/4″ x 3″

• Mounting Bolt Size

  5/16″

• Lead Time to Ship

  3-5 Business Days

• Axle Type

  Solid Axle

• Durometer

  60 Shore D (+/- 5)

• Fork Finish

  Zinc Plated

• Temperature Range

  -40 to +180 F

• Application

  Manual Push/Pull, Furniture/Fixtures/Displays, Musical Equipment, Roadie Cases

• Environment

  Indoor

• Floor Type

  Varied-Indoor

• Industry

  DIY, Hotels, Supermarkets, Warehouse

• Noise Reduction

  No

• Anti Static

  No

• Dust Cap

  Yes

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  1.8 lbs

You’re viewing caster SKU 3-30-92-TL-2 This product is a 3″ Polyurethane Swivel Caster w/ Total Lock Brake with a weight capacity of 300 lbs. per caster.
