3″ Cast Iron Swivel Caster

• Wheel Diameter

  3″

• Wheel Width

  1-1/4″

• Overall Height

  4-1/8″

• Weight Capacity

  260 lbs.

• Color

  Silver

• Wheel Configuration

  Single Wheel

• Wheel Material

  Cast Iron

• Caster Type

  Kingpin Swivel

• Mounting Type

  Top Plate

• Top Plate

  2-3/8″ x 3-5/8″

• Top Plate Bolt Hole Pattern

  1-3/4″ x 3″

• Mounting Bolt Size

  5/16″

• Lead Time to Ship

  3-5 Business Days

• Swivel Radius

  2.88

• Fork Finish

  Zinc Plated

• Application

  Manual Push/Pull

• Floor Type

  Durable/Non-Wood

• Industry

  Warehouse

• Noise Reduction

  No

• Anti Static

  No

• Dust Cap

  Yes

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  2.09 lbs

You’re viewing caster SKU 3-30-119-2

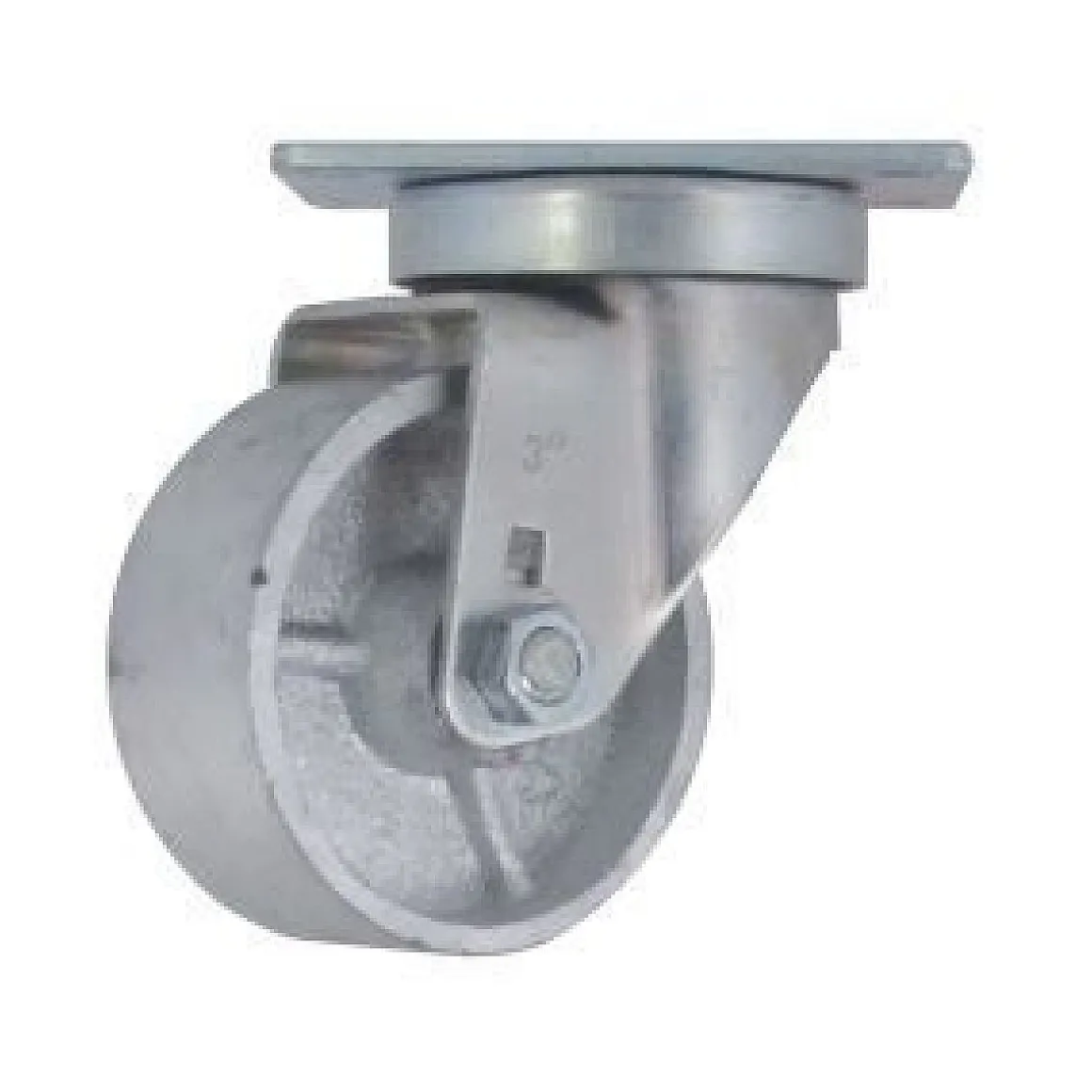

This 3″ x 1-1/4″ Cast Iron Swivel Caster or œsemi-steel is a strong, durable and cost effective solution that can carry heavy loads. Featuring a weight capacity of 260 lbs. and an operating temperature range of -45° to +600° Fahrenheit, they roll easily on clean, debris free floors. This wheel is not recommended for wet environments as it can rust.

For more info, check out Caster Wheel Types.
