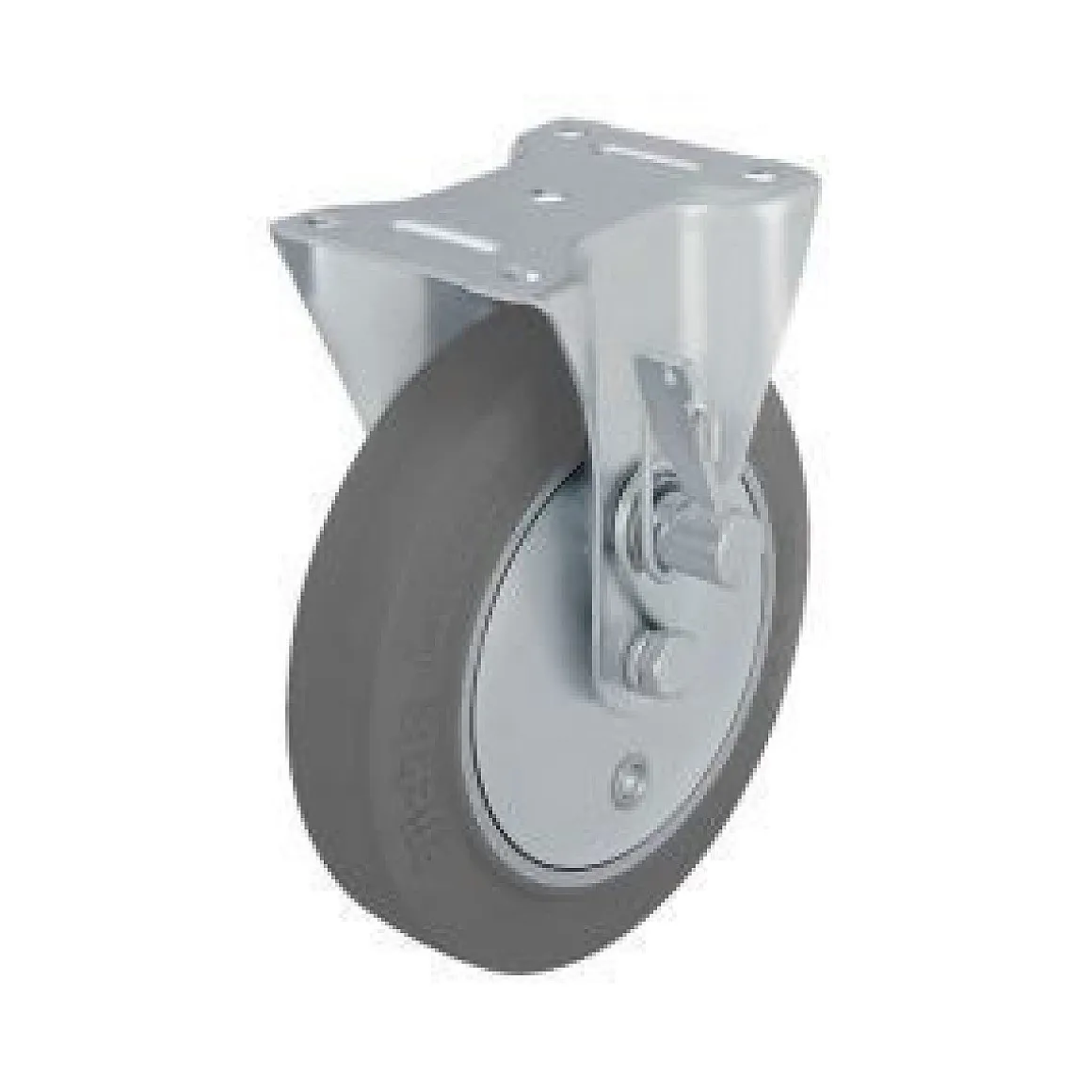

180 mm Elastic Rubber Dead Man’s Brake Right Side Rigid Caster

• Wheel Diameter

  180 mm

• Wheel Width

  50 mm

• Overall Height

  215 mm

• Weight Capacity

  1,150 lbs.

• Wheel Brand

  Blickle

• Color

  Gray

• Wheel Configuration

  Single Wheel

• Tread Style

  Flat Tread

• Wheel Material

  Elastic Rubber

• Bearing Type

  Ball Bearing

• Core Material

  Cast Iron

• Caster Type

  Rigid with Dead Man Brake

• Mounting Type

  Top Plate

• Top Plate

  140 mm x 110 mm

• Top Plate Bolt Hole Pattern

  105 mm x 75-80 mm

• Mounting Bolt Size

  11mm

• Lead Time to Ship

  Contact Us for Lead Time

• Axle Type

  Solid Axle

• Durometer

  65 Shore A (+/- 5)

• Fork Finish

  Zinc Plated

• Temperature Range

  -22 to +176 F

• Application

  Manual Push/Pull, Steep Incline

• Environment

  Indoor, Outdoor, Thresholds, Safety

• Floor Type

  Varied-Indoor

• Industry

  Aerospace, Automotive, Bakeries, Dairy, Design, Engineering, Food Manufacturing, Healthcare, Hotels, Laundries, Machine Shop, Manufacturing, Meat Processing, Metal Fabrication, Supermarkets, Warehouse, Waste Management

• Noise Reduction

  No

• Anti Static

  No

• Dust Cap

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  11 lbs

You’re viewing caster SKU B-GEV 180K-TMR-SG This 180 mm x 50 mm Gray Blickle Rigid with Dead Man Brake Caster has a weight capacity of 1,150 lbs. per caster. This product has an overall height of 215 mm. Product specs (such as Top Plate Bolt Hole Pattern or Stem Size) can be found on the Specifications tab of this page.

Rigid dead man casters use motorcycle/bicycle brake cables* to connect the lever and the spring of the casters.

*Caster Connection does not provide motorcycle or bicycle brake cables due to the nature of various cart designs. Anyone attempting to assemble their own dead man braking solution must provide their braking cables at their discretion.

Learn more about the Dead Man Braking System here.
