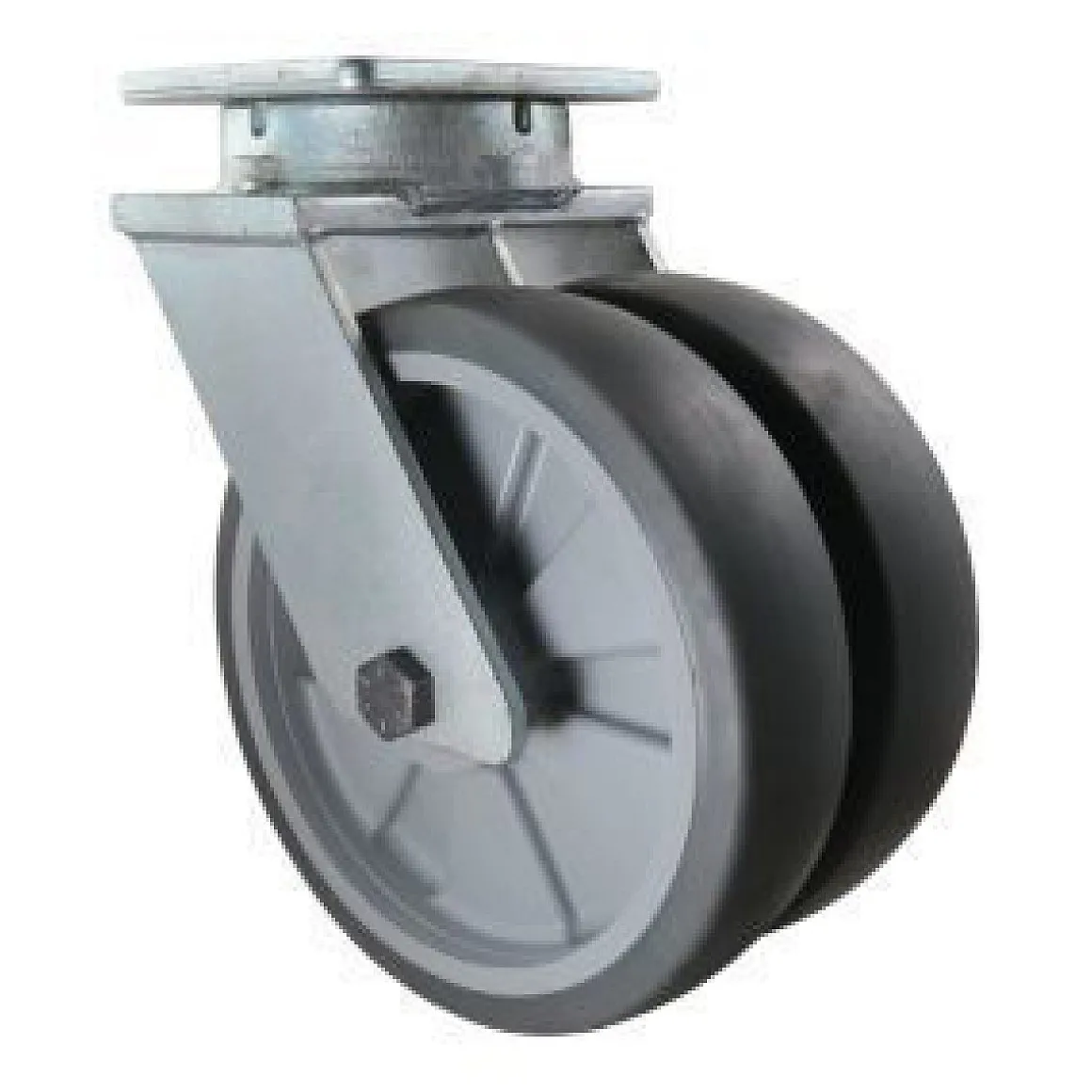

12″ Dual-Wheel Thermoplastic Rubber Kingpinless Swivel Caster

• Wheel Diameter

  12″

• Wheel Width

  3″

• Overall Height

  15-1/2″

• Weight Capacity

  1,900 lbs.

• Color

  Gray

• Wheel Configuration

  Dual Wheel

• Tread Style

  Crown Tread

• Wheel Material

  Thermoplastic Rubber

• Bearing Type

  Roller Bearing

• Core Material

  Polyolefin

• Caster Type

  Kingpinless Swivel

• Mounting Type

  Top Plate

• Top Plate

  4-1/2″ x 6-1/4″

• Top Plate Bolt Hole Pattern

  2-7/16″ x 4-15/16″ slotted to 3-3/8″ x 5-1/4″

• Mounting Bolt Size

  1/2″

• Lead Time to Ship

  1-2 Weeks

• Swivel Radius

  11″

• Axle Type

  Solid Axle

• Durometer

  75 Shore A

• Fork Finish

  Zinc Plated

• Temperature Range

  -20 to +180 F

• Application

  Manual Push/Pull

• Noise Reduction

  No

• Ship Weight

  50.5 lbs

You’re viewing caster SKU 1230-D3-TPR This product is a 12″ Dual-Wheel Thermoplastic Rubber Kingpinless Swivel Caster with a weight capacity of 1,900 lbs. per caster. This product has an overall height of 15-1/2″. Product specs (such as Top Plate Bolt Hole Pattern or Stem Size) can be found on the Specifications tab of this page.
