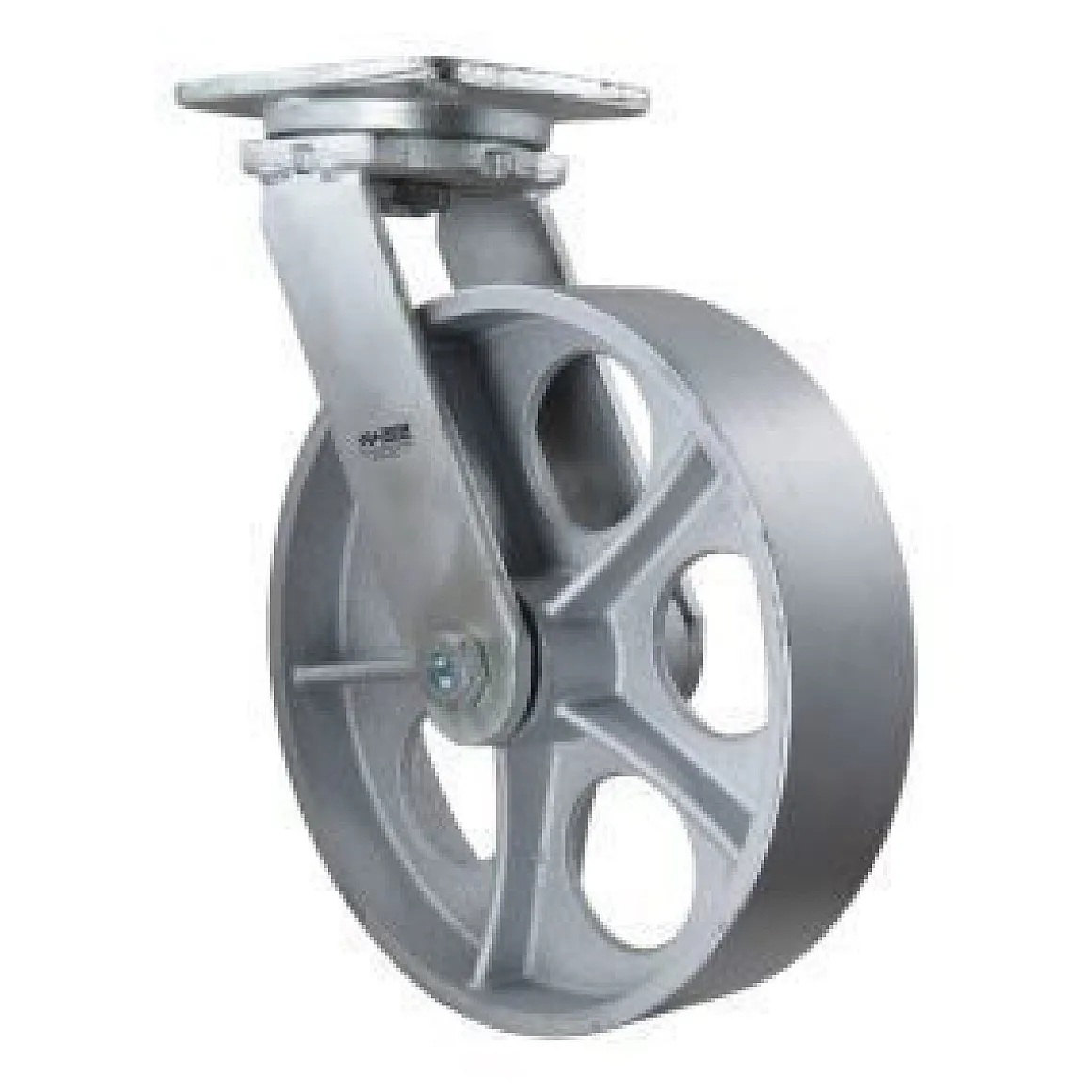

12″ Cast Iron Swivel Caster

• Wheel Diameter

  12″

• Wheel Width

  3″

• Overall Height

  15-1/2″

• Weight Capacity

  2,500 lbs.

• Color

  Silver

• Wheel Configuration

  Single Wheel

• Tread Style

  Flat Tread

• Wheel Material

  Cast Iron

• Bearing Type

  Roller Bearing

• Caster Type

  Kingpin Swivel

• Mounting Type

  Top Plate

• Top Plate

  5-1/4″ x 7-1/4″

• Top Plate Bolt Hole Pattern

  4-1/2″ x 6″ slotted to 4-1/8″ x 6-1/8″

• Mounting Bolt Size

  1/2″

• Lead Time to Ship

  1-2 Weeks

• Swivel Radius

  8-1/2″

• Axle Type

  Zirc Axle

• Durometer

  Brinell 145

• Fork Finish

  Zinc Plated

• Temperature Range

  -45 to +600 F

• Noise Reduction

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  39.5 lbs

You’re viewing caster SKU 1230-S-179-TP2-OH2 This product is a 12″ Cast Iron Swivel Caster with a weight capacity of 2,500 lbs. per caster.
