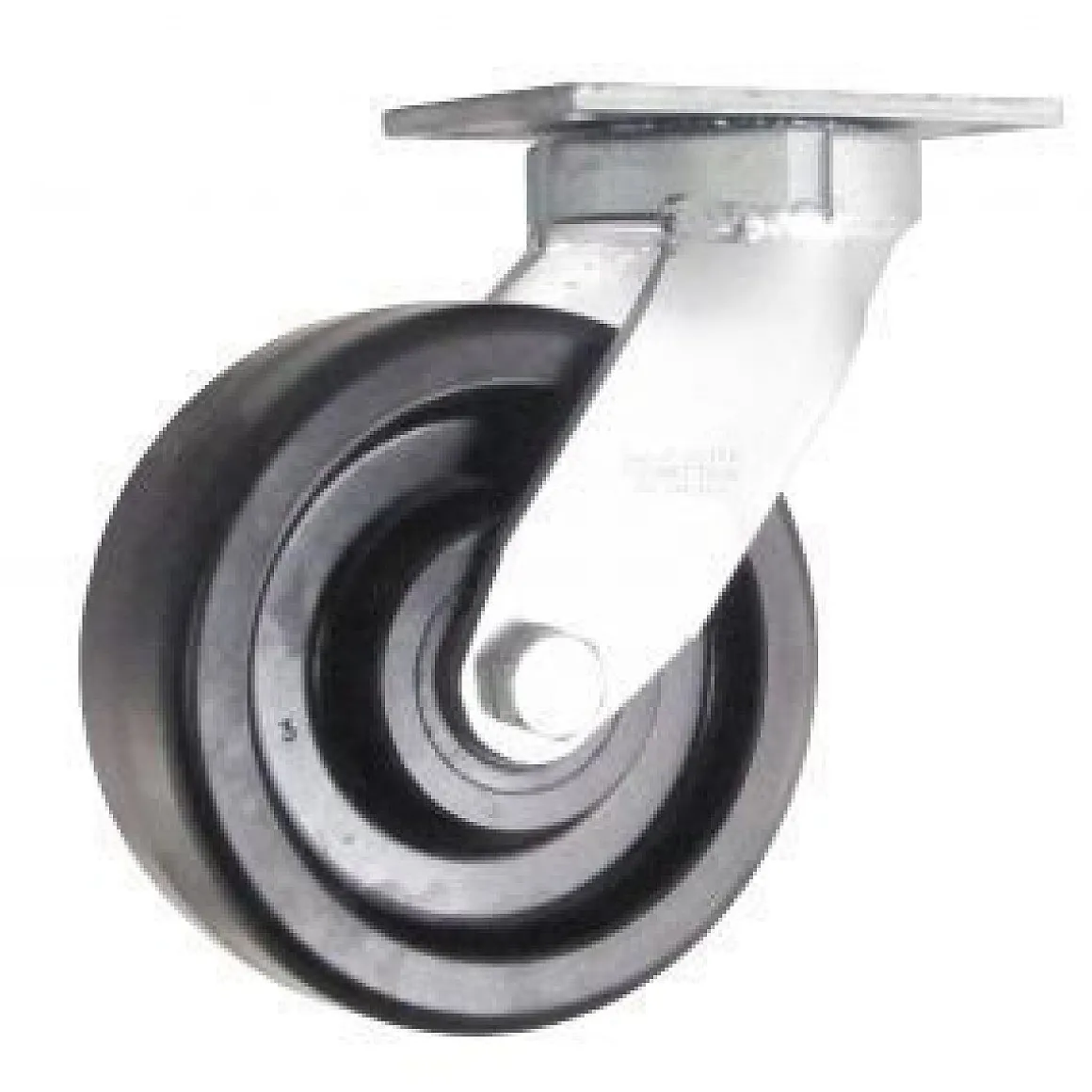

10″ Kingpinless Phenolic Swivel Caster

• Wheel Diameter

  10″

• Wheel Width

  1/2″

• Overall Height

  11-1/2″

• Weight Capacity

  3,000 lbs.

• Color

  Black

• Wheel Configuration

  Single Wheel

• Tread Style

  Flat Tread

• Wheel Material

  Phenolic

• Caster Type

  Kingpinless Swivel

• Mounting Type

  Top Plate

• Top Plate

  4-1/2″ x 6-1/4″

• Top Plate Bolt Hole Pattern

  2-7/16″ x 4-15/16″ slotted to 3-3/8″ x 5-1/4″

• Mounting Bolt Size

  1/2″

• Lead Time to Ship

  3-5 Business Days

• Swivel Radius

  7.5

• Axle Type

  Zirc Axle

• Durometer

  90 Shore D (+/- 5)

• Fork Finish

  Zinc Plated

• Temperature Range

  -50 to +250 F

• Application

  Manual Push/Pull

• Environment

  Indoor

• Floor Type

  Indoor

• Industry

  Scaffolds, Warehouse

• Noise Reduction

  No

• Anti Static

  No

• Dust Cap

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  19.5 lbs

You’re viewing caster SKU CCARMOR-1030S-379

This 10″ x 3″ Kingpinless Phenolic Swivel Caster offers high weight capacities, and easy roll ability on clean, debris-free floors. Featuring weight capacities of 300 to 8,000 pounds per wheel, the 90 Shore D wheel is made from phenolic resin mixed with macerated canvas and has an operating temperature range of -50° F to +250° F. While resistant to oil, grease, and solvents, phenolic wheels become sponges to liquids when they are chipped or damaged, so this wheel is not recommended for applications which operate where water is present.

For more info, check out Caster Wheel Types.

Kingpinless caster rigs are different from standard kingpin caster rigs in that the swivel section is held together without a rivet or nut and bolt kingpin. Kingpinless caster rigs are held together by a single row of ball bearings that are contained by a full contact interlocking swivel raceway design. Kingpinless casters are ideal for towing, conveyor, maintenance/utility carts, Towlines, drag lines and more robust applications seen in industrial environments.

For more info, check out Caster Rig Types.
