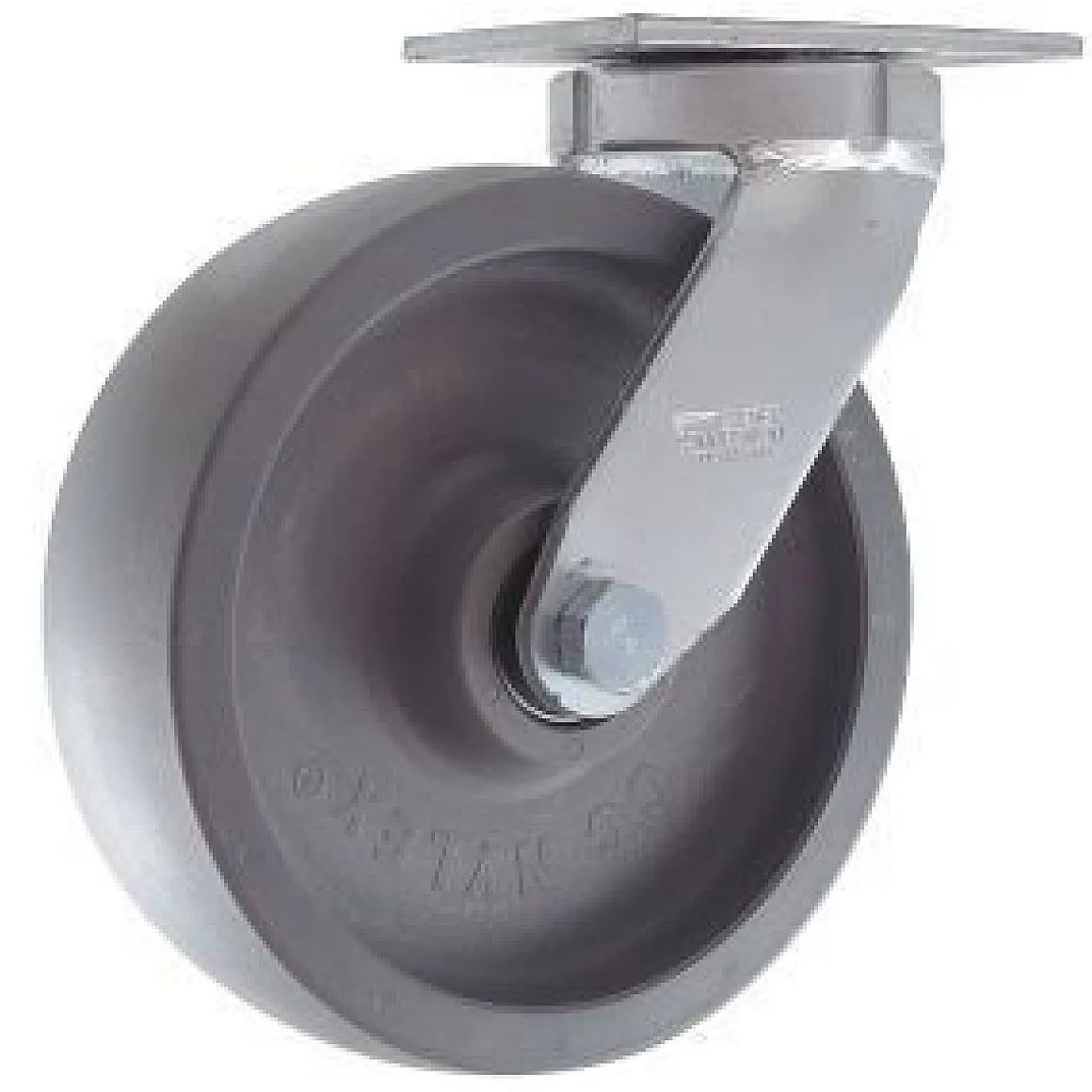

10″ CC Nylex Kingpinless Swivel Caster

• Wheel Diameter

  10″

• Wheel Width

  3″

• Overall Height

  11-1/2″

• Weight Capacity

  3,500 lbs.

• Wheel Brand

  CC Nylex – Caster Connection

• Color

  Gray

• Wheel Configuration

  Single Wheel

• Tread Style

  Crown Tread

• Wheel Material

  Nylon

• Bearing Type

  6205-RS Ball Bearing

• Core Material

  Nylon

• Caster Type

  Kingpinless Swivel

• Mounting Type

  Top Plate

• Top Plate

  4-1/2″ x 6-1/4″

• Top Plate Bolt Hole Pattern

  2-7/16″ x 4-15/16″ slotted to 3-3/8″ x 5-1/4″

• Mounting Bolt Size

  1/2″

• Lead Time to Ship

  3-5 Business Days

• Swivel Radius

  8-1/2″

• Axle Type

  Solid Axle

• Alternate SKU

  CCNYLEX-1030S-KP, CC-6130-010300-40-T2

• Durometer

  74 Shore D (+/- 5)

• Fork Finish

  Zinc Plated

• Temperature Range

  -25 to +225 F

• Application

  Manual Push/Pull, Ergonomic Concerns

• Environment

  Clean, Indoor, Limited Space for Maneuverability, Safety Necessary, Steam, Push/Pull Reduction, Safety, Chemicals Present

• Floor Type

  Varied-Indoor

• Industry

  Aerospace, Automotive, Biotechnology, Food Manufacturing, Healthcare, Industrial/Mechanical Engineering, Manufacturing, Material Handling, Technology, Utilities, Electrical/Electronic manufacturing

• Noise Reduction

  No

• Anti Static

  No

• Dust Cap

  No

• Ship Weight

  15.56 lbs

The 10″ x 3″ CC Nylex wheel and CC Alpha kingpinless swivel caster rig is a great choice for easily moving and carrying very heavy weight loads. Providing impact absorption and sheer strength components without breakdown, the CC Nylex has an outstanding ability to roll with ease. Its slight crown and hard tread design grant users boundless mobility and performs almost exclusively maintenance-free.

The benefits of the CC Nylex include:

• Ability to handle heavy weight loads without breakdown
• Impressive impact absorption
• Low push-pull force required for movement
• Smooth maneuverability with little to no interruption
• Resistance to organic diluters, including most cleaning & chemical solutions

Kingpinless caster rigs are different from standard kingpin caster rigs in that the swivel section is held together without a rivet or nut and bolt kingpin. Kingpinless caster rigs are held together by a single row of ball bearings that are contained by a full contact interlocking swivel raceway design. Kingpinless casters are ideal for towing, conveyor, maintenance/utility carts, Towlines, drag lines and more robust applications seen in industrial environments.

For more info, check out Caster Rig Types.
