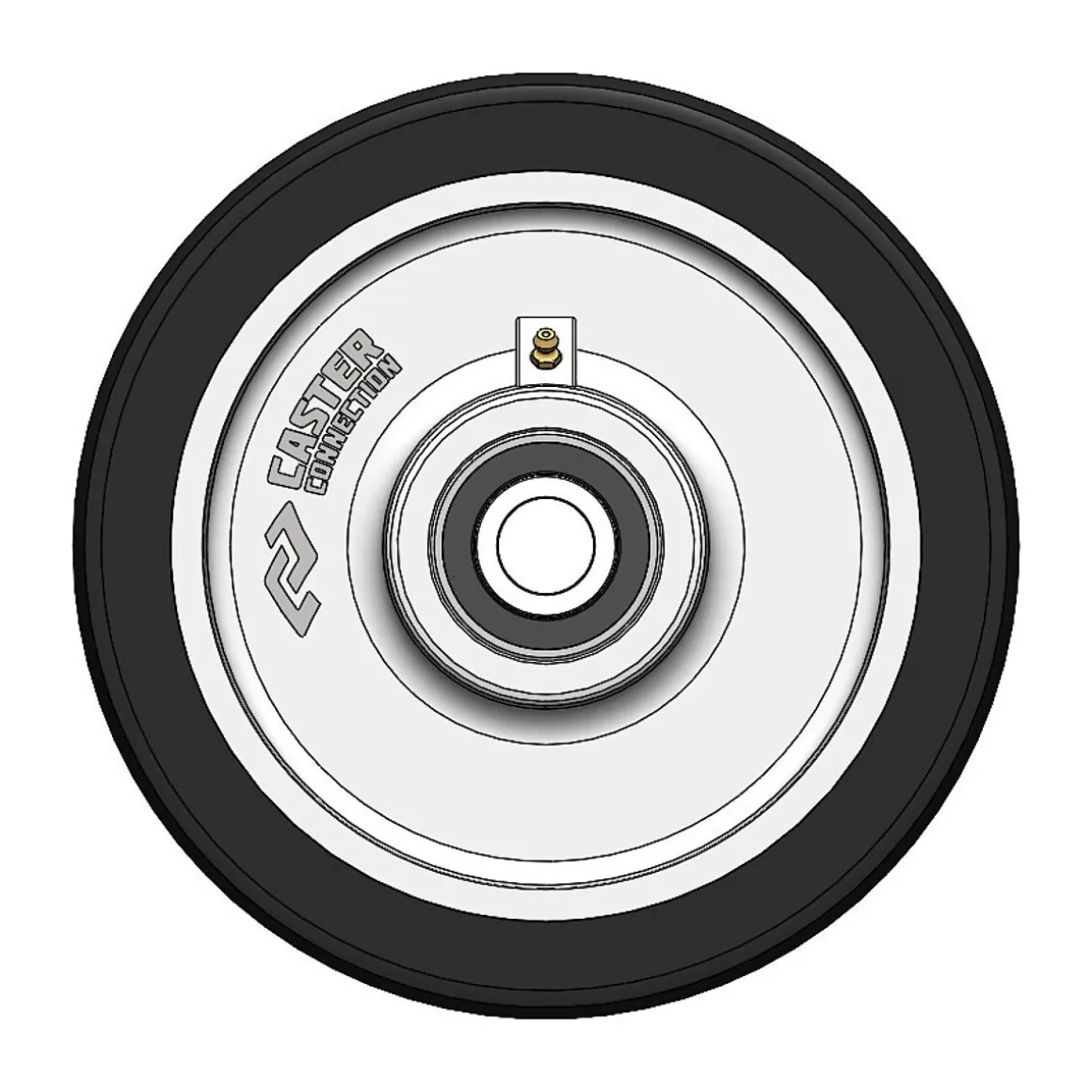

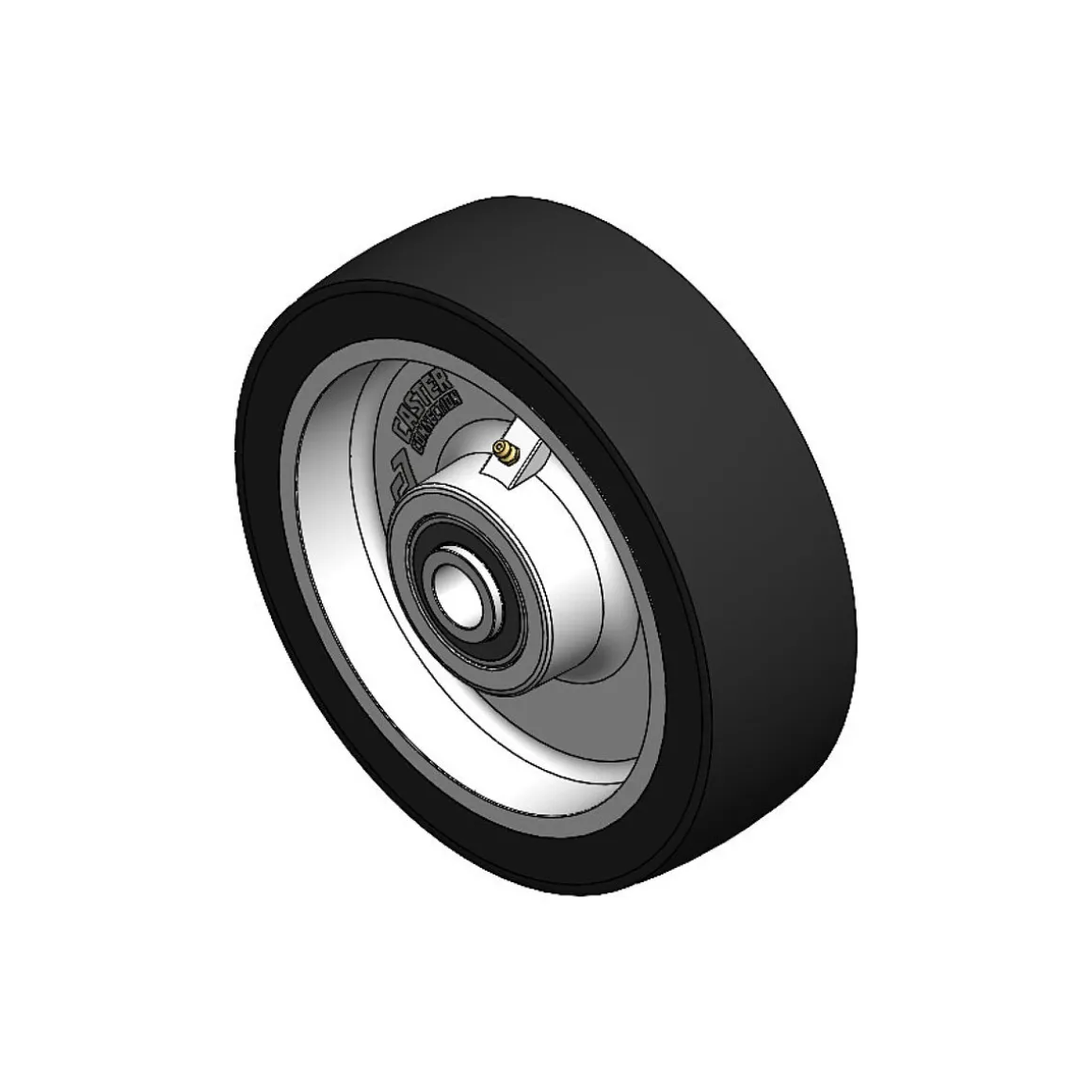

10″ CC Dynamo (95A) Heavy Duty Wheel with Top Hats

• Wheel Diameter

  10″

• Wheel Width

  3″

• Weight Capacity

  5,000 lbs.

• Brand

  CC Dynamo 95A – Caster Connection

• Color

  Black

• Wheel Material

  Polyurethane

• Core Material

  Cast Iron

• Bore Size

  1″

• Bearing Type

  6206-RS Ball Bearing

• Hub Length

  3-5/8″

• Lead time to Ship

  3-5 Business Days

• Durometer

  95 Shore A (+/- 3)

• Application

  Manual Push/Pull, Ergonomic Concerns

• Environment

  Indoor, Outdoor

• Industry

  Automotive, Load Banks, Modular Home Building, Heavy Industrial Manufacturing

• Ship Weight

  20.8 lbs

WC-95A-010300-40-ID08 is a 10″ CC Dynamo (95A) Heavy Duty Wheel with Top Hats a featuring a weight capacity of 5,000 lbs.

Quiet Control and Confident Carrying

CC Dynamo 95A uses a 95 Shore A polyurethane tread that is firm enough for heavy-duty towing yet slightly softer than the 70 Shore D version, allowing a small amount of compression. This subtle give helps dampen vibration and reduce harsh impact while maintaining the strength and stability needed for automated vehicles and tugger systems. The tread protects sealed or coated floors from damage while supporting demanding powered transport. CC Dynamo 95A delivers the right balance of load capacity, controlled movement, and ride quality for applications where durability and consistency are critical.

Built for Demanding Powered Transport

Available in 6″, 8″, 10″, and 12″ diameters with a 3″ width, CC Dynamo 95A is built for the weight and stress of powered towing, AGVs, AMRs, and more.

Each wheel size is rated for the following maximum loads:

• 6″ x 3″: 2,500 lbs
• 8″x 3″: 3,600 lbs
• 10″ x 3″: 5,000 lbs
• 12″ x 3″: 7,000 lbs

These options give engineers and operations teams the flexibility to match wheel size and capacity to their specific equipment and transport systems. CC Dynamo 95A pairs seamlessly with premium rig options such as the CC Brawn kingpinless rig and the CC Forge forged kingpin rig, while the 6″ size uses the CC Armor rig to maintain proper clearance and strength. Directional locks, floor locks, and face contact brakes are fully compatible for added control in automated and tugger-driven systems.
