S-WH-4FS

• Wheel Diameter

  4″

• Wheel Width

  1-1/2″

• Overall Height

  5-5/8″

• Weight Capacity

  1,400 lbs.

• Wheel Brand

  Hamilton

• Color

  Silver

• Wheel Configuration

  Single Wheel

• Tread Style

  Flat Tread

• Wheel Material

  Forged Steel

• Bearing Type

  Roller Bearing

• Caster Type

  Kingpin Swivel

• Mounting Type

  Top Plate

• Top Plate

  4″ x 5″

• Top Plate Bolt Hole Pattern

  2-5/8″ x 3-5/8″ slotted to 3″ x 3″

• Mounting Bolt Size

  3/8″

• Lead Time to Ship

  Varies based on supplier availability

• Axle Type

  Solid Axle

• Durometer

  1045 Steel

• Fork Finish

  Gray Powder Coated

• Temperature Range

  -40 to +320 F

• Noise Reduction

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  12 lbs

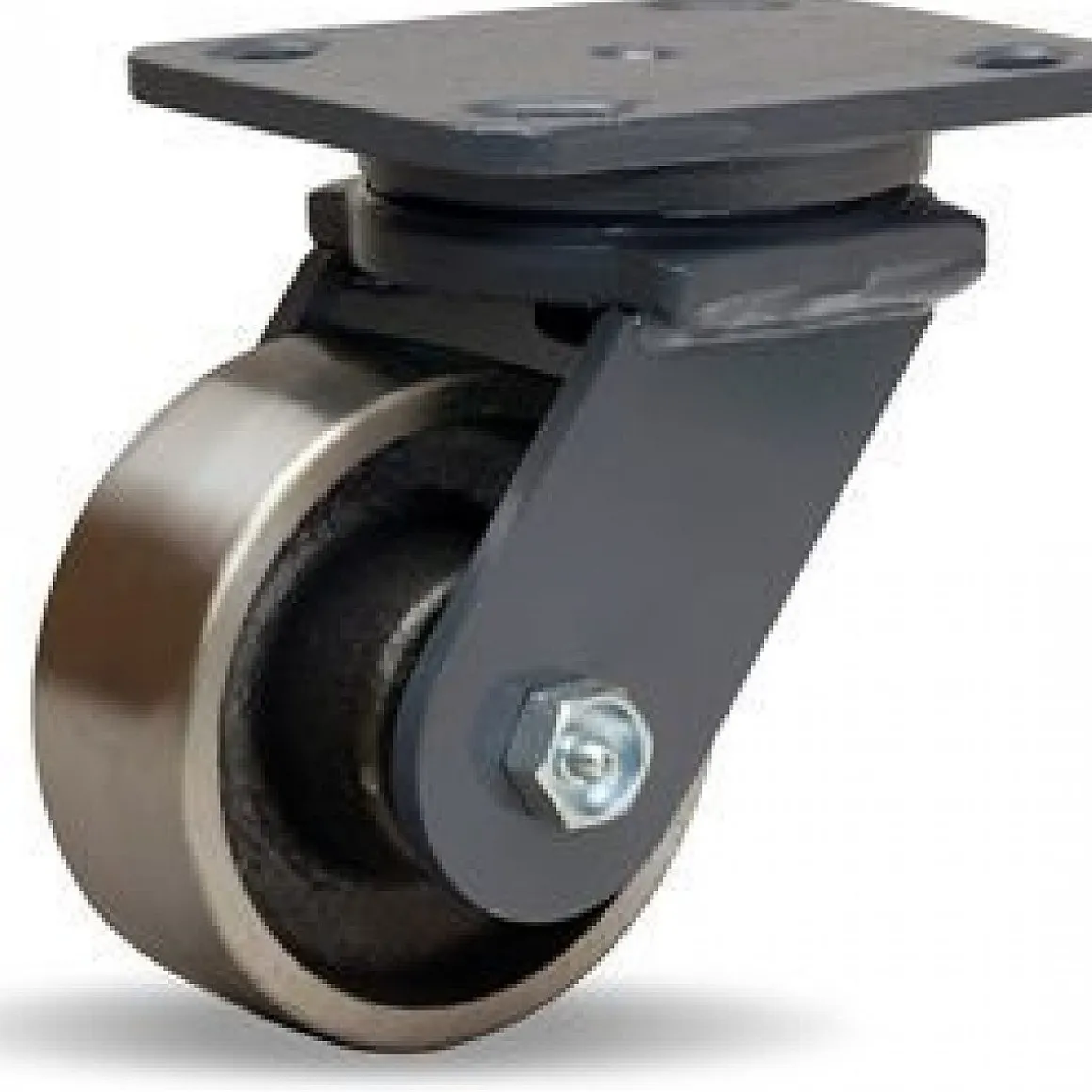

You’re viewing caster SKU S-WH-4FS This 4″ x 1-1/2″ Silver Hamilton Kingpin Swivel Caster has a weight capacity of 1,400 lbs. per caster. This product has an overall height of 5-5/8″. Additional product specs can be found on the Specifications tab of this product page.
