S-MD-124SYT

• Wheel Diameter

  12″

• Wheel Width

  4″

• Overall Height

  15-1/2″

• Weight Capacity

  6,000 lbs.

• Wheel Brand

  Hamilton

• Color

  Blue

• Wheel Configuration

  Single Wheel

• Tread Style

  Flat Tread

• Wheel Material

  Polyurethane

• Bearing Type

  Tapered Roller Bearing

• Core Material

  Drop-Forged Steel

• Caster Type

  Kingpin Swivel

• Mounting Type

  Top Plate

• Top Plate

  8-1/2″ x 8-1/2″

• Top Plate Bolt Hole Pattern

  7″ x 7″

• Mounting Bolt Size

  11/16″

• Lead Time to Ship

  Varies based on supplier availability

• Axle Type

  Solid Axle

• Durometer

  90-95 Shore A

• Fork Finish

  Gray Powder Coated

• Temperature Range

  -50 to +200 F Intermittent, 0 to +180 Continuous

• Noise Reduction

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  103 lbs

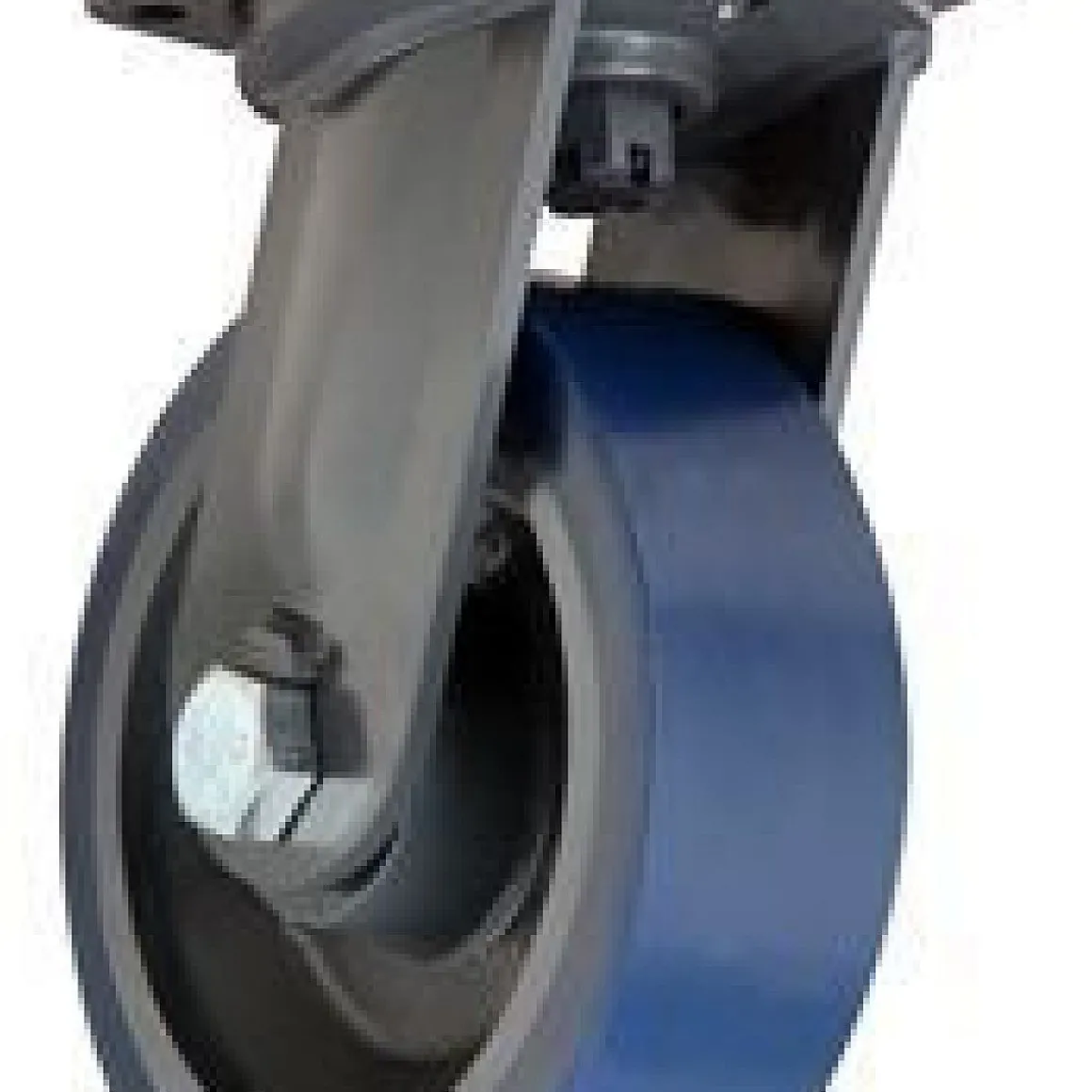

You’re viewing caster SKU S-MD-124SYT This 12″ x 4″ Blue Hamilton Kingpin Swivel Caster has a weight capacity of 6,000 lbs. per caster. This product has an overall height of 15-1/2″. Additional product specs can be found on the Specifications tab of this product page.
