S-HS-6DB

• Wheel Diameter

  6″

• Wheel Width

  2″

• Overall Height

  7-3/4″

• Weight Capacity

  1,200 lbs.

• Wheel Brand

  Hamilton

• Color

  Green

• Wheel Configuration

  Single Wheel

• Tread Style

  Flat Tread

• Wheel Material

  Polyurethane

• Bearing Type

  Sealed Precision Ball Bearing

• Core Material

  Cast Iron

• Caster Type

  Kingpin Swivel

• Mounting Type

  Top Plate

• Top Plate

  4-1/2″ x 6-1/2″

• Top Plate Bolt Hole Pattern

  2-7/16″ x 4-15/16″ slotted to 3-3/8″ x 5-1/4″

• Mounting Bolt Size

  1/2″

• Lead Time to Ship

  Varies based on supplier availability

• Axle Type

  Solid Axle

• Durometer

  95 Shore A

• Fork Finish

  Crimson Red

• Temperature Range

  -50 to +200 F Intermittent, 0 to +180 F Continuous

• Noise Reduction

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  17 lbs

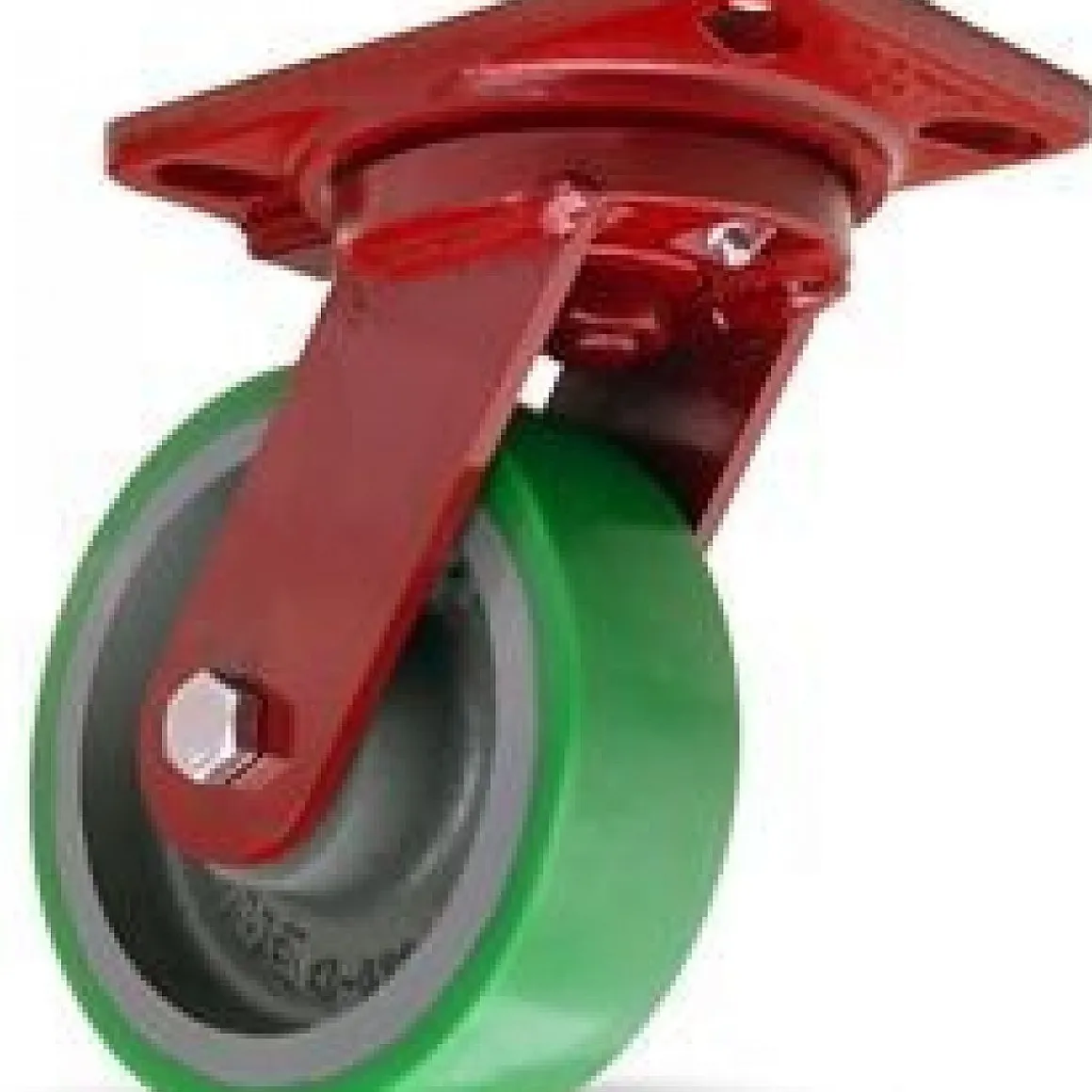

You’re viewing caster SKU S-HS-6DB This 6″ x 2″ Green Hamilton Kingpin Swivel Caster has a weight capacity of 1,200 lbs. per caster. This product has an overall height of 7-3/4″. Product specs (including lead time) can be found on the Specifications tab of this page.
