S-H525-HMB

• Wheel Diameter

  5″

• Wheel Width

  2″

• Overall Height

  6-1/2″

• Weight Capacity

  720 lbs.

• Wheel Brand

  Hamilton

• Color

  Silver

• Wheel Configuration

  Single Wheel

• Tread Style

  Crown Tread

• Wheel Material

  Cast Iron

• Bearing Type

  Stainless Steel Ball Bearings

• Caster Type

  Kingpin Swivel

• Mounting Type

  Top Plate

• Top Plate

  4″ x 4-1/2″

• Top Plate Bolt Hole Pattern

  2-5/8″ x 3-5/8″ slotted to 3″ x 3″

• Mounting Bolt Size

  3/8″

• Lead Time to Ship

  Varies based on supplier availability

• Temperature Range

  -22 to +750 F

• Environment

  High Heat

• Noise Reduction

  No

• Anti Static

  No

• Dust Cap

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  11 lbs

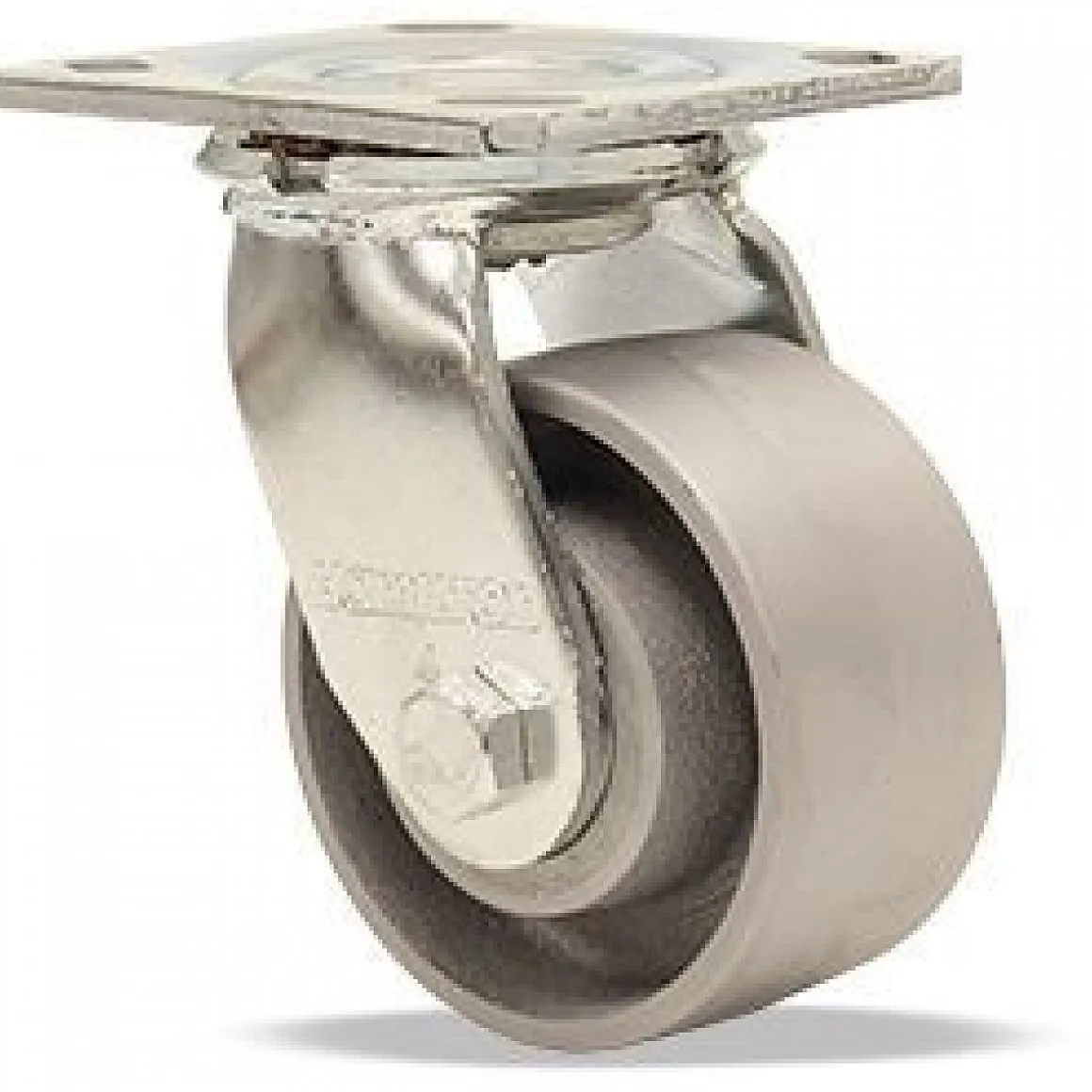

You’re viewing caster SKU S-H525-HMB This 5″ x 2″ Silver Hamilton Kingpin Swivel Caster has a weight capacity of 720 lbs. per caster. This product has an overall height of 6-1/2″. Additional product specs can be found on the Specifications tab of this product page.
