S-H5242-HWRB

• Wheel Diameter

  4″

• Wheel Width

  1-3/8″

• Overall Height

  5-5/8″

• Weight Capacity

  520 lbs.

• Wheel Brand

  Hamilton

• Color

  White

• Wheel Configuration

  Dual Wheel

• Tread Style

  Crown Tread

• Wheel Material

  Elastic Rubber

• Bearing Type

  Stainless Steel Ball Bearings

• Core Material

  Nylon

• Caster Type

  Kingpin Swivel

• Mounting Type

  Top Plate

• Top Plate

  4″ x 4-1/2″

• Top Plate Bolt Hole Pattern

  2-5/8″ x 3-5/8″ slotted to 3″ x 3″

• Mounting Bolt Size

  3/8″

• Lead Time to Ship

  Varies based on supplier availability

• Durometer

  72 Shore A

• Temperature Range

  -40 to +535 F Continuous, up to +572 F Intermittent

• Environment

  High Heat

• Noise Reduction

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  8 lbs

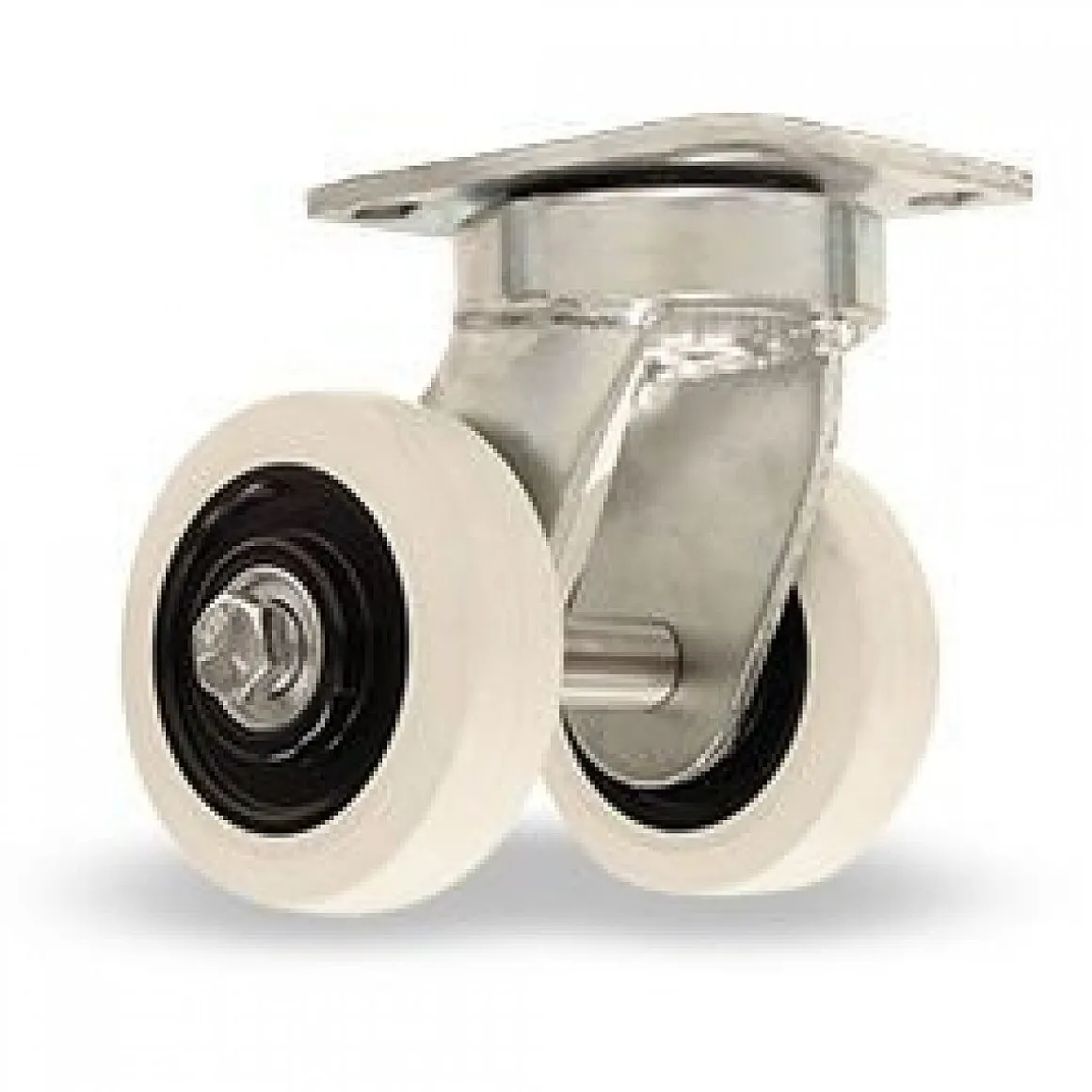

You’re viewing caster SKU S-H5242-HWRB This 4″ x 1-3/8″ White Hamilton Kingpin Swivel Caster has a weight capacity of 520 lbs. per caster. This product has an overall height of 5-5/8″. Product specs (including lead time) can be found on the Specifications tab of this page.
