S-ES-5DH

• Wheel Diameter

  5″

• Wheel Width

  2-1/2″

• Overall Height

  7-1/4″

• Weight Capacity

  1,300 lbs.

• Wheel Brand

  Hamilton

• Color

  Green

• Wheel Configuration

  Single Wheel

• Tread Style

  Crown Tread

• Wheel Material

  Polyurethane

• Bearing Type

  Roller Bearing

• Core Material

  Iron

• Caster Type

  Kingpin Swivel

• Mounting Type

  Top Plate

• Top Plate

  4-1/2″ x 6-1/2″

• Top Plate Bolt Hole Pattern

  2-7/16″ x 4-15/16″ slotted to 3-3/8″ x 5-1/4″

• Mounting Bolt Size

  1/2″

• Lead Time to Ship

  Varies based on supplier availability

• Durometer

  90-95 Shore A

• Fork Finish

  Gray Powder Coated

• Application

  Manual Push/Pull

• Industry

  Aerospace, Design, Engineering, Machine Shop, Manufacturing, Metal Fabrication

• Noise Reduction

  No

• Anti Static

  No

• Dust Cap

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  17 lbs

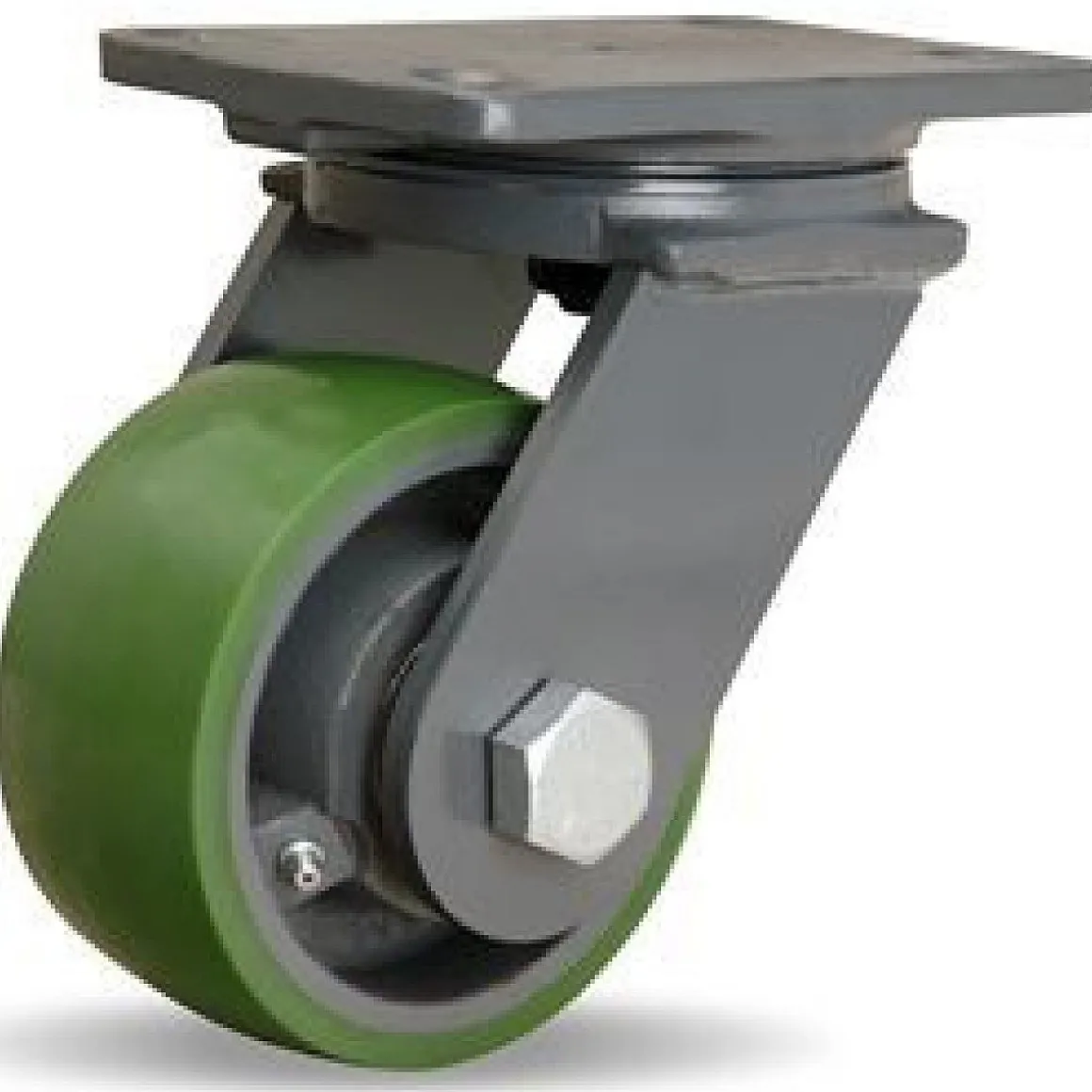

You’re viewing caster SKU S-ES-5DH This 5″ x 2-1/2″ Green Hamilton Kingpin Swivel Caster has a weight capacity of 1,300 lbs. per caster. This product has an overall height of 7-1/4″.
