S-EPSD-104FVT

• Wheel Diameter

  10″

• Wheel Width

  4″

• Overall Height

  12-1/2″

• Weight Capacity

  7,500 lbs.

• Wheel Brand

  Hamilton

• Color

  Red

• Wheel Configuration

  Single Wheel

• Tread Style

  V-Groove

• Wheel Material

  Forged Steel

• Bearing Type

  Tapered Roller Bearing

• Caster Type

  Kingpin Swivel

• Mounting Type

  Top Plate

• Top Plate

  6-1/2″ x 7-1/2″

• Top Plate Bolt Hole Pattern

  3-3/8″ x 5-1/4″ slotted to 4-1/8″ x 6-1/8″

• Mounting Bolt Size

  1/2″

• Lead Time to Ship

  Varies based on supplier availability

• Fork Finish

  Crimson Red

• Temperature Range

  -40 to +320 F

• Application

  Tracks

• Noise Reduction

  No

• Groove Width

  1-3/4″

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  52 lbs

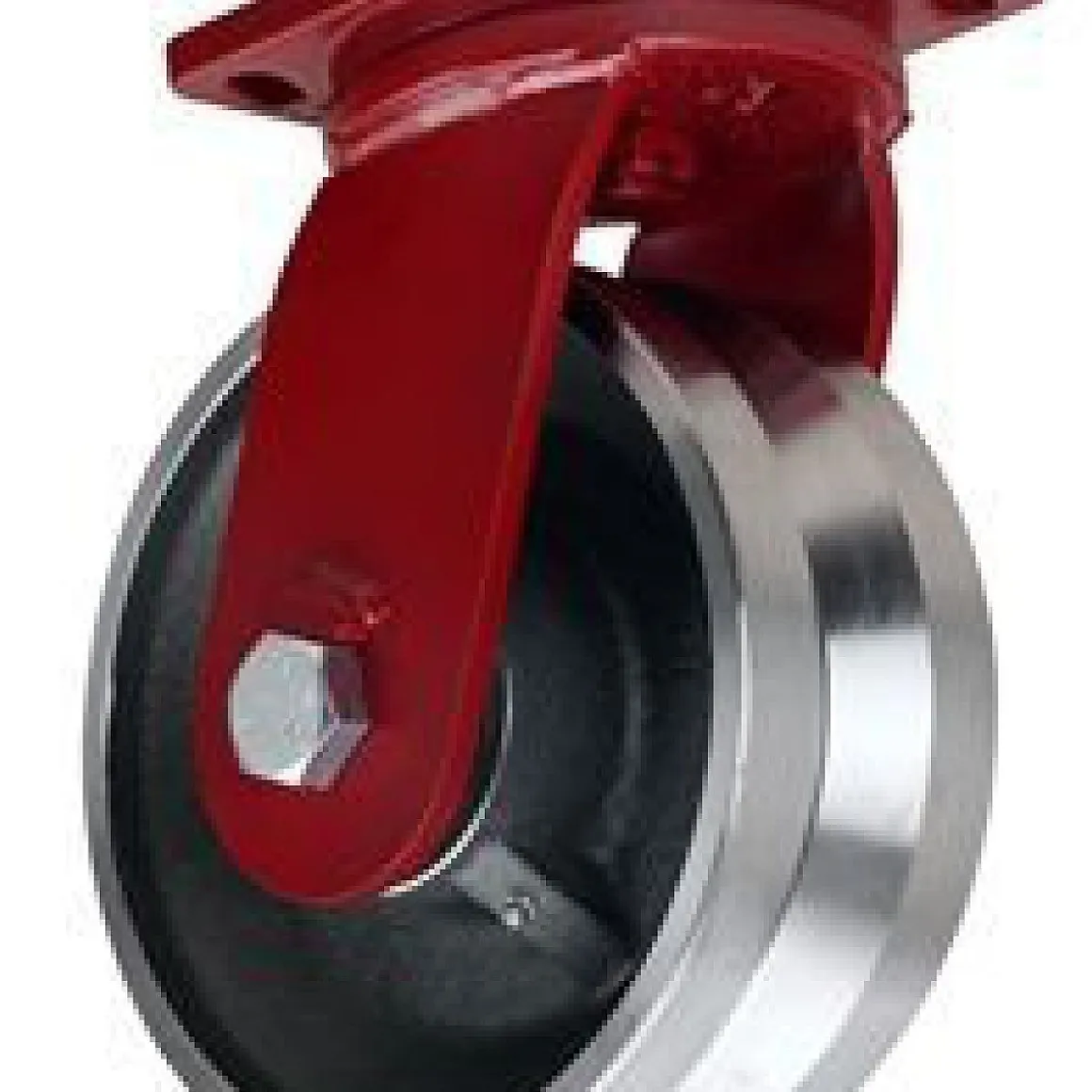

You’re viewing caster SKU S-EPSD-104FVT This 10″ x 4″ Red Hamilton Kingpin Swivel Caster has a weight capacity of 7,500 lbs. per caster. This product has an overall height of 12-1/2″. Additional product specs can be found on the Specifications tab of this product page.
