S-CH-8PH

• Wheel Diameter

  8″

• Wheel Width

  2-1/2″

• Overall Height

  10-1/2″

• Weight Capacity

  2,000 lbs.

• Wheel Brand

  Hamilton

• Color

  Black

• Wheel Configuration

  Single Wheel

• Tread Style

  Flat Tread

• Wheel Material

  Phenolic

• Bearing Type

  Roller Bearing

• Caster Type

  Kingpin Swivel

• Mounting Type

  Top Plate

• Top Plate

  5-1/4″ x 7-1/4″

• Top Plate Bolt Hole Pattern

  3-3/8″ x 5-1/4″ slotted to 4-1/8″ x 6-1/8″

• Mounting Bolt Size

  1/2″

• Lead Time to Ship

  Varies based on supplier availability

• Axle Type

  Solid Axle

• Durometer

  90 Shore D

• Fork Finish

  Crimson Red

• Temperature Range

  -50 to +250 F

• Noise Reduction

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  24 lbs

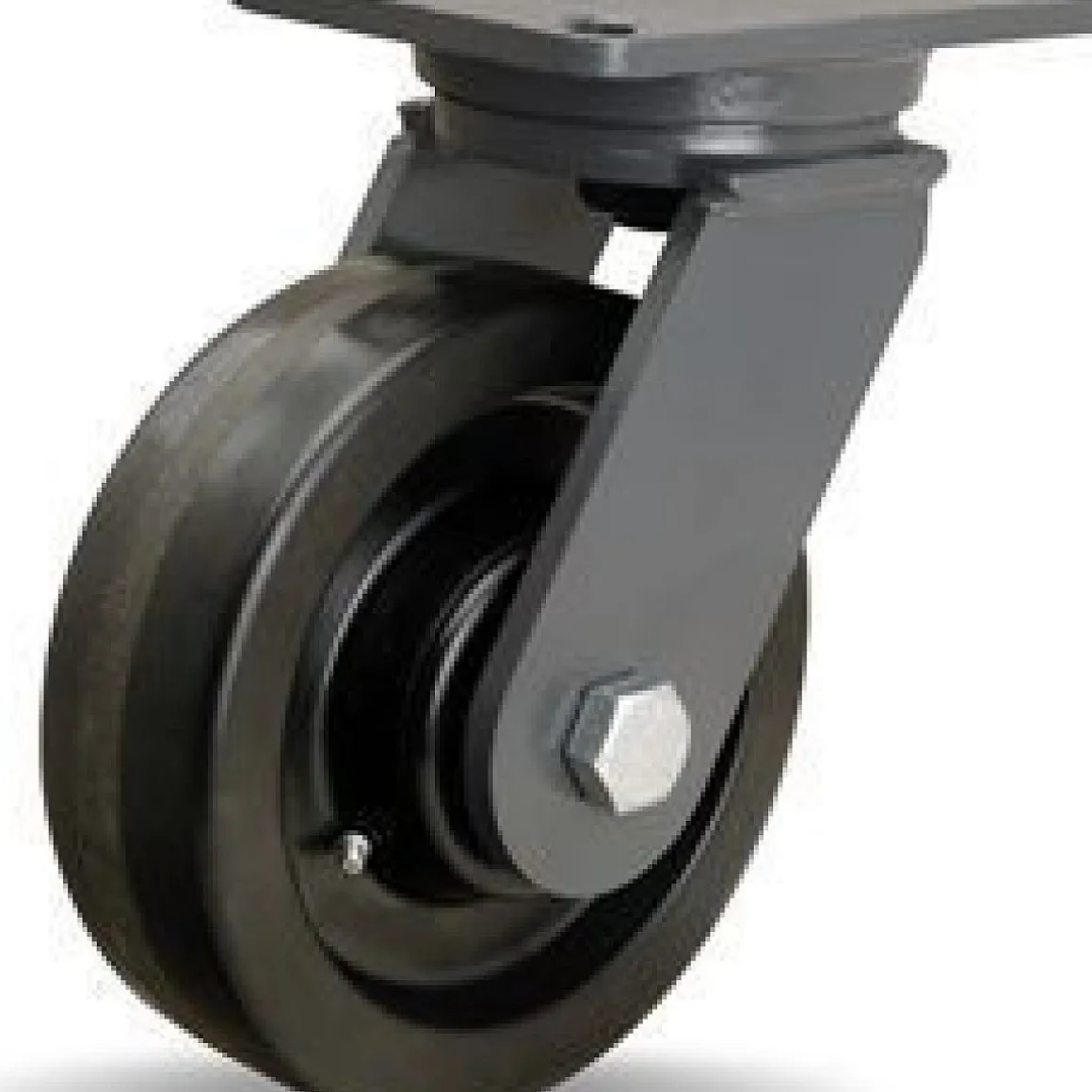

You’re viewing caster SKU S-CH-8PH This 8″ x 2-1/2″ Black Hamilton Kingpin Swivel Caster has a weight capacity of 2,000 lbs. per caster. This product has an overall height of 10-1/2″. Product specs (such as Top Plate Bolt Hole Pattern or Stem Size) can be found on the Specifications tab of this page.
