S-CH-6VT

• Wheel Diameter

  6″

• Wheel Width

  2-3/4″

• Overall Height

  8″

• Weight Capacity

  2,500 lbs.

• Wheel Brand

  Hamilton

• Color

  Red

• Wheel Configuration

  Single Wheel

• Tread Style

  V-Groove

• Wheel Material

  Cast Iron

• Bearing Type

  Tapered Roller Bearing

• Caster Type

  Kingpin Swivel

• Mounting Type

  Top Plate

• Top Plate

  5-1/4″ x 7-1/4″

• Top Plate Bolt Hole Pattern

  3-3/8″ x 5-1/4″ slotted to 4-1/8″ x 6-1/8″

• Mounting Bolt Size

  1/2″

• Lead Time to Ship

  Varies based on supplier availability

• Fork Finish

  Gray Powder Coated

• Temperature Range

  -40 to +320 F

• Application

  Tracks

• Noise Reduction

  No

• Groove Width

  7/8″

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  33 lbs

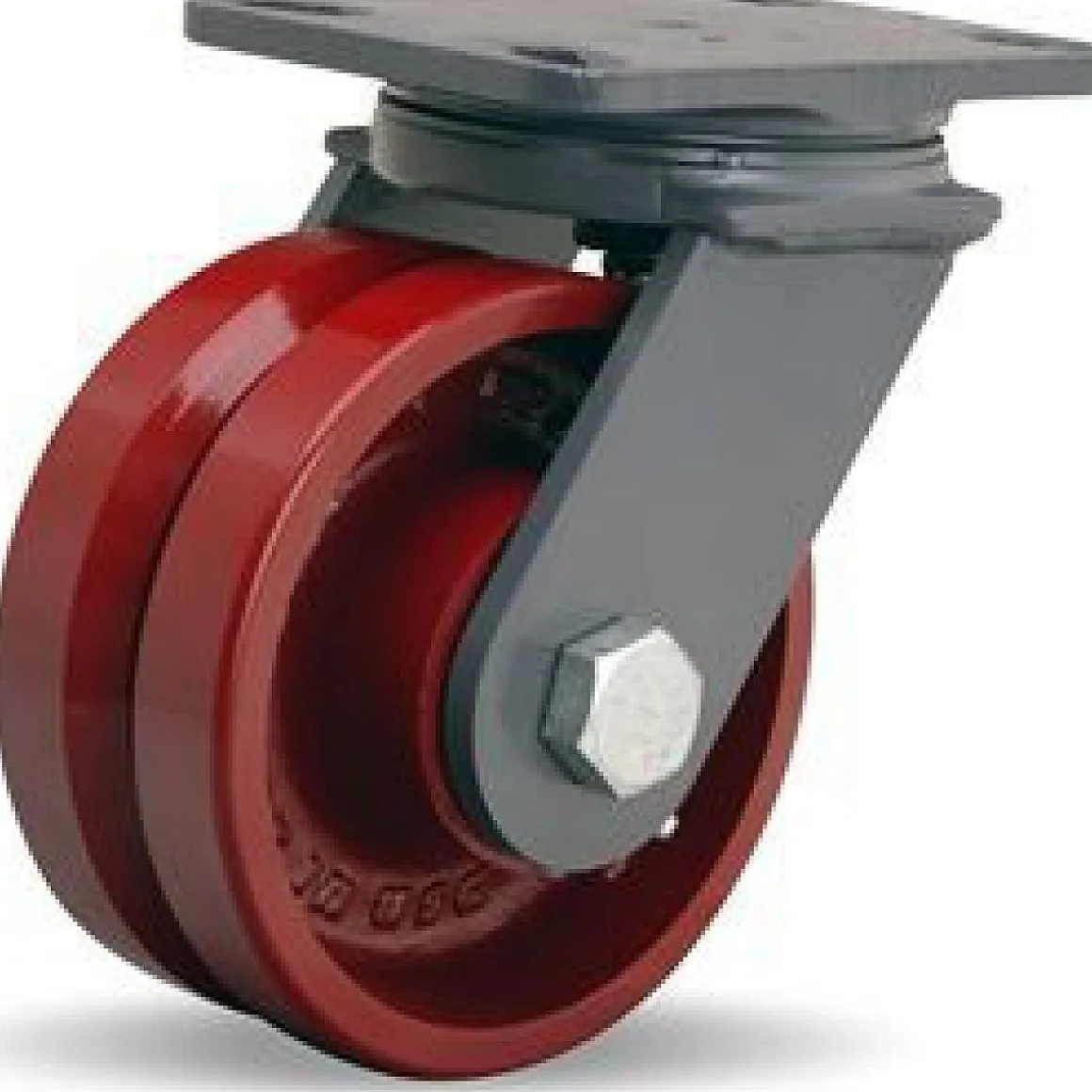

You’re viewing caster SKU S-CH-6VT This 6″ x 2-3/4″ Red Hamilton Kingpin Swivel Caster has a weight capacity of 2,500 lbs. per caster. This product has an overall height of 8″. Product specs (such as Top Plate Bolt Hole Pattern or Stem Size) can be found on the Specifications tab of this page.
