S-BC-4NF

• Wheel Diameter

  4″

• Wheel Width

  2″

• Overall Height

  5-5/8″

• Weight Capacity

  500 lbs.

• Wheel Brand

  Hamilton

• Color

  Red

• Wheel Configuration

  Single Wheel

• Tread Style

  Crown Tread

• Wheel Material

  Polyurethane

• Bearing Type

  Roller Bearing

• Core Material

  Polyolefin

• Caster Type

  Kingpin Swivel

• Mounting Type

  Top Plate

• Top Plate

  4″ x 4-1/2″

• Top Plate Bolt Hole Pattern

  2-5/8″ x 3-5/8″ slotted to 3″ x 3″

• Mounting Bolt Size

  3/8″

• Lead Time to Ship

  Varies based on supplier availability

• Axle Type

  Solid Axle

• Durometer

  90-95 Shore A

• Fork Finish

  Zinc Plated

• Temperature Range

  -50 to +180 F

• Noise Reduction

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  5 lbs

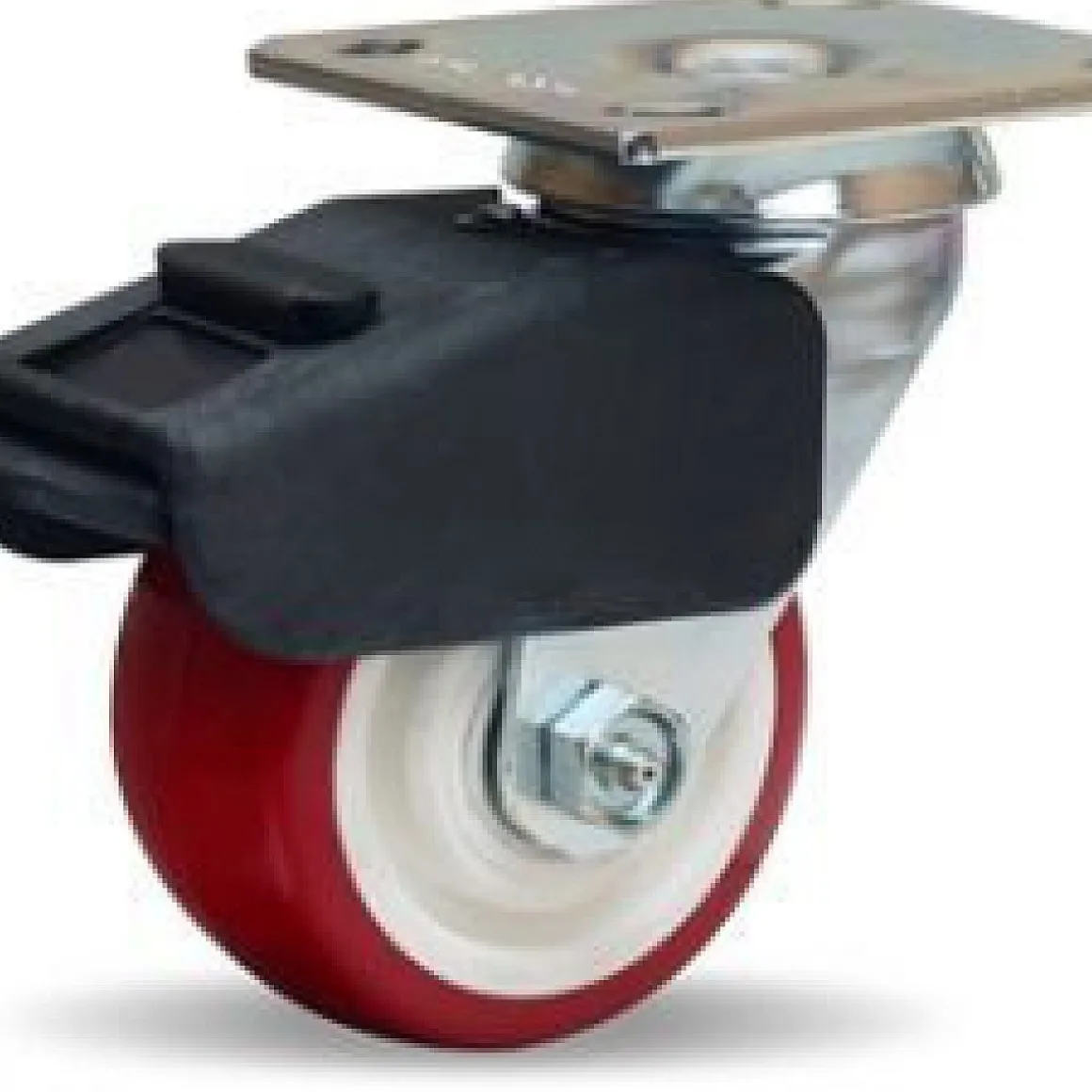

You’re viewing caster SKU S-BC-4NF This 4″ x 2″ Red Hamilton Kingpin Swivel Caster has a weight capacity of 500 lbs. per caster. This product has an overall height of 5-5/8″. Additional product specs can be found on the Specifications tab of this product page.
