S-523-D

• Wheel Diameter

  3-1/4″

• Wheel Width

  2″

• Overall Height

  5-1/4″

• Weight Capacity

  575 lbs.

• Wheel Brand

  Hamilton

• Color

  Green

• Wheel Configuration

  Single Wheel

• Tread Style

  Flat Tread

• Wheel Material

  Polyurethane

• Bearing Type

  Roller Bearing

• Core Material

  Cast Iron

• Caster Type

  Kingpin Swivel

• Mounting Type

  Top Plate

• Top Plate

  4″ x 4-1/2″

• Top Plate Bolt Hole Pattern

  2-5/8″ x 3-5/8″ slotted to 3″ x 3″

• Mounting Bolt Size

  3/8″

• Lead Time to Ship

  Varies based on supplier availability

• Axle Type

  Solid Axle

• Durometer

  95 Shore A

• Fork Finish

  Zinc Plated

• Temperature Range

  -50 to +200 F Intermittent, 0 to +180 F Continuous

• Noise Reduction

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  7 lbs

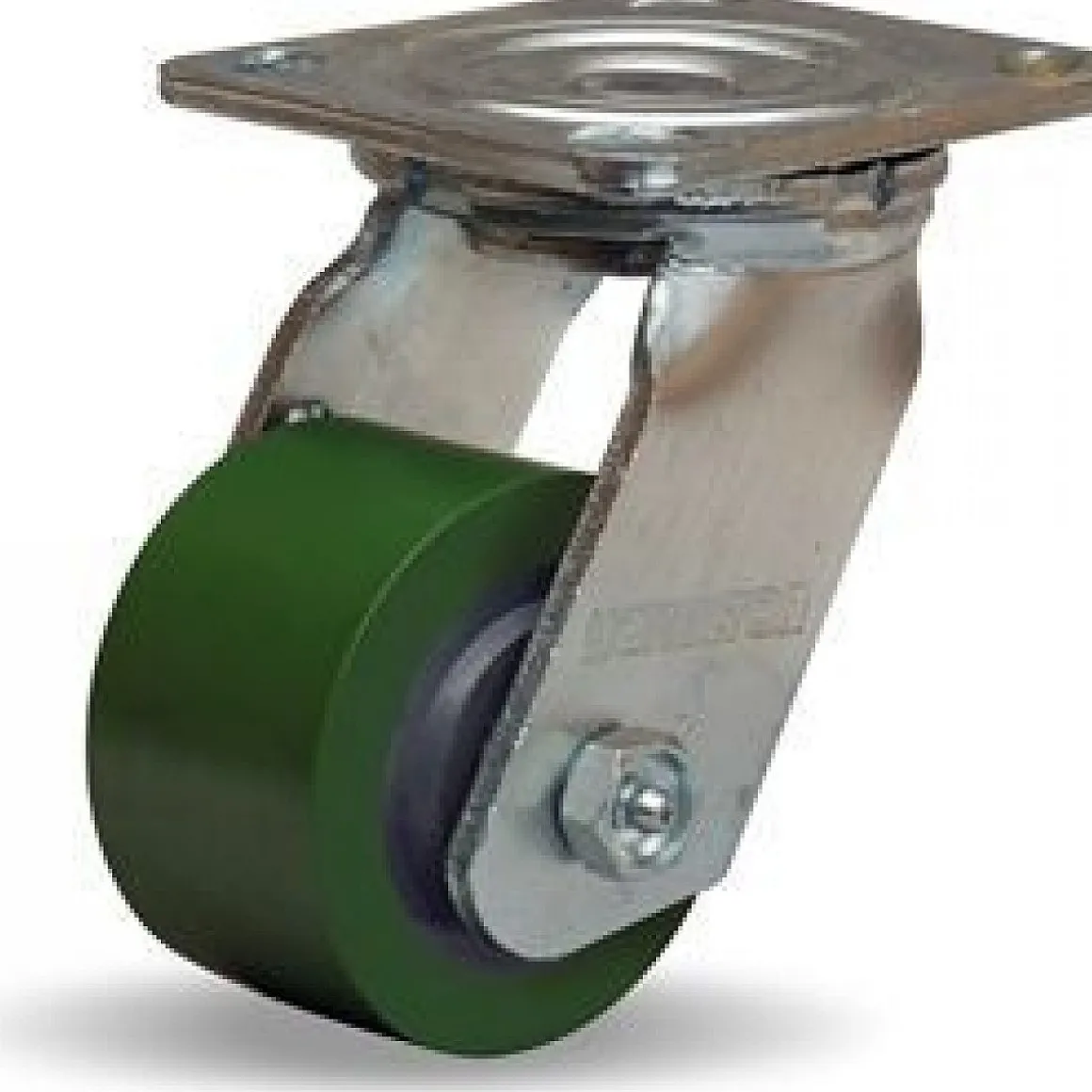

You’re viewing caster SKU S-523-D This 3-1/4″ x 2″ Green Hamilton Kingpin Swivel Caster has a weight capacity of 575 lbs. per caster. This product has an overall height of 5-1/4″. Product specs (including lead time) can be found on the Specifications tab of this page. Consult our Caster Education section or contact us for more info!
