S-341-NF

• Wheel Diameter

  4″

• Wheel Width

  1-3/8″

• Overall Height

  5″

• Weight Capacity

  300 lbs.

• Wheel Brand

  Hamilton

• Color

  Red

• Wheel Configuration

  Single Wheel

• Tread Style

  Crown Tread

• Wheel Material

  Polyurethane

• Bearing Type

  Ball Bearing

• Core Material

  Polyolefin

• Caster Type

  Kingpin Swivel

• Mounting Type

  Top Plate

• Top Plate

  2-1/2″ x 3-3/4″

• Top Plate Bolt Hole Pattern

  1-3/4″ x 3″

• Mounting Bolt Size

  5/16″

• Lead Time to Ship

  Varies based on supplier availability

• Axle Type

  Solid Axle

• Durometer

  90-95 Shore A

• Fork Finish

  Zinc Plated

• Temperature Range

  -50 to +180 F

• Noise Reduction

  No

• Ship Weight

  2.5 lbs

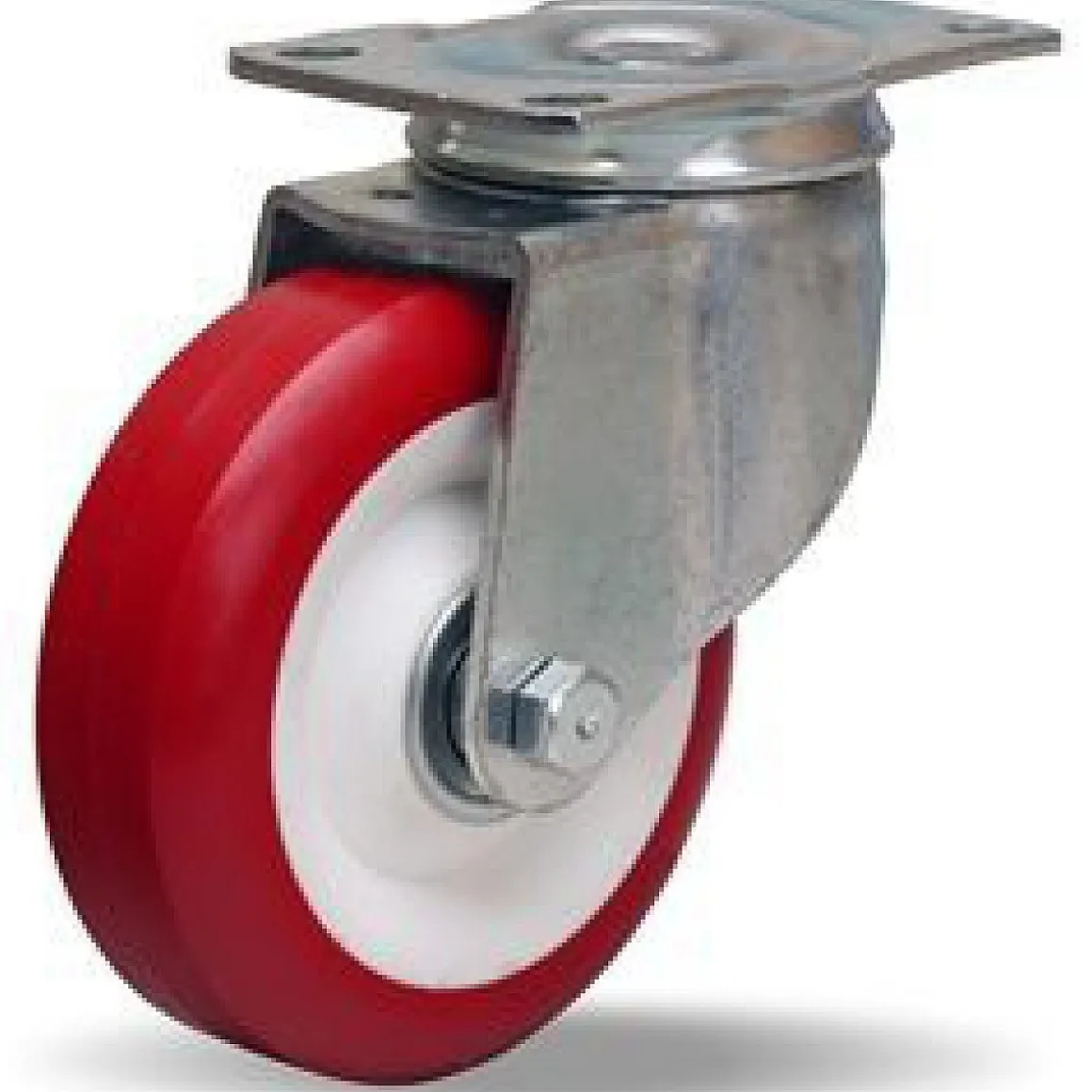

You’re viewing caster SKU S-341-NF This 4″ x 1-3/8″ Red Hamilton Kingpin Swivel Caster has a weight capacity of 300 lbs. per caster. This product has an overall height of 5″. Product specs (such as Top Plate Bolt Hole Pattern or Stem Size) can be found on the Specifications tab of this page.
