R-FM-10RH

• Wheel Diameter

  10″

• Wheel Width

  2-1/2″

• Overall Height

  11-1/2″

• Weight Capacity

  790 lbs.

• Wheel Brand

  Hamilton

• Color

  Black

• Wheel Configuration

  Single Wheel

• Tread Style

  Flat Tread

• Wheel Material

  Rubber

• Bearing Type

  Roller Bearing

• Core Material

  Cast Iron

• Caster Type

  Rigid

• Mounting Type

  Top Plate

• Top Plate

  4-1/2″ x 6-1/2″

• Top Plate Bolt Hole Pattern

  2-7/16″ x 4-15/16″ slotted to 3-3/8″ x 5-1/4″

• Mounting Bolt Size

  1/2″

• Lead Time to Ship

  Varies based on supplier availability

• Axle Type

  Solid Axle

• Durometer

  70 Shore A

• Fork Finish

  Crimson Red

• Temperature Range

  -40 to +140 F

• Application

  Manual Push/Pull

• Noise Reduction

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  24 lbs

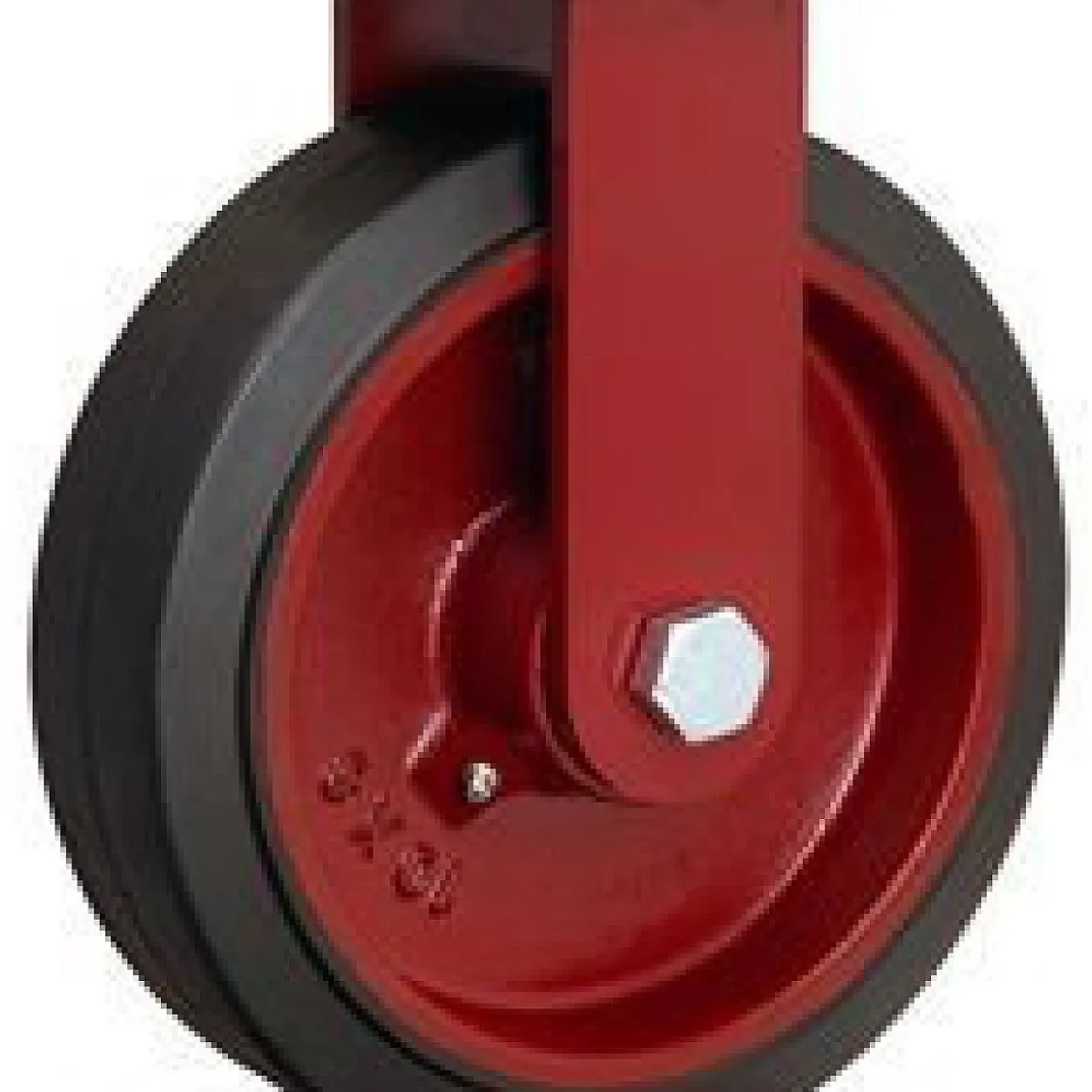

You’re viewing caster SKU R-FM-10RH This 10″ x 2-1/2″ Black Hamilton Rigid Caster has a weight capacity of 790 lbs. per caster. This product has an overall height of 11-1/2″. Additional product specs can be found on the Specifications tab of this product page.
