CCARMOR-1030S-679-7

• Wheel Diameter

  10″

• Wheel Width

  1/2″

• Overall Height

  11-1/2″

• Weight Capacity

  1,100 lbs.

• Wheel Brand

  Durable

• Color

  Black

• Wheel Configuration

  Single Wheel

• Tread Style

  Flat Tread

• Wheel Material

  Rubber

• Core Material

  Cast Iron

• Caster Type

  Kingpinless Swivel

• Mounting Type

  Top Plate

• Top Plate

  4-1/2″ x 6-1/4″

• Top Plate Bolt Hole Pattern

  2-7/16″ x 4-15/16″ slotted to 3-3/8″ x 5-1/4″

• Mounting Bolt Size

  1/2″

• Lead Time to Ship

  3-5 Business Days

• Swivel Radius

  7.5

• Axle Type

  Zirc Axle

• Durometer

  80 Shore A (+/- 5)

• Fork Finish

  Zinc Plated

• Temperature Range

  -40 to +180 F

• Application

  Manual Push/Pull

• Environment

  Varied

• Industry

  Aerospace, Automotive, Distribution, Engineering, Machine Shop, Manufacturing, Warehouse

• Noise Reduction

  No

• Anti Static

  No

• Dust Cap

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  15.4 lbs

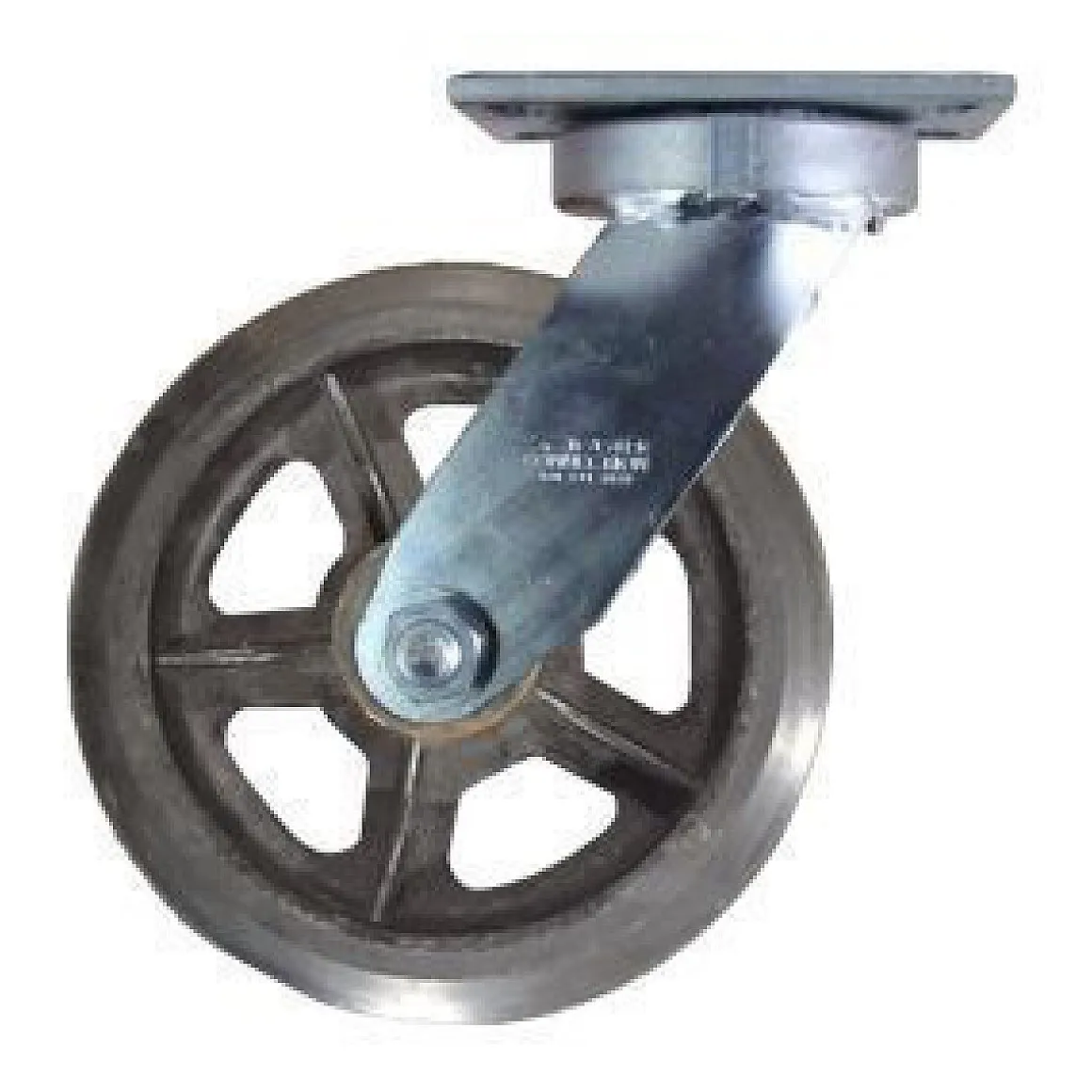

You’re viewing caster SKU CCARMOR-1030S-679-7 This 10″ x 3″ Kingpinless Rubber on Cast Iron Swivel Caster is an economically friendly option that provides decent resistance to shock and vibration, but is not recommended for environments where water or floor debris is present. It is also not recommended for delicate flooring, as it can leave marks when operated in less than ideal circumstances.Featuring a weight capacity of 1,100 lbs., the 80 Shore A black rubber is chemically bonded to a semi-steel wheel core and has an operating temperature range of -40° to +180° degrees Fahrenheit. Rubber on steel wheels provides good floor protection and quiet movement.

For more info, check out Caster Wheel Types.

Kingpinless caster rigs are different from standard kingpin caster rigs in that the swivel section is held together without a rivet or nut and bolt kingpin. Kingpinless caster rigs are held together by a single row of ball bearings that are contained by a full contact interlocking swivel raceway design. Kingpinless casters are ideal for towing, conveyor, maintenance/utility carts, Towlines, drag lines and more robust applications seen in industrial environments.

For more info, check out Caster Rig Types.
