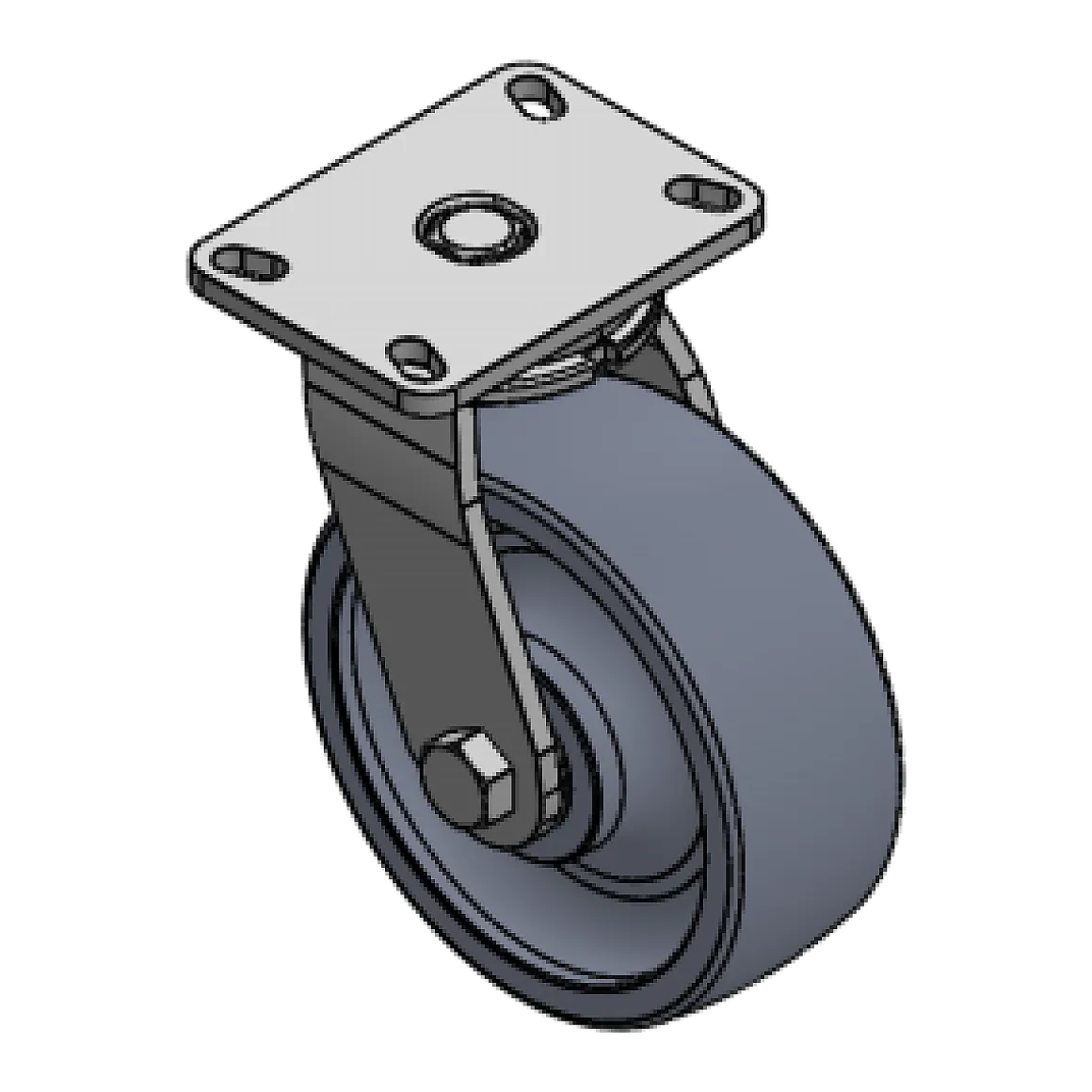

8″ X 3″ CC NYLEX SWIVEL CASTER OVERALL HEIGHT 10-1/8″

• Wheel Diameter

  8″

• Wheel Width

  3″

• Overall Height

  10-1/8″

• Weight Capacity

  3,000 lbs.

• Wheel Brand

  CC Nylex – Caster Connection

• Color

  Gray

• Wheel Configuration

  Single Wheel

• Tread Style

  Crown Tread

• Wheel Material

  Nylon

• Bearing Type

  6205-RS Ball Bearing

• Core Material

  Nylon

• Caster Type

  Kingpin Swivel

• Mounting Type

  Top Plate

• Top Plate

  4-1/2″ x 6-1/4″

• Top Plate Bolt Hole Pattern

  2-7/16″ x 4-15/16″ slotted to 3-3/8″ x 5-1/4″

• Mounting Bolt Size

  1/2″

• Lead Time to Ship

  3-5 Business Days

• Swivel Radius

  6-1/4″

• Axle Type

  Solid Axle

• Alternate SKU

  CCNYLEX-830-S, DC-5330-800300-40-T2

• Durometer

  74 Shore D (+/-5)

• Fork Finish

  Zinc Plated

• Temperature Range

  -25 to +225 F

• Application

  Manual Push/Pull

• Environment

  Clean, Indoor, Limited Space for Maneuverability, Safety Necessary, Steam, Push/Pull Reduction, Safety, Chemicals Present

• Floor Type

  Varied-Indoor

• Industry

  Aerospace, Automotive, Biotechnology, Food Manufacturing, Healthcare, Industrial/Mechanical Engineering, Manufacturing, Material Handling, Technology, Utilities, Electrical/Electronic manufacturing

• Noise Reduction

  No

• Anti Static

  No

• Dust Cap

  No

• Ship Weight

  13.93 lbs

You’re viewing caster SKU GC-0230-800300-40-T2

The 8″ x 3″ CC Nylex swivel caster is a great choice for carrying very heavy weight loads. Providing impact absorption and sheer strength components without breakdown, the CC Nylex has an outstanding ability to roll with ease. The wheel’s slight crown and hard tread design grant users boundless mobility and performs almost exclusively maintenance-free.

The benefits of the CC Nylex include:

• Ability to handle heavy weight loads without breakdown
• Impressive impact absorption
• Low push/pull force required for movement
• Smooth maneuverability with little to no interruption
• Resistance to organic diluters, including most cleaning & chemical solutions
