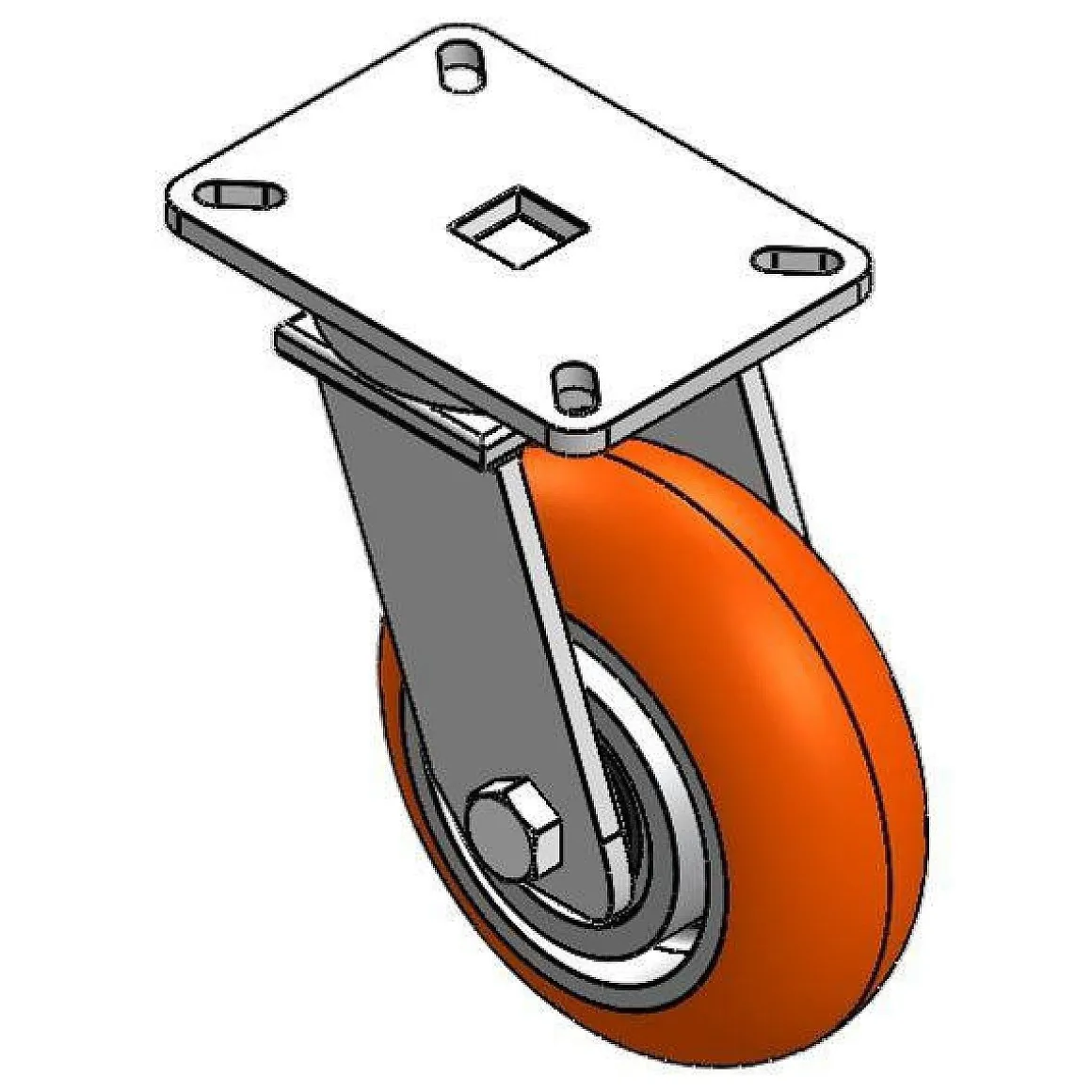

8″ X 3″ CC APEX HD SWIVEL CASTER 10-1/2 OVERALL HEIGHT

• Wheel Diameter

  8″

• Wheel Width

  3″

• Overall Height

  10-1/2″

• Weight Capacity

  2,700 lbs.

• Wheel Brand

  CC Apex HD – Caster Connection

• Color

  Orange

• Wheel Configuration

  Single Wheel

• Tread Style

  Donut Tread

• Wheel Material

  Polyurethane

• Bearing Type

  6208-RS Ball Bearing

• Core Material

  Cast Iron

• Caster Type

  Kingpin Swivel

• Mounting Type

  Top Plate

• Top Plate

  5-1/4″ x 7-1/4″

• Top Plate Bolt Hole Pattern

  3-3/8″ x 5-1/4″ slotted to 4-1/8″ x 6-1/8″

• Mounting Bolt Size

  1/2″

• Lead Time to Ship

  3-5 Business Days

• Swivel Radius

  6-7/25″

• Axle Type

  Solid Axle

• Alternate SKU

  CCAPEXHD-830-S-TP2-OH2, DC-5520-800300-40-T7

• Durometer

  87 Shore A (+/-5)

• Fork Finish

  Zinc Plated

• Temperature Range

  -25 to +180 F

• Application

  Manual Push/Pull, Towlines, Debris, Floor Protection, Safety, Ergonomic Concerns

• Environment

  Clean, Debris, Delicate Flooring, Indoor, Limited Space for Maneuverability, Low Noise Necessary, Medical, Outdoor, Safety Necessary, Thresholds, Towlines, Weld Slag and/or Metal Chips, Metal Chips, Push/Pull Reduction, Safety

• Floor Type

  Varied-Indoor

• Industry

  Aerospace, Agriculture, Automotive, Engineering, Manufacturing, Material Handling, Metal Fabrication, Industrial/Mechanical, Machinery

• Noise Reduction

  No

• Anti Static

  No

• Dust Cap

  No

• Ship Weight

  28.54 lbs

You’re viewing caster SKU DC-5520-800300-40-T7

This 8″ x 3″ CC Apex HD swivel caster supports heavier weights. Lots of casters can move heavy weight loads, and they’ve been doing it for decades. What those casters can’t do is also navigate over debris, reduce noise, protect flooring, grip and maneuver with ease, and offer the versatility for push/pull and towlines that the original CC Apex offers. This is why the CC Apex HD is such a game changer.

The CC Apex HD was a new product for 2019, with early introduction and testing through the latter half of 2018. As with all of our products, we worked with a client to solve a specific problem, based on real conditions in a real facility. This wheel flat out gets the job done when others fail, and we know you’re going to love the new CC Apex HD.

These heavy duty wheels allow you to move more weight with tremendous versatility in both towlines and manual applications. The CC Apex HD can move weight extremely well, but it also allows you to store your cargo without flat-spotting. Flat-spotting occurs when weight has been placed on one side of the wheel for an extended period of time, like when you store your cart with a full load for weeks at a time. The inherent qualities of the CC Apex HD polyurethane allow your wheel to absorb the weight as it is stored over this period of time. Try moving a flat wheel, and you’ll know immediately why the CC Apex HD wheels are so advantageous.

• Versatile caster for a wide variety of applications
• Great for towlines and manual applications
• The caster for debris and impediments
• Low maintenance and decibel output
• Preserves floors
• Handles heavier weight loads
