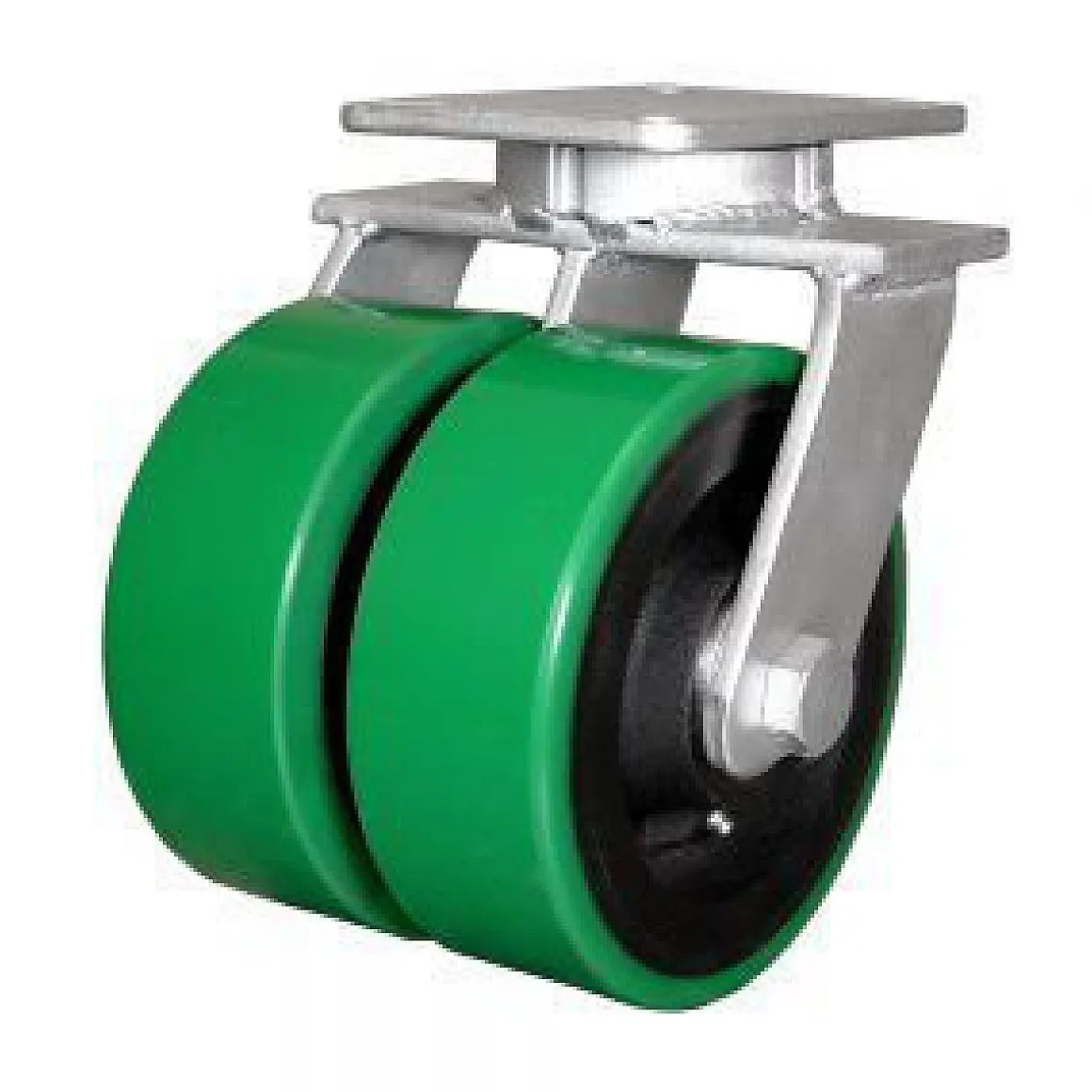

8″ Kingpinless Dual Wheel Polyurethane Swivel Caster

• Wheel Diameter

  8″

• Wheel Width

  3″

• Overall Height

  10-1/2″

• Weight Capacity

  7,000 lbs.

• Color

  Green

• Wheel Configuration

  Dual Wheel

• Tread Style

  Flat Tread

• Wheel Material

  Polyurethane

• Caster Type

  Kingpinless Swivel

• Mounting Type

  Top Plate

• Top Plate

  5-1/4″ x 7-1/4″

• Top Plate Bolt Hole Pattern

  3-3/8″ x 5-1/4″ slotted to 4-1/8″ x 6-1/8″

• Lead Time to Ship

  1-2 Weeks

• Swivel Radius

  7.625

• Axle Type

  Solid Axle

• Durometer

  50 Shore D

• Fork Finish

  Zinc Plated

• Temperature Range

  -40 to +180 F

• Application

  Manual Push/Pull

• Floor Type

  Varied-Indoor

• Industry

  Aerospace, Engineering, Manufacturing

• Noise Reduction

  No

• Anti Static

  No

• Dust Cap

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  48 lbs

You’re viewing caster SKU D2EX80LG2425YY

Kingpinless caster rigs are different from standard kingpin caster rigs in that the swivel section is held together without a rivet or nut and bolt kingpin. Kingpinless caster rigs are held together by a single row of ball bearings that are contained by a full contact interlocking swivel raceway design. Kingpinless casters are ideal for towing, conveyor, maintenance/utility carts, Towlines, drag lines and more robust applications seen in industrial environments.

For more info, check out Caster Rig Types.
